Description
DS18 12XL1500-8
The DS18 12XL1500 is a high‑performance 12‑inch XL‑series mid‑range loudspeaker designed for car audio systems, custom installations, and pro setups where power, clarity, and range matter. Available in both 4 ohm (12XL1500‑4) and 8 ohm (12XL1500‑8) impedance options, this speaker delivers 750 W RMS continuous power handling with up to 1500 W peak power, making it suitable for mids and low mid‑bass in larger audio systems.
Specifications
| Parameter |
Value |
| SKU |
12XL1500-8 |
| Nominal Diameter |
12″ / 305 mm |
| Nominal Impedance |
8 Ohm |
| RMS Power Handling |
750 W |
| Max Power Handling |
1500 W |
| Sensitivity (1w/1m) |
98.7 dB |
| Frequency Response |
45 Hz – 6.5 kHz |
| Recommended High-Pass Crossover |
60 Hz |
| Sold As |
Single |
| Grill Included |
No |
Motor Specifications
| Parameter |
Value |
| Voice Coil Diameter |
3.5″ / 89 mm |
| Voice Coil Former Material |
Kapton |
| Winding Material |
CCAW (2 Layers IN/OUT) |
| Cone Material |
Non-pressed Paper |
| Dust Cap Material |
Paper |
| Bullet Material |
N/A |
| Bullet Color/Finish |
N/A |
| Surround Material |
Cloth |
| Basket Material |
Aluminum |
| Basket Finish |
Satin Black |
| Magnet Material |
Ferrite |
| Magnet Weight |
93 Oz |
| Displacement Volume |
2.2 L / 0.09 ft³ |
Thiele & Small Parameters
| Parameter |
Value |
| Equivalent Volume |
62.7 L / 2.21 ft³ |
| Excursion (Xmax) |
4.5 mm |
| Free Air Resonance (Fs) |
54 Hz |
| Mechanical Factor (Qms) |
6.98 |
| Electrical Factor (Qes) |
0.41 |
| Total Factor (Qts) |
0.38 |
| Mechanical Mass (Mms) |
56.4 g |
| Mechanical Compliance (Cms) |
0.16 mm/N |
| BL Factor |
16.92 |
| Voice Coil Inductance (Le) |
0.12 mH |
| Cone Area (Sd) |
526.85 cm² |
| DC Resistance (Re) |
5.8 Ω |
| Mechanical Mass w/o Air (Mmd) |
57 g |
Measurements
| Parameter |
Value |

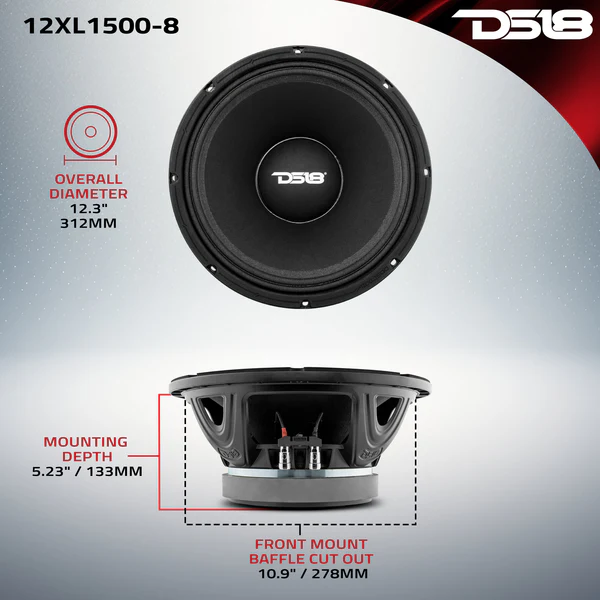

| Overall Diameter |
12.3″ / 312 mm |
| Overall Depth |
5.76″ / 146.2 mm |
| Front Mount Baffle Cutout |
10.9″ / 278 mm |
| Mounting Depth |
5.23″ / 133 mm |
| Motor Diameter |
7.48″ / 190 mm |
Product Overview
DS18 12XL1500-8
DS18’s 12XL1500-8 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.
DS18’s 12XL1500-8 stands head and shoulders above the mid-range competition. This 12-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 750W RMS and 1500W MAX these speakers are guaranteed to blow you away. The frequency response of 45Hz-6.5KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98.7 dB guarantees crystal-clear sound reproduction, even in large venues.
Crafted with precision, DS18’s 12XL1500-8 features a 3.5″ Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker’s aesthetics but also provides structural integrity. The ferrite magnet weighing in at a whopping 93 ounces ensures powerful and accurate bass responses that will leave you amazed.
Elevate your audio game with the DS18 12XL1500-8!
