Description

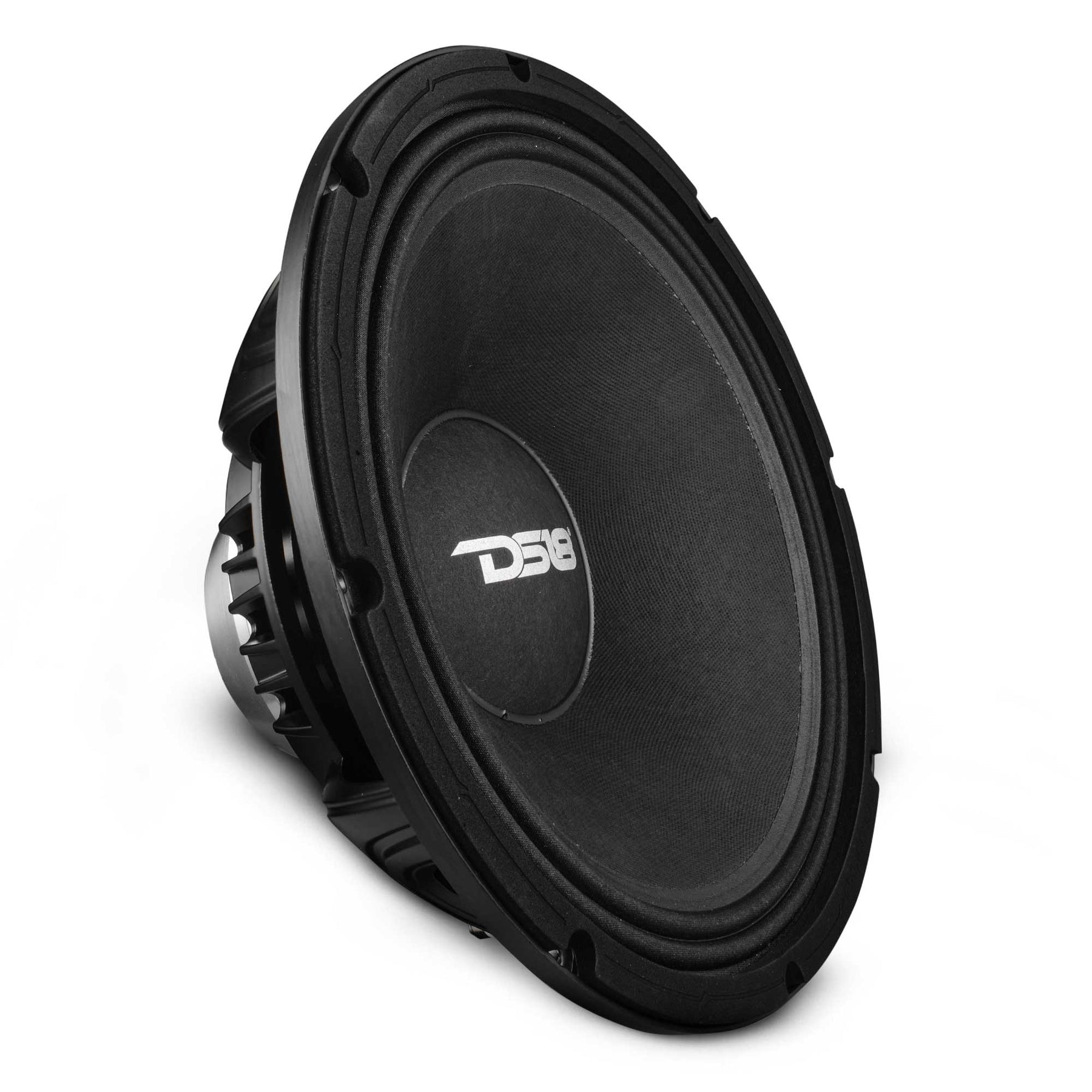

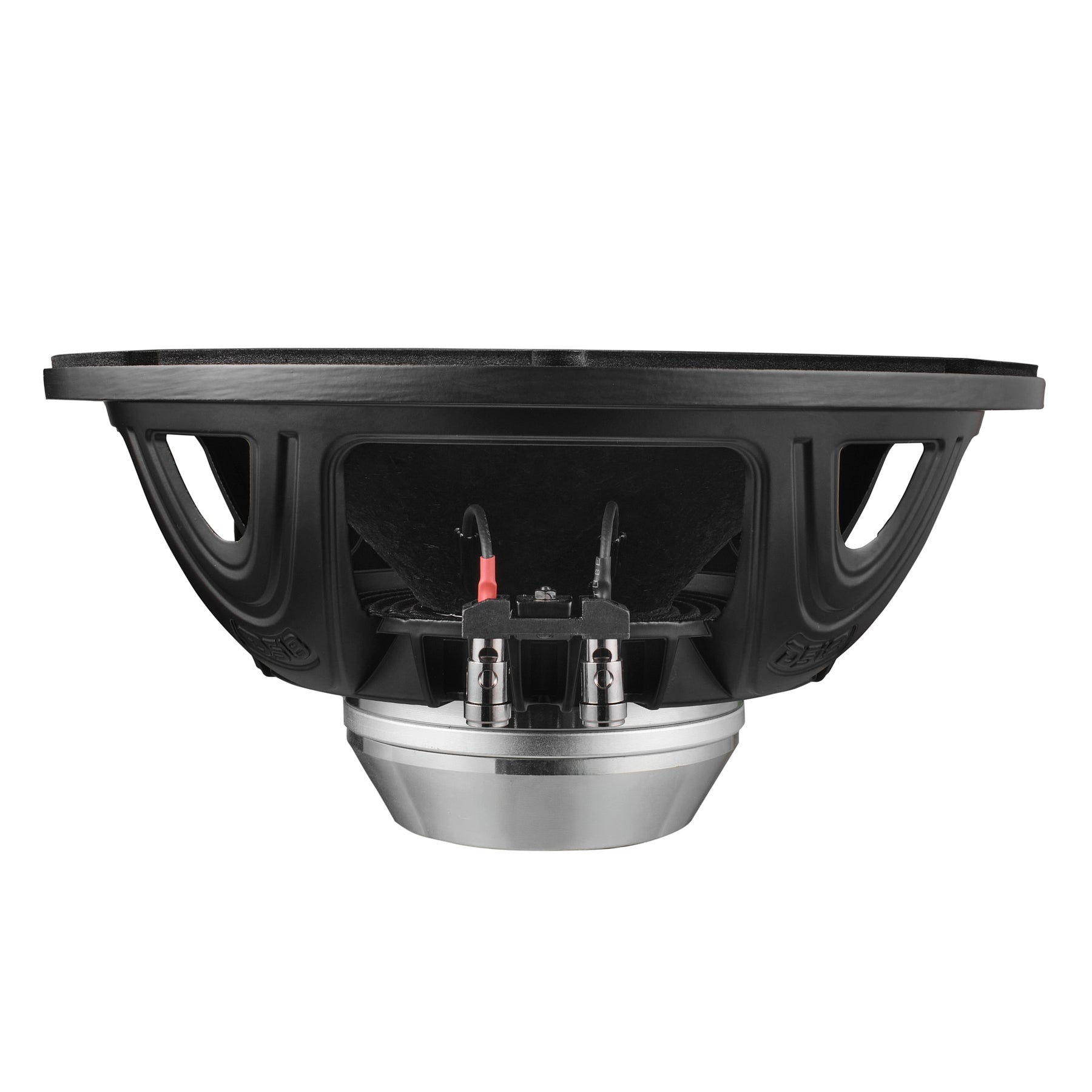

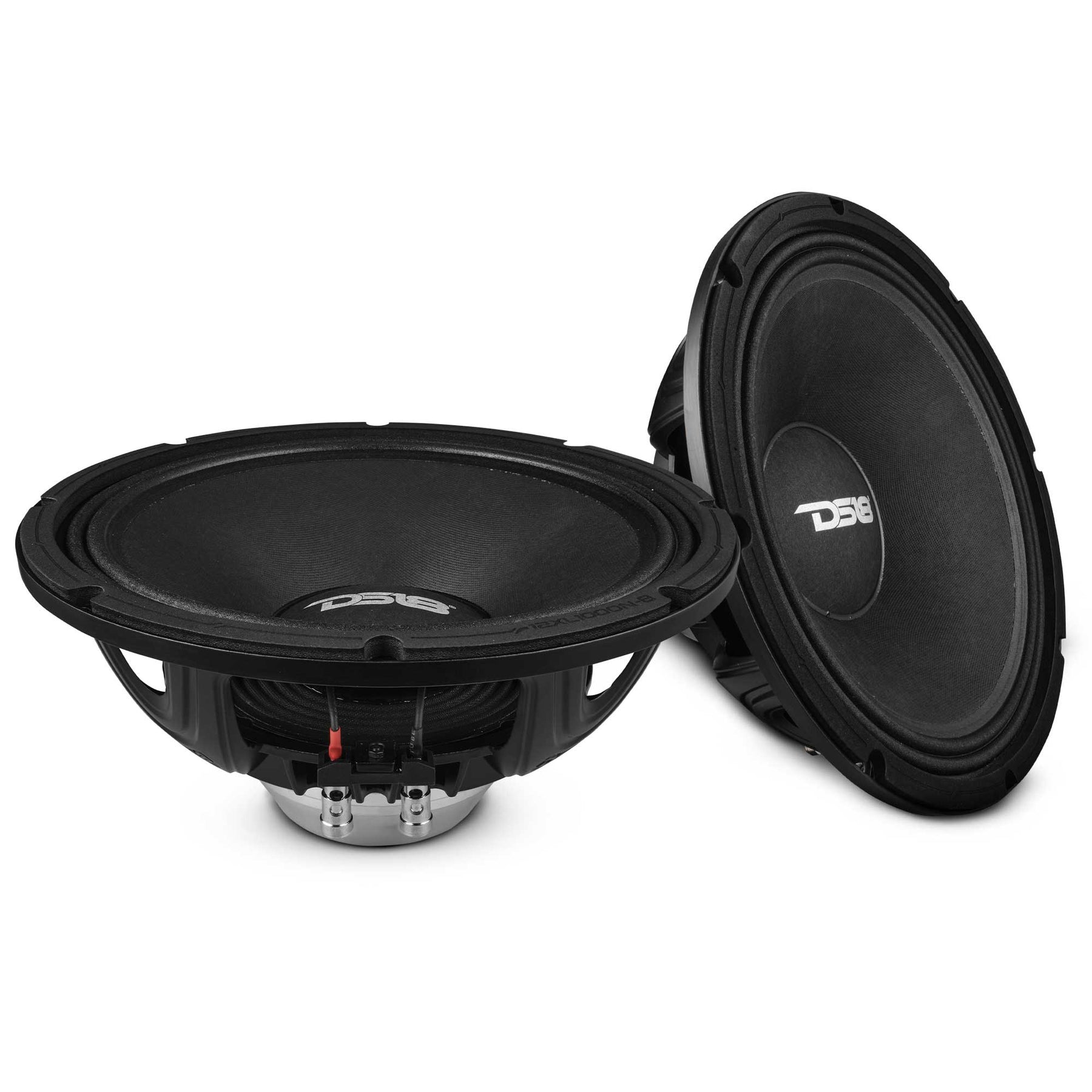

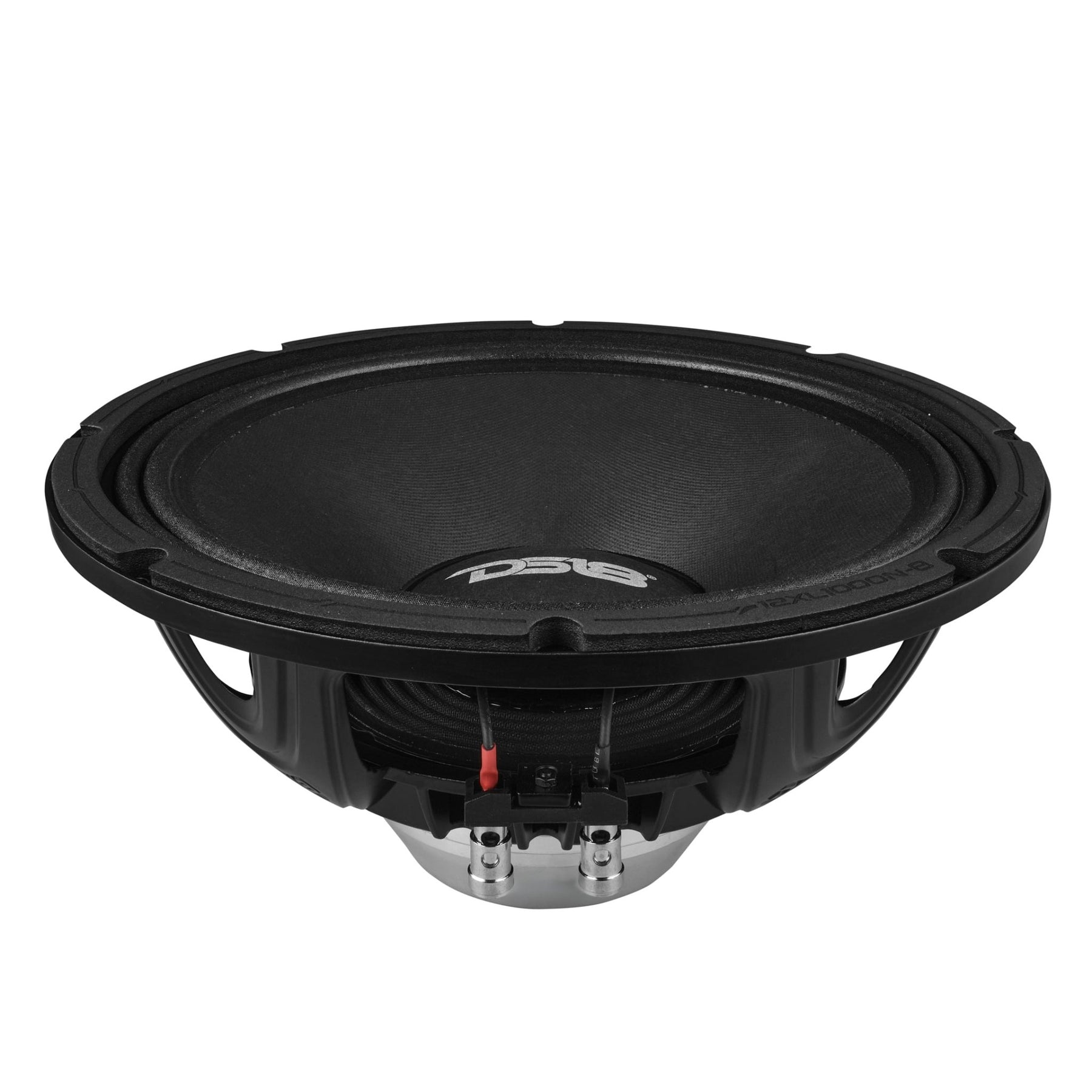

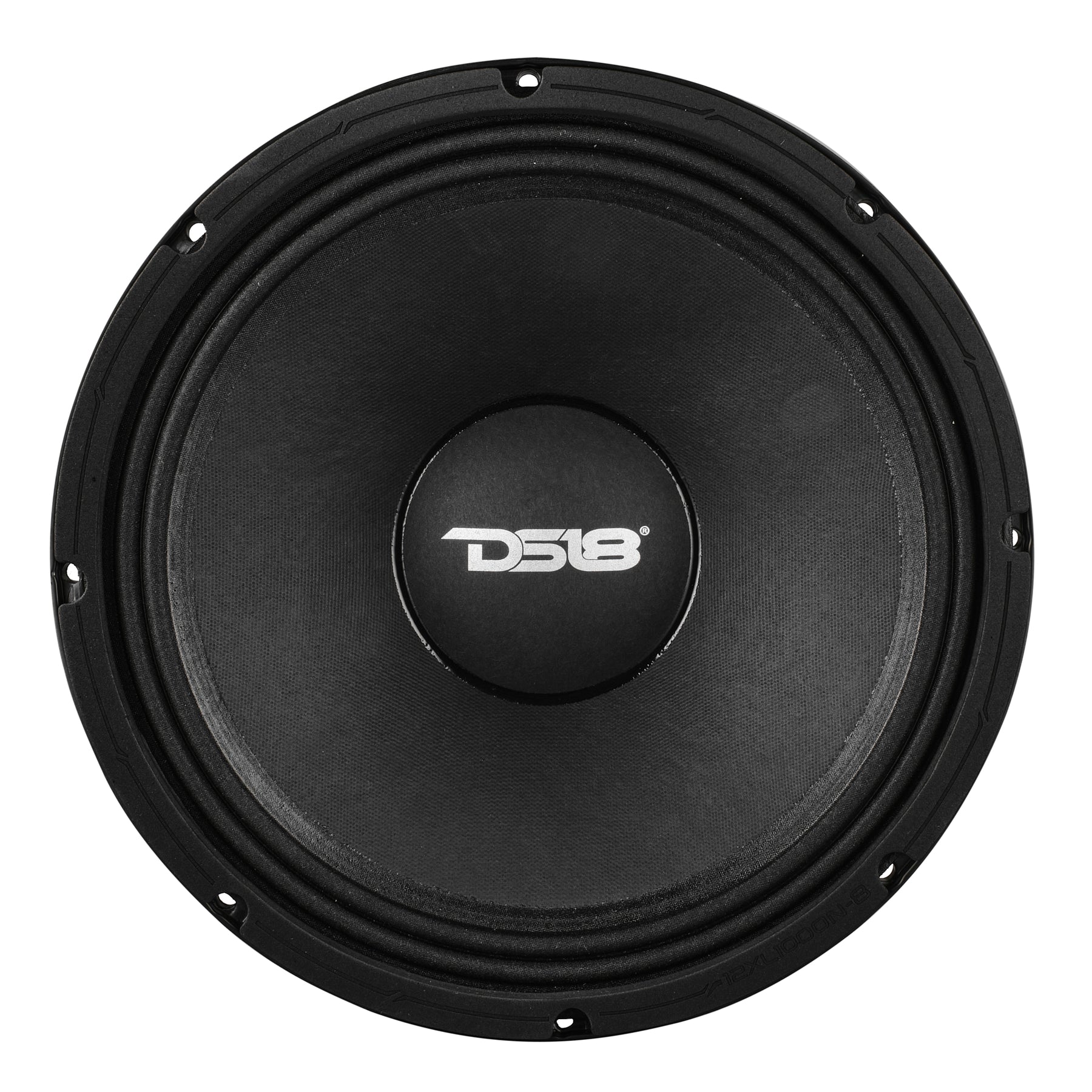

DS18 12XL1000N-8
The DS18 12XL1000N-8 is a 12-inch high-output mid-range car audio loudspeaker designed with an 8-ohm impedance and a powerful neodymium magnet for maximum efficiency and performance. Rated at 500 W RMS (1000 W peak), this speaker delivers loud, clear, and detailed mid-range frequencies with strong vocal projection and excellent instrument definition. Its lightweight yet rugged construction ensures dependable operation for daily drivers, custom sound systems, and competition-level builds. Ideal for pairing with tweeters and subwoofers in multi-way audio systems, the 12XL1000N-8 offers exceptional clarity, volume, and control for a professional-grade car audio experience.
Specifications
| Parameter | Value |
|---|---|
| SKU | 12XL1000N-8 |
| Nominal Diameter | 12″ / 305 mm |
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 500 W |
| MAX Power Handling | 1000 W |
| Sensitivity (1w/1m) | 100 dB |
| Frequency Response | 80 Hz – 5 kHz |
| Recommended High-Pass Crossover | 100 Hz |
| Sold In | Single |
| Grill Included | No |
Features
| Feature | Specification |
|---|---|
| Interleaved Sandwich Voice Coil (ISV) | No |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push 12ga |
Motor & Construction
| Component | Specification |
|---|---|
| Voice Coil Diameter | 3″ / 76.2 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Spider Diameter | 5″ / 127 mm |
| Leads Type | Direct to Cone |
| Basket Material | Aluminum |
| Basket Color / Finish | Satin Black |
| Magnet Material | Neodymium |
| Magnet Weight | 11 Oz |
| Displacement Volume | 0.07 L / 0.00247 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 75.12 L / 2.65 ft³ |
| Excursion (Xmax, one way) | 7 mm |
| Free Air Resonance (Fs) | 60 Hz |
| Mechanical Q (Qms) | 5.8 |
| Electrical Q (Qes) | 0.35 |
| Total Q (Qts) | 0.33 |
| Mechanical Mass (Mms) | 44.6 g |
| Mechanical Mass w/o Air (Mmd) | 37 g |
| Mechanical Compliance (Cms) | 0.19 mm/N |
| BL Factor | 18.7 |
| Voice Coil Inductance (Le) | 0.25 mH |
| Cone Area (Sd) | 526.85 cm² |
| DC Resistance (Re) | 5.6 Ohms |

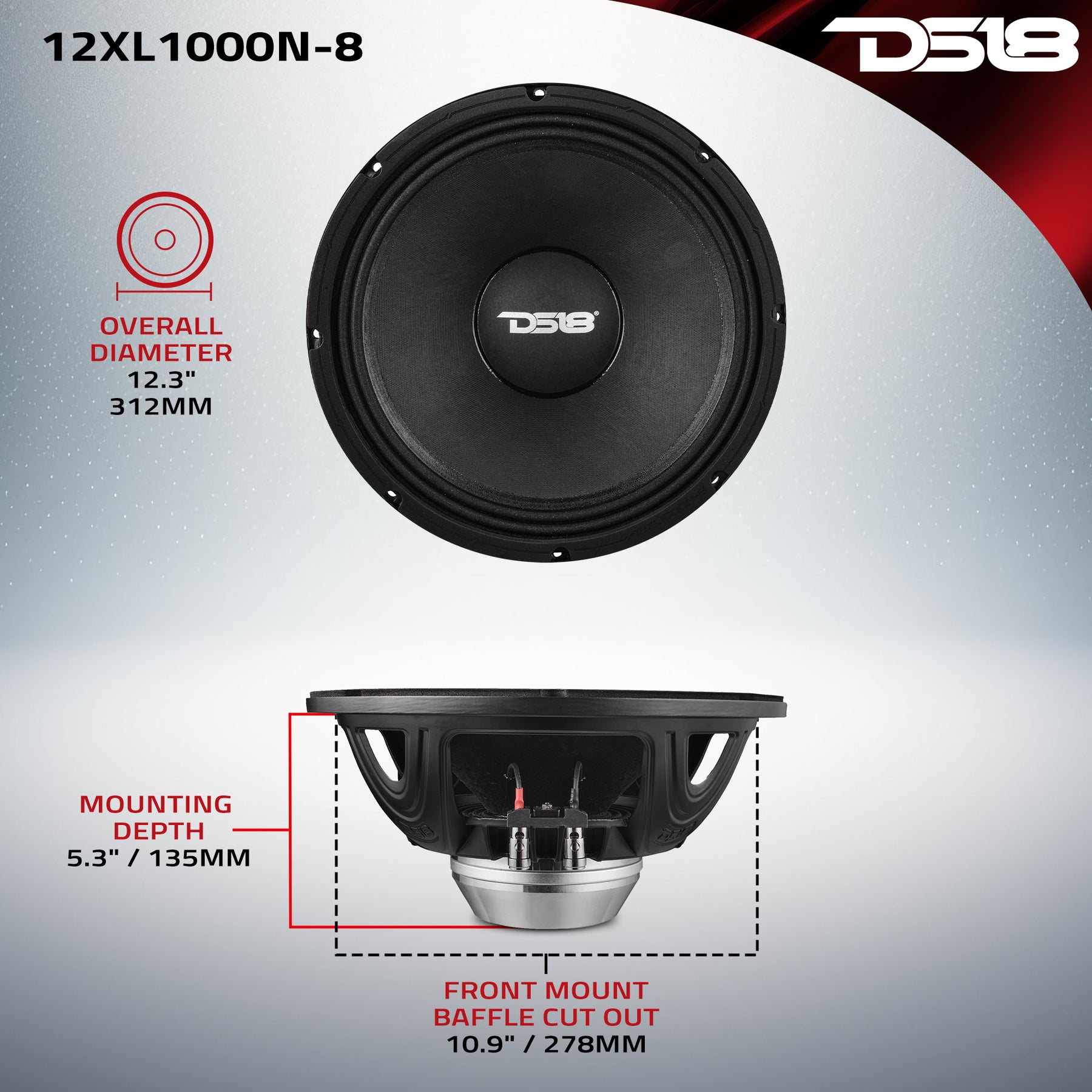

Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 12.3″ / 312 mm |
| Overall Depth | 5.8″ / 148 mm |
| Front Mount Baffle Cutout | 10.9″ / 278 mm |
| Mounting Depth | 5.3″ / 135 mm |
| Motor Diameter | 5.16″ / 131 mm |
Product Overview
12” Mid-Range Loudspeaker With Neodymium Magnet
DS18’s 12XL1000N-8 is made for serious audio systems, delivering professional-grade clarity and volume without compromise. This 12” 8-ohm mid-range loudspeaker is a monster in any setup!
LOUD and Clear
Rated at 500W RMS and 1000W MAX, the 12XL1000N-8 delivers thunderous midrange that punches through any mix. With a 100dB sensitivity, it hits harder with less power, keeping your system efficient and LOUD. Its wide 80Hz–5KHz frequency range captures every note with surgical accuracy.

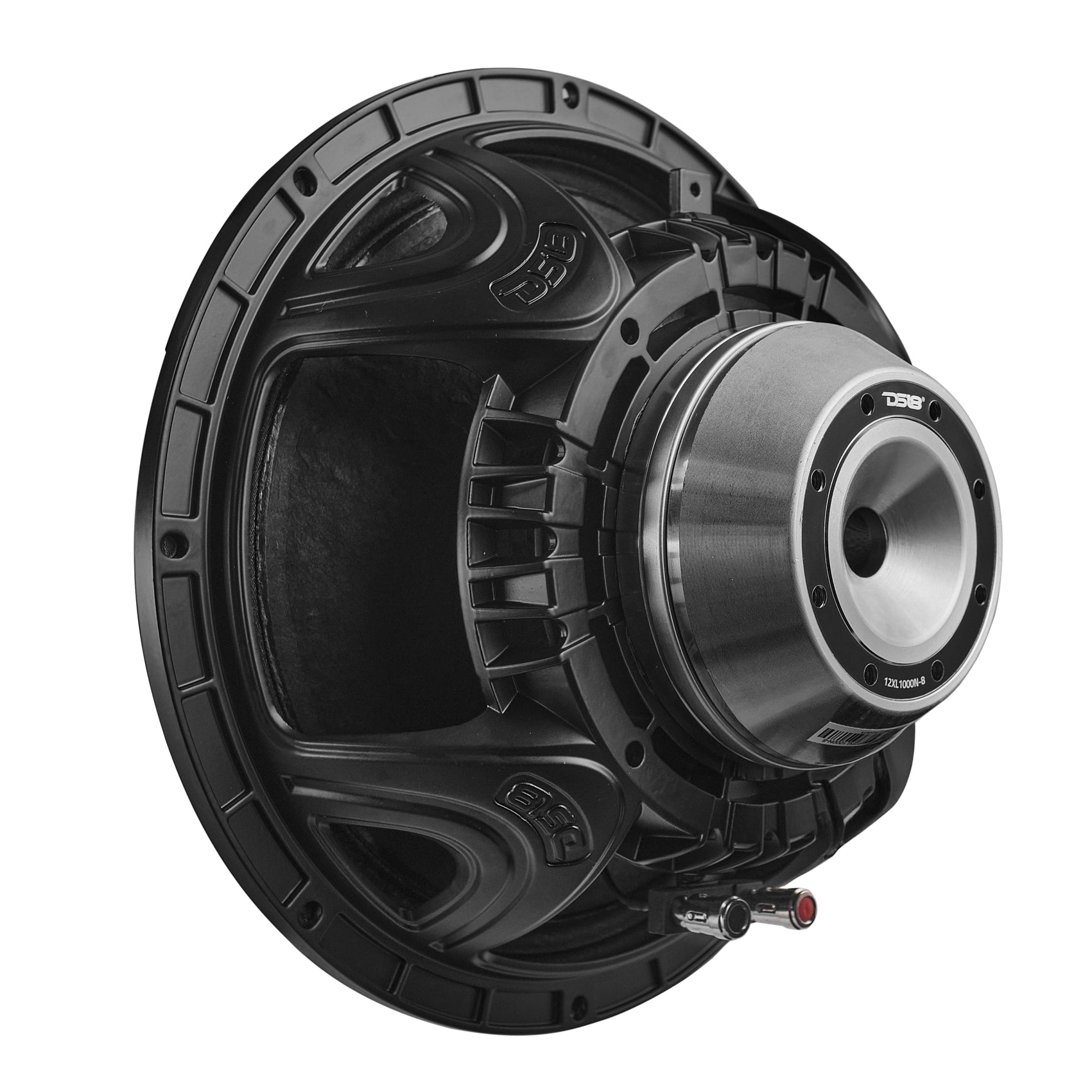

Neodymium Core
At the heart is a lightweight neodymium magnet, delivering high flux density in a compact form factor. The Kapton voice coil resists heat and stress under pressure, while the non-pressed paper cone balances stiffness and responsiveness for crystal-clear output, even at high volume.
Performance You Can Feel
From the demodulating rings for thermal efficiency, to the satin black aluminum basket that keeps everything in place—this driver was built to handle the kind of sound real audiophiles dream about.
You want pro-level output? Get it with DS18’s 12XL1000N-8!
