Description
DS18 10XL1400MB-4
The DS18 10XL1400MB‑4 is a 10‑inch XL‑series mid‑bass loudspeaker engineered to deliver deep, powerful mid‑range and mid‑low frequencies for car audio systems, custom installations, and high‑output builds. With a 4 Ω nominal impedance, high sensitivity, and robust power handling, it produces loud, clear sound with excellent projection and minimal distortion — perfect for mid‑bass doors, pods, and custom enclosures.
Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 10″ / 254 mm |
| Nominal Impedance | 4 Ω |
| RMS Power Handling | 700 W |
| Max Power Handling | 1400 W |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 40 Hz – 5 kHz |
| Recommended High-Pass Crossover | 80 Hz |
| Sold As | Single |
| Grill Included | No |
Motor Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 3.5″ / 89 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW (2 Layers IN/OUT) |
| Cone Material | Non-pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 93 Oz |
| Displacement Volume | 1.44 L / 0.051 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 17.1 L / 0.603 ft³ |
| Excursion (Xmax) | 4 mm |
| Free Air Resonance (Fs) | 70 Hz |
| Mechanical Factor (Qms) | 3.136 |
| Electrical Factor (Qes) | 0.327 |
| Total Factor (Qts) | 0.296 |
| Mechanical Mass (Mms) | 50.047 g |
| Mechanical Compliance (Cms) | 0.089 mm/N |
| BL Factor | 16.135 |
| Voice Coil Inductance (Le) | 0.39 mH |
| Cone Area (Sd) | 363 cm² |
| DC Resistance (Re) | 3.6 Ω |
| Mechanical Mass w/o Air (Mmd) | 50 g |

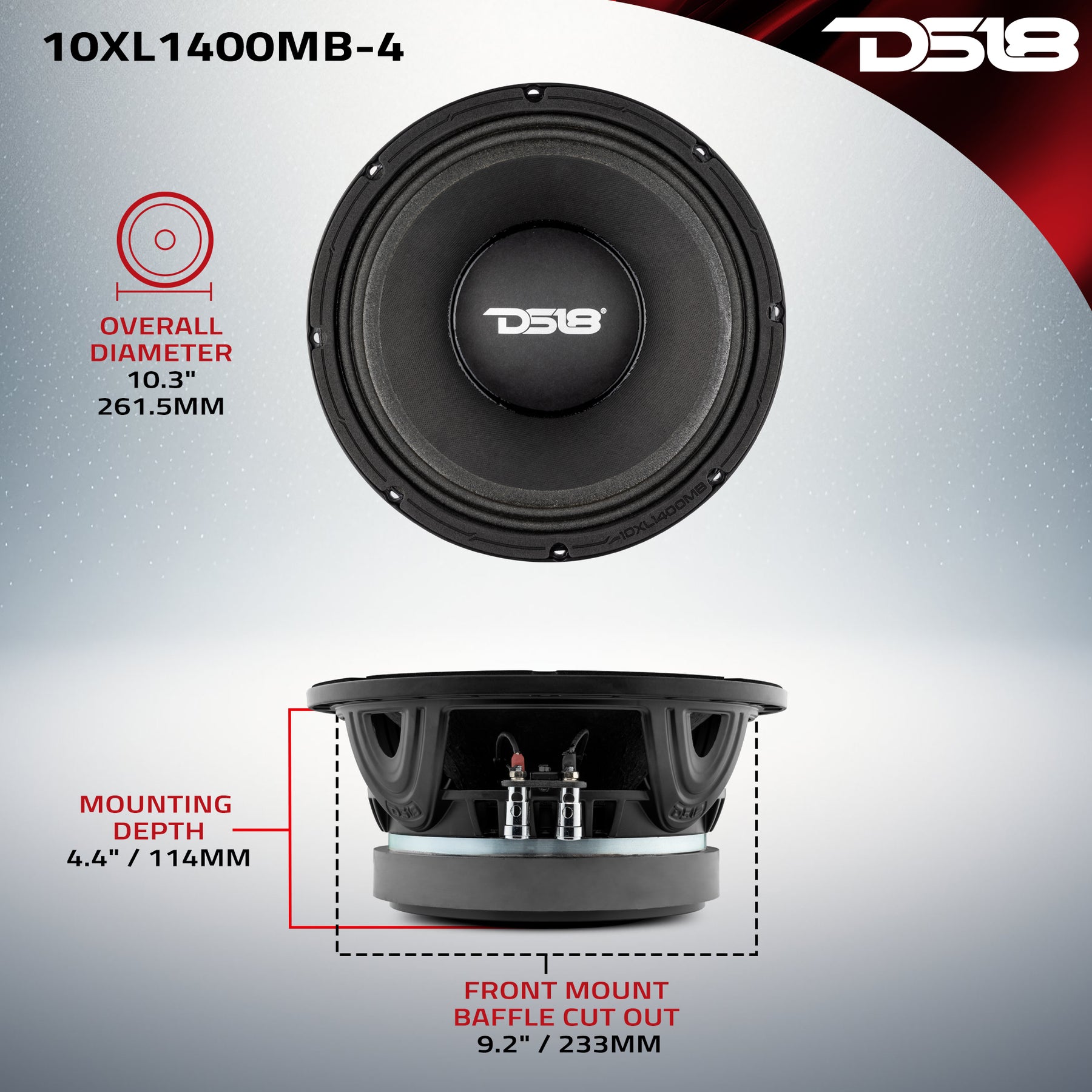

Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 10.3″ / 261.5 mm |
| Overall Depth | 4.93″ / 125 mm |
| Front Mount Baffle Cutout | 9.2″ / 233 mm |
| Mounting Depth | 4.4″ / 114 mm |
| Motor Diameter | 7.48″ / 190 mm |
Product Overview
DS18 10XL1400MB-4
DS18’s 10XL1400MB-4 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.
DS18’s 10XL1400MB-4 stands head and shoulders above the midbass competition. This 10 inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 700W RMS and 1400W MAX these speakers are guaranteed to blow you away. The frequency response of 40Hz-5KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98 dB guarantees crystal-clear sound reproduction, even in large venues.
Crafted with precision, DS18’s 10XL1400MB-4 features a 3.5″ Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker’s aesthetics but also provides structural integrity. The ferrite magnet weighing in at a whopping 93 ounces ensures powerful and accurate bass responses that will leave you amazed.
Elevate your audio game with the DS18 10XL1400MB-4. Immerse yourself in the richness and clarity of your favorite music like never before.
