Description

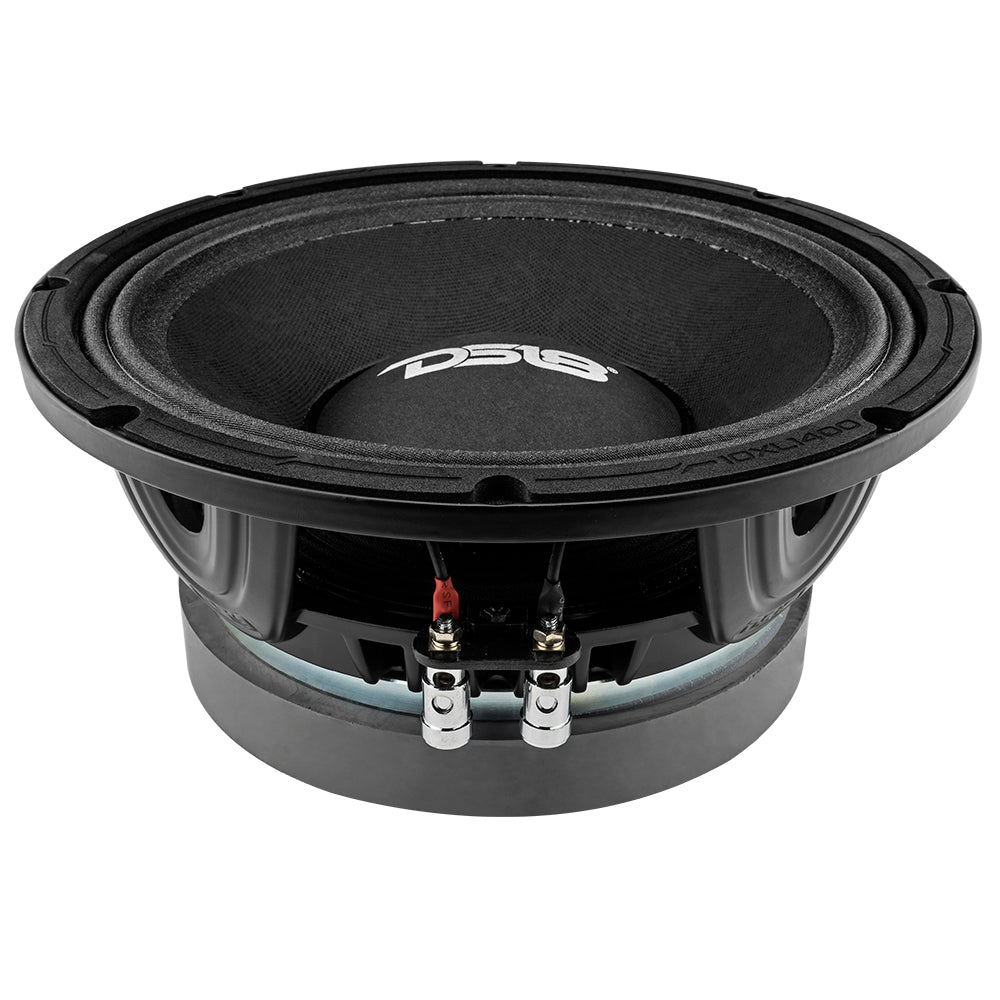

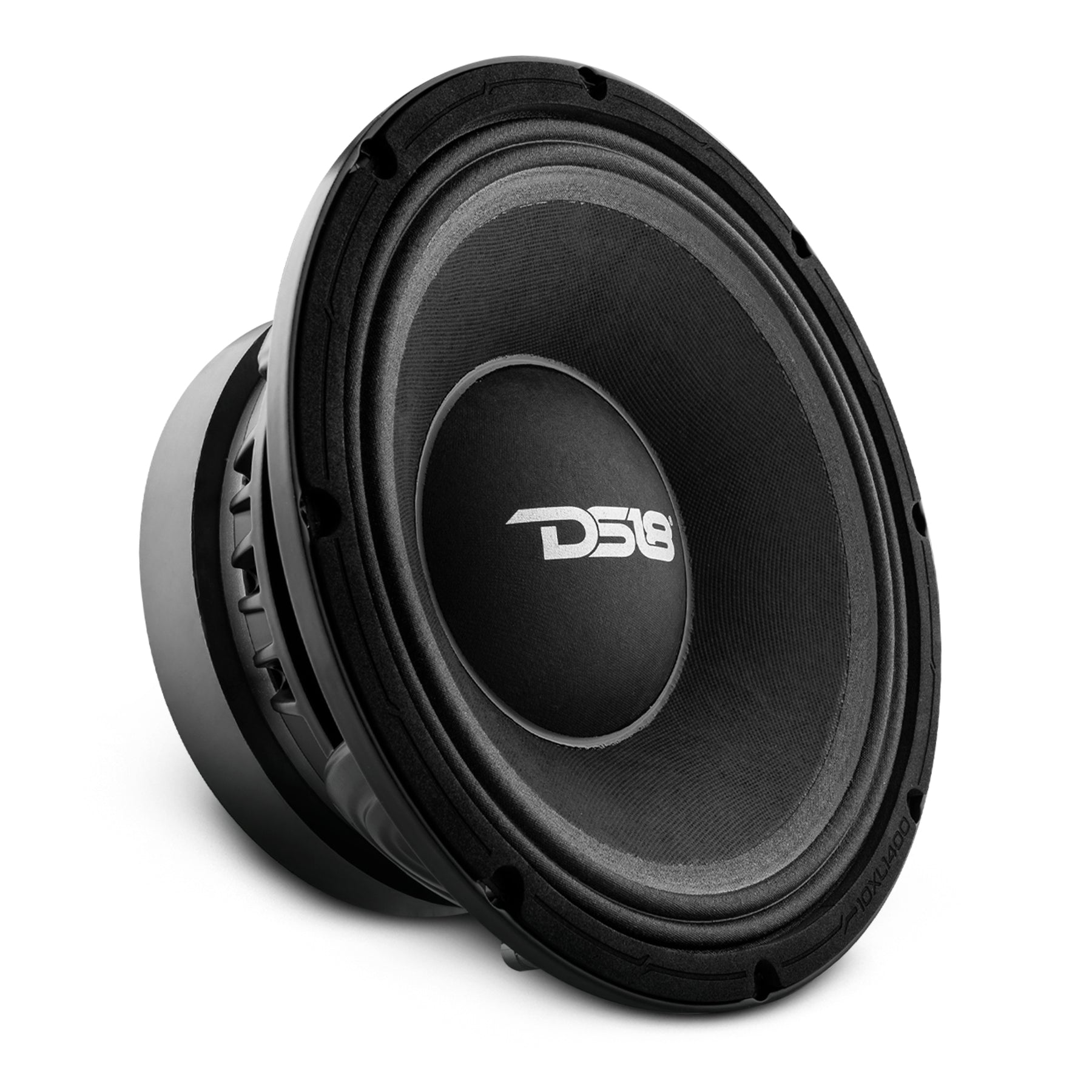

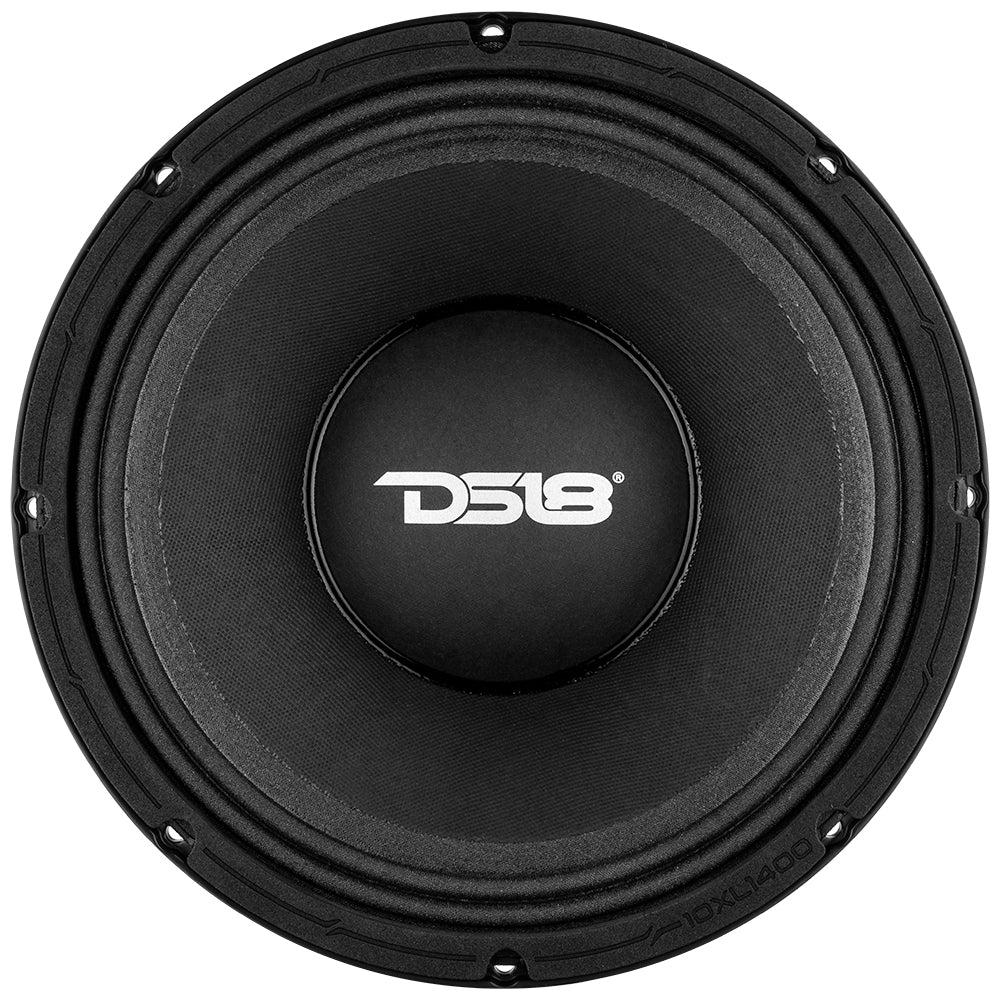

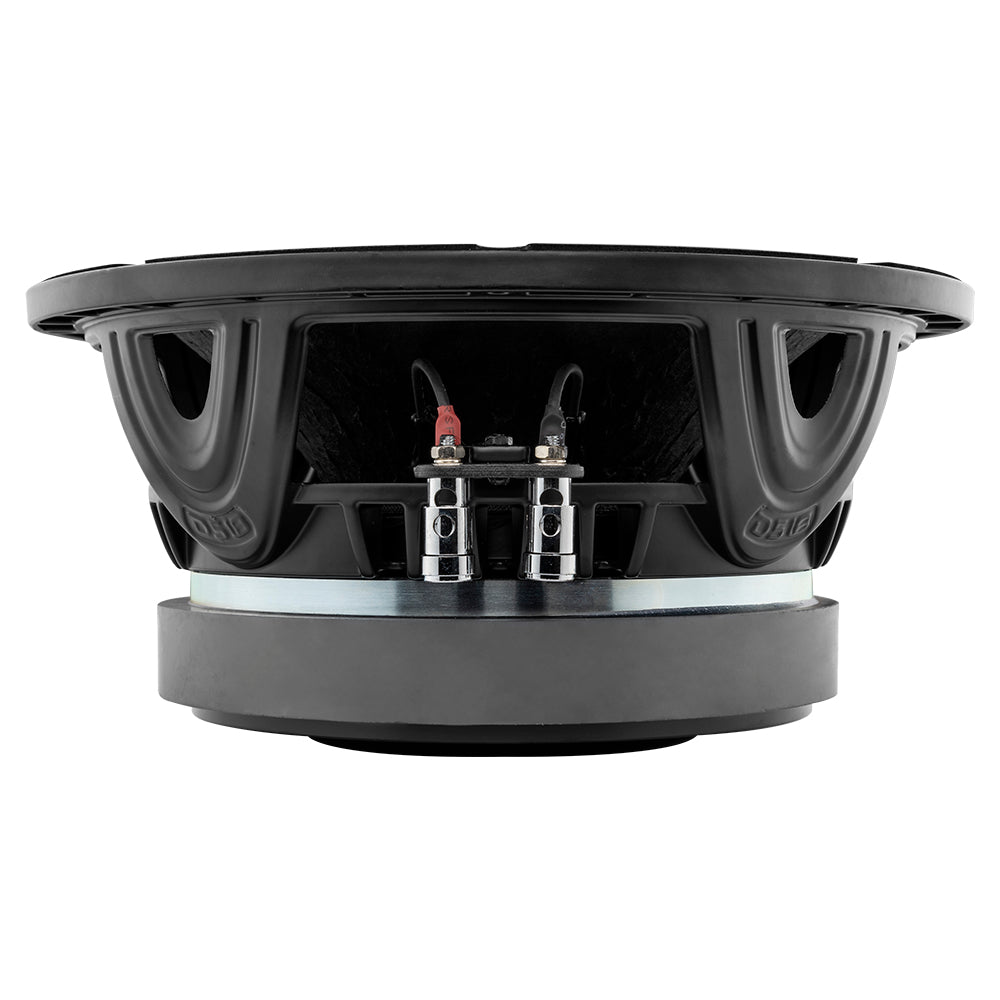

DS18 10XL1400-4
The DS18 10XL1400 is a high‑output 10″ XL‑series mid‑range loudspeaker designed for powerful, clear audio performance in car audio systems, custom builds, and pro installations. Both 4 ohm (10XL1400‑4) and 8 ohm (10XL1400‑8) versions deliver 700 W RMS continuous power and 1400 W peak power handling, making them strong performers for mid‑range and mid‑bass applications.
Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 10″ / 254 mm |
| Nominal Impedance Available | 4 ohms, 8 ohms |
| RMS Power Handling | 700 watts |
| Max Power Handling | 1400 watts |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 60 Hz – 6 kHz |
| Recommended High-Pass Crossover | 80 Hz |
| Sold As | Single |
| Grill Included | No |
Motor Specifications
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 3.5″ / 89 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW (2 Layers IN/OUT) |
| Cone Material | Non-pressed Paper |
| Dust Cap Material | Paper |
| Bullet Material | N/A |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 93 Oz |
| Displacement Volume | 1.44 L / 0.051 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas | 21 L / 0.741 ft³ |
| Xmax | 4 mm |
| Fs | 70 Hz |
| Qms | 3.796 |
| Qes | 0.39 |
| Qts | 0.354 |
| Mms | 43.4 g |
| Cms | 0.11 mm/N |
| BL | 13.52 |
| Le | 0.12 mH |
| Sd | 363 cm² |
| Re | 3.6 ohms |
| Mmd | 50 g |

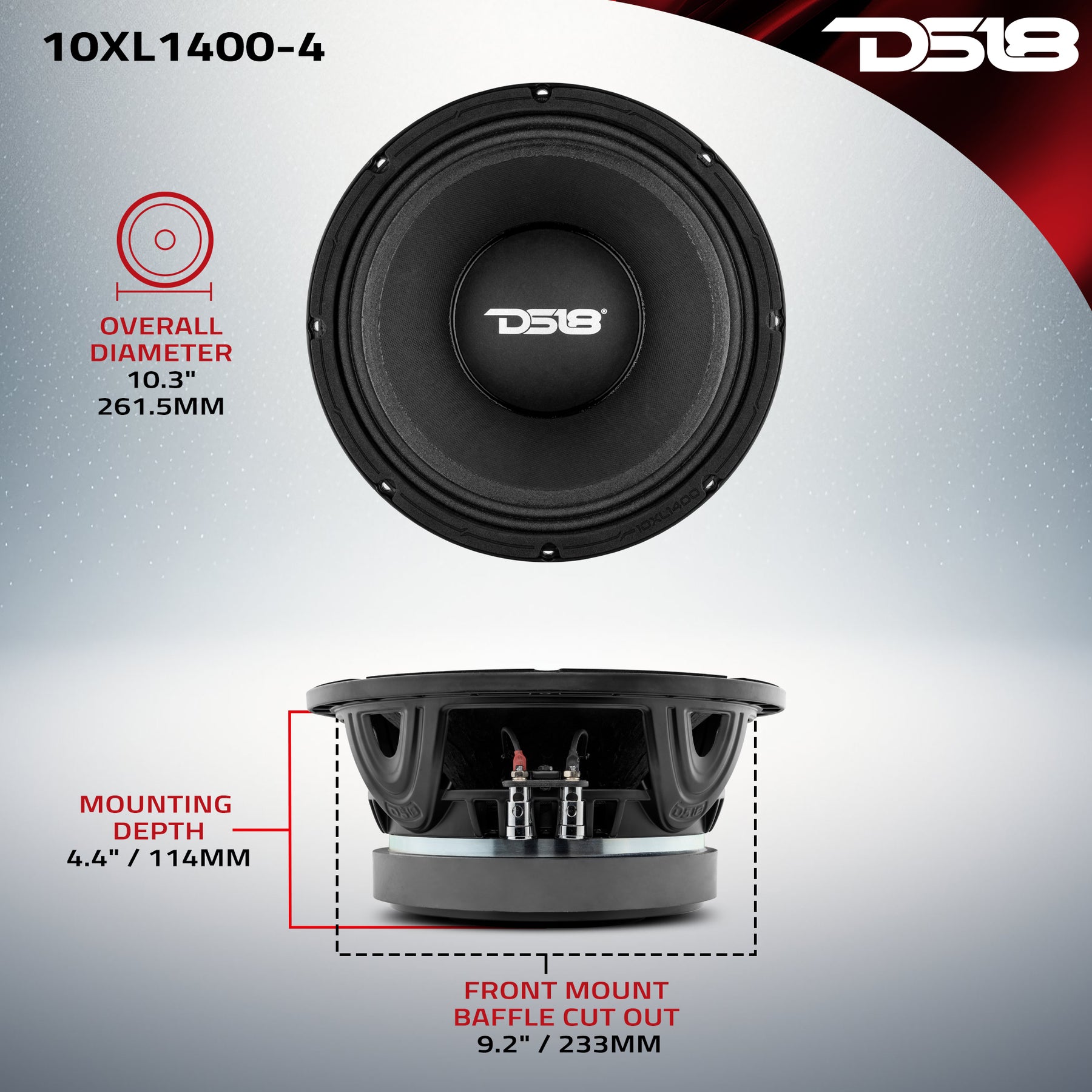

Measurements
| Parameter | Value |
|---|---|
| Overall Diameter | 10.3″ / 261.5 mm |
| Overall Depth | 4.93″ / 125 mm |
| Front Mount Baffle Cutout | 9.2″ / 233 mm |
| Mounting Depth | 4.4″ / 114 mm |
| Motor Diameter | 7.48″ / 190 mm |
Product Overview
DS18 10XL1400-4
DS18’s 10XL1400-4 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.
DS18’s 10XL1400-4 stands head and shoulders above the mid-range competition. This 10-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 700W RMS and 1400W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98 dB guarantees crystal-clear sound reproduction, even in large venues.

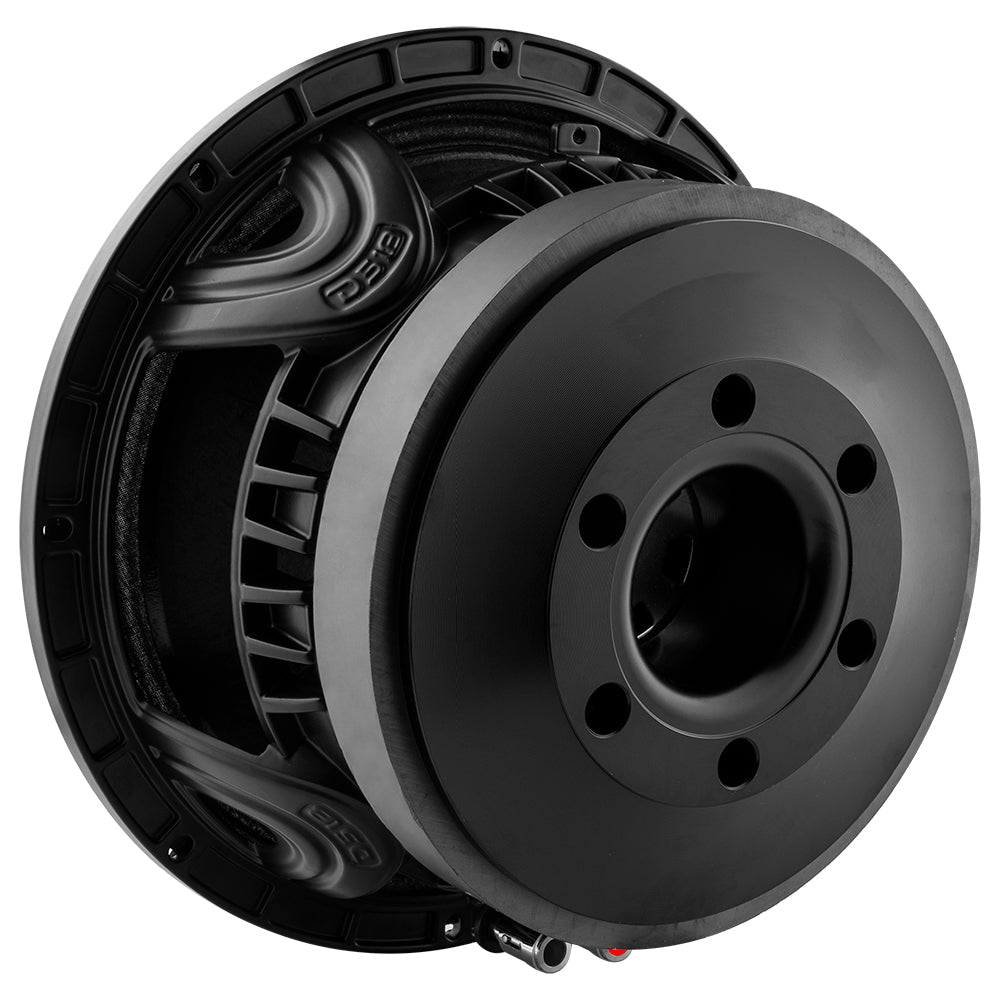

Crafted with precision, DS18’s 10XL1400-4 features a 3.5″ Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker’s aesthetics but also provides structural integrity. The ferrite magnet weighing in at 93 ounces ensures powerful and accurate bass responses that will leave you amazed.
Elevate your audio game with the DS18 10XL1400-4!
