Description
DS18 10XL1000N-8

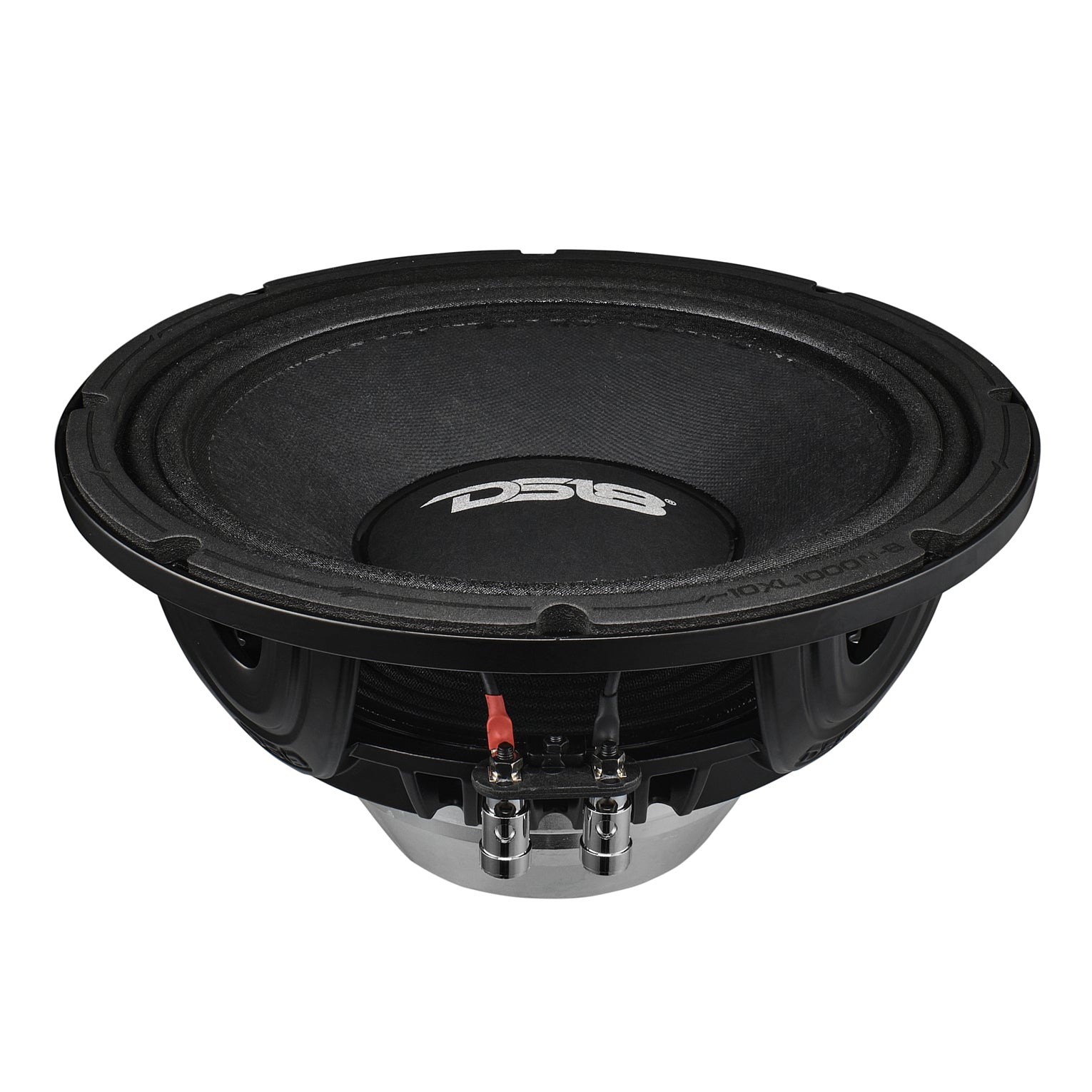

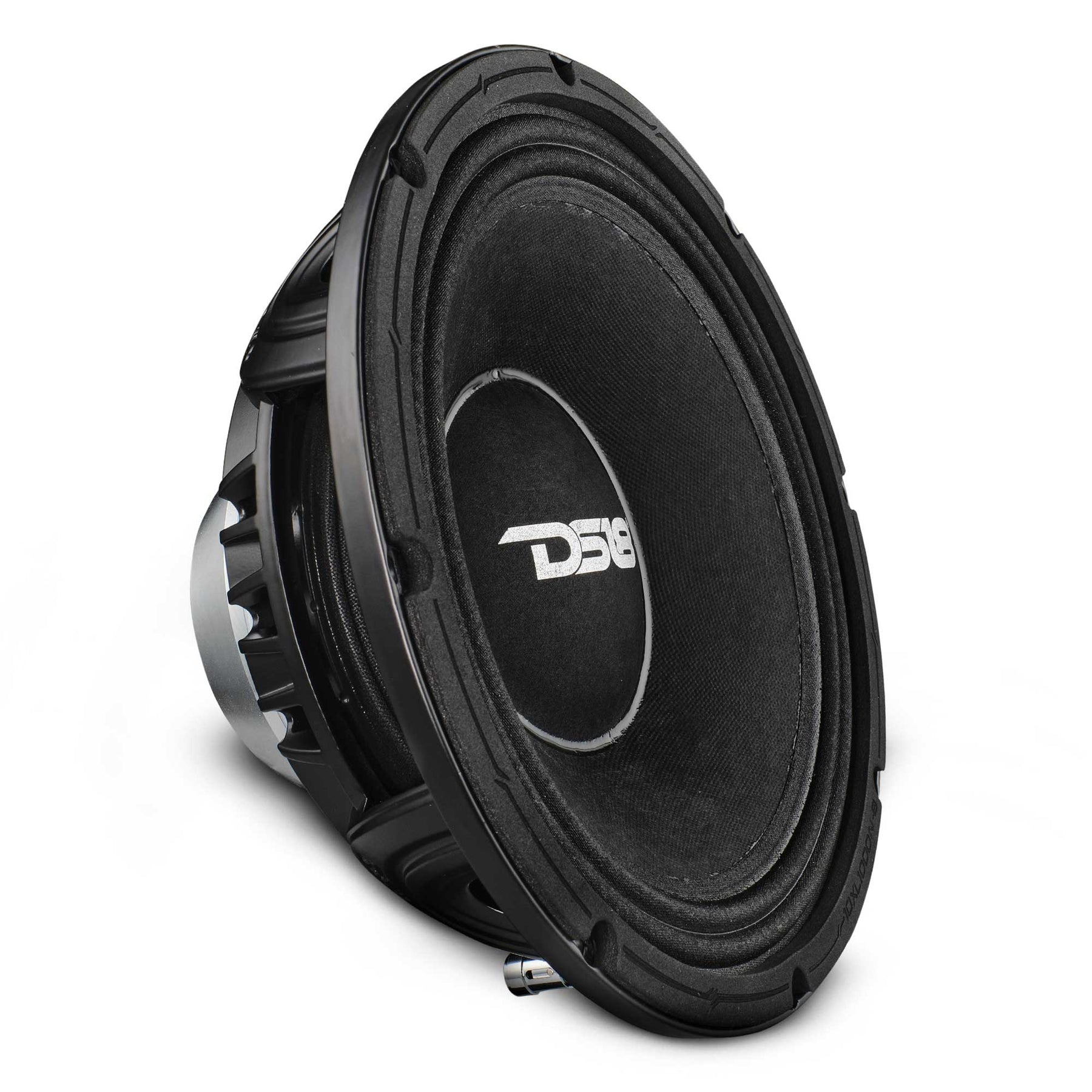

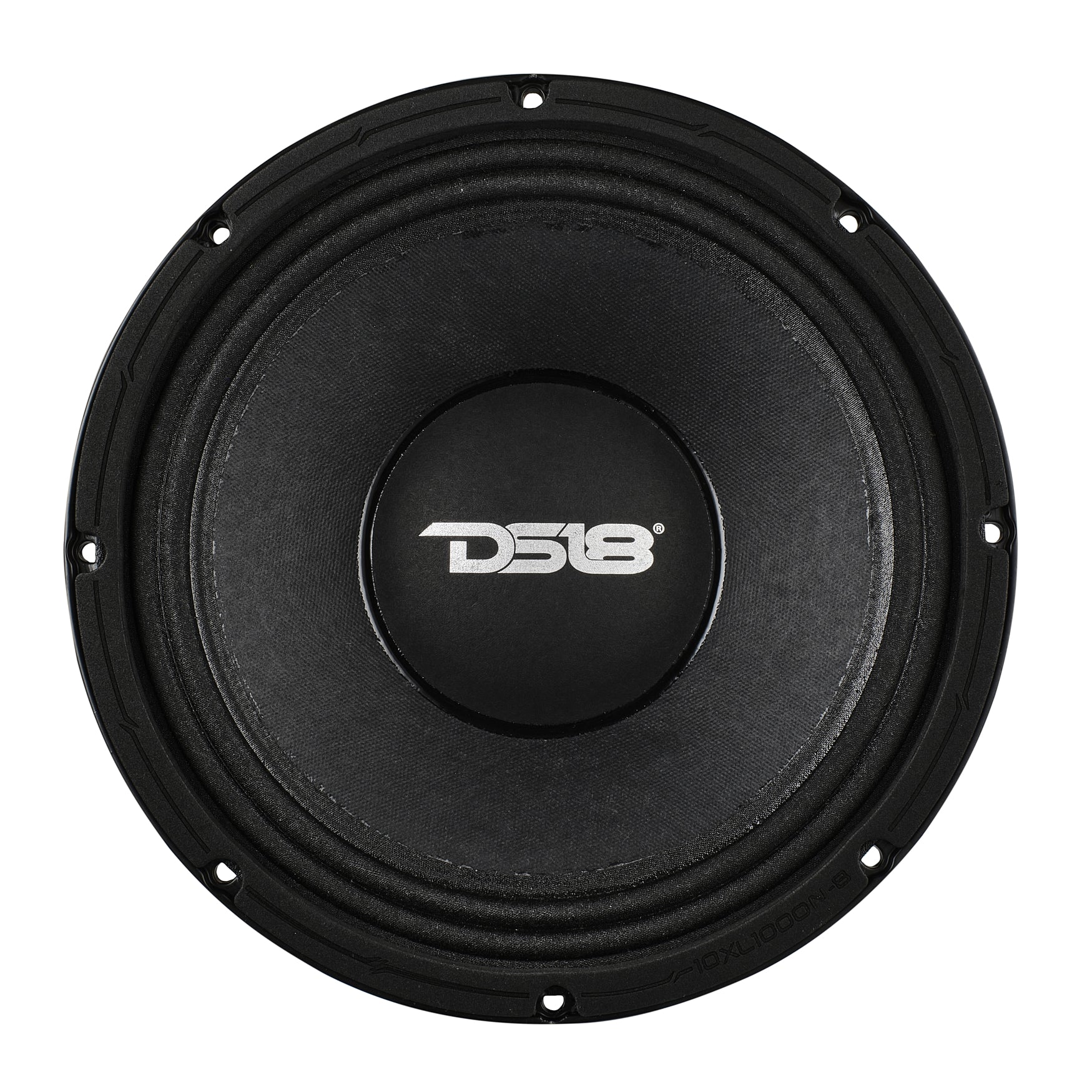

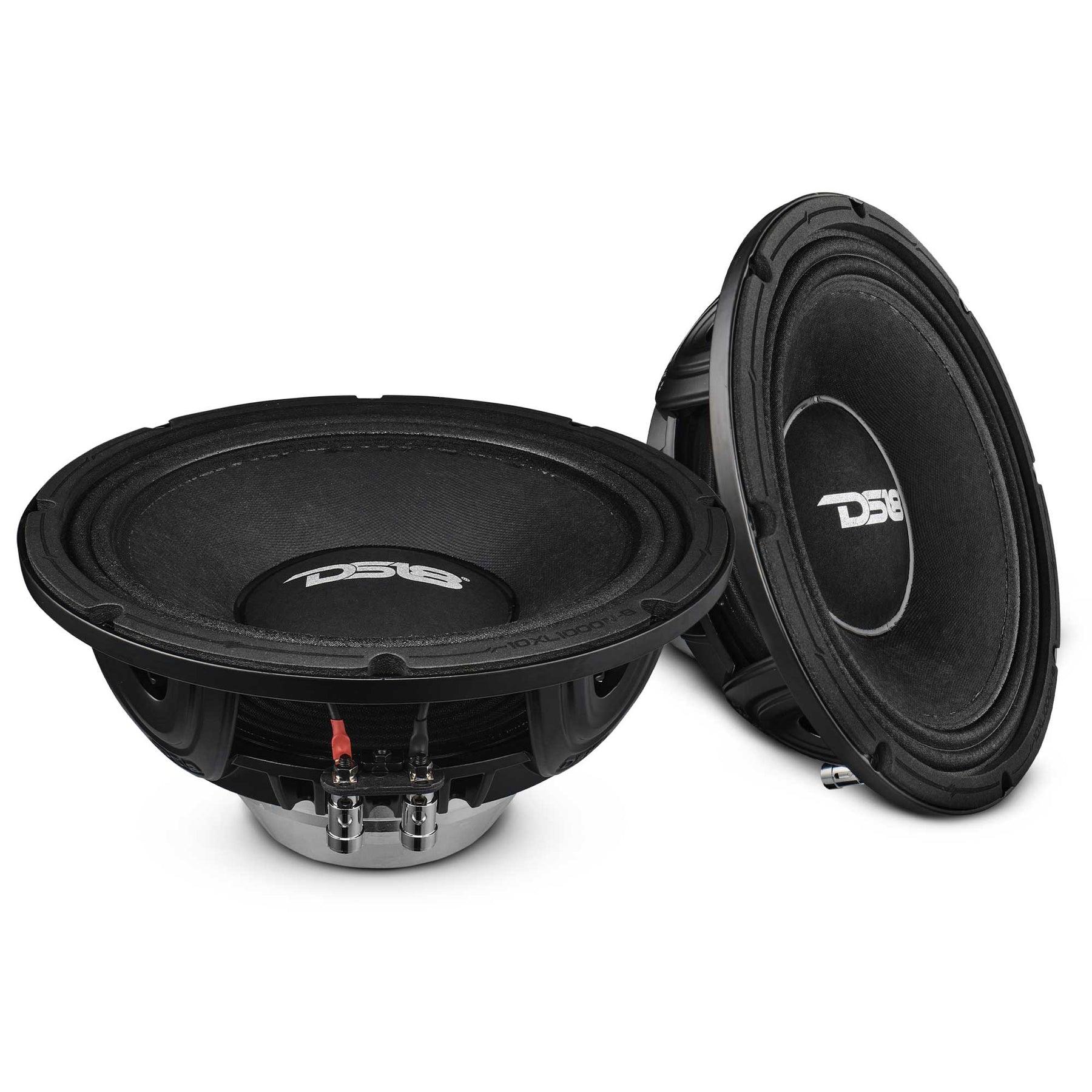

The DS18 10XL1000N-8 is a 10-inch mid-range car audio loudspeaker featuring an 8-ohm impedance and a high-strength neodymium magnet for powerful and efficient performance. Rated at 500 W RMS (1000 W peak), this speaker delivers crystal-clear, dynamic mid-range frequencies with exceptional vocal presence and instrument detail. Its lightweight yet durable construction ensures reliable operation in daily drivers, custom competition builds, or professional audio setups. Designed to integrate seamlessly with tweeters and subwoofers in multi-way systems, the 10XL1000N-8 provides strong output, clarity, and precision for a high-performance car audio experience.
Specifications
| Parameter | Value |
|---|---|
| SKU | 10XL1000N-8 |
| Nominal Diameter | 10″ / 254 mm |
| Nominal Impedance | 8 Ohms |
| RMS Power Handling | 500 W |
| MAX Power Handling | 1000 W |
| Sensitivity (1w/1m) | 101 dB |
| Frequency Response | 80 Hz – 5 kHz |
| Recommended High-Pass Crossover | 120 Hz |
| Sold In | Single |
| Grill Included | No |
Features
| Feature | Specification |
|---|---|
| Interleaved Sandwich Voice Coil (ISV) | No |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push 12ga |
Motor & Construction
| Component | Specification |
|---|---|
| Voice Coil Diameter | 3″ / 76.2 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Spider Diameter | 5″ / 127 mm |
| Leads Type | Direct to Cone |
| Basket Material | Aluminum |
| Basket Color / Finish | Satin Black |
| Magnet Material | Neodymium |
| Magnet Weight | 11 Oz |
| Displacement Volume | 0.04 L / 0.0014 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 35.45 L / 1.25 ft³ |
| Excursion (Xmax, one way) | 6 mm |
| Free Air Resonance (Fs) | 70 Hz |
| Mechanical Q (Qms) | 5.87 |
| Electrical Q (Qes) | 0.23 |
| Total Q (Qts) | 0.23 |
| Mechanical Mass (Mms) | 34 g |
| Mechanical Mass w/o Air (Mmd) | 30 g |
| Mechanical Compliance (Cms) | 0.21 mm/N |
| BL Factor | 18 |
| Voice Coil Inductance (Le) | 0.25 mH |
| Cone Area (Sd) | 346.36 cm² |
| DC Resistance (Re) | 5.6 Ohms |

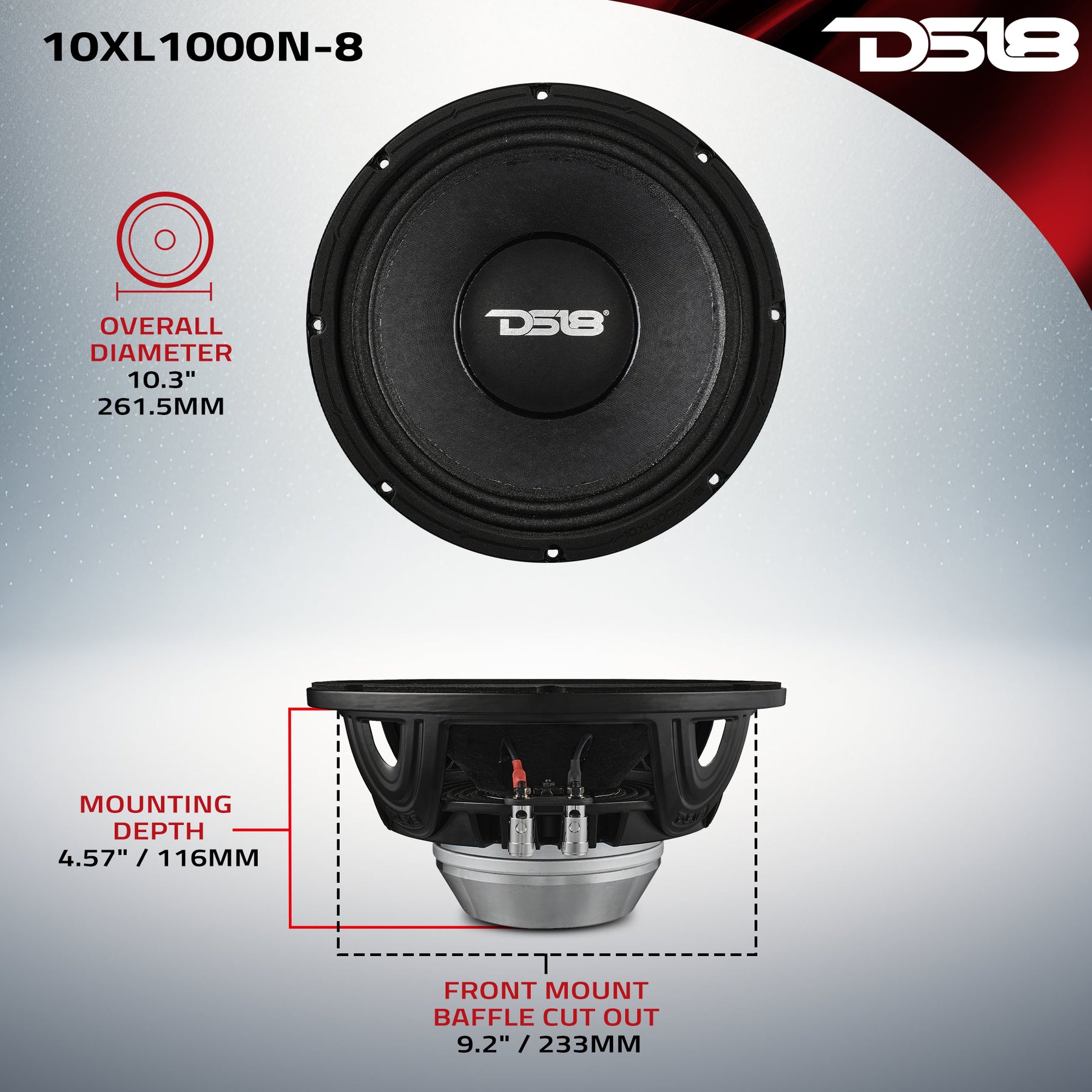

Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 10.3″ / 261.5 mm |
| Overall Depth | 5.1″ / 129 mm |
| Front Mount Baffle Cutout | 9.2″ / 233 mm |
| Mounting Depth | 4.57″ / 116 mm |
| Motor Diameter | 5.16″ / 131 mm |
Product Overview
10” Mid-Range Loudspeaker with Neodymium Magnet | 1000W Max | 8 Ohm
Take your mid-range clarity to the next level with DS18’s 10XL1000N-8—designed for pro-level audio setups where sound quality is non-negotiable.
Raw Power, Refined Sound
This 10″ midrange loudspeaker features a powerful 3” voice coil and high-efficiency neodymium magnet, delivering 500W RMS and 1000W MAX power. With a 101dB sensitivity rating and frequency response of 80Hz–5KHz, you get LOUD mids that cut through without distortion.
Designed to Perform
Built with demodulating rings and improved heat dissipation, the 10XL1000N-8 is crafted for high-performance environments. The non-pressed paper cone, curvilinear shape, and CCAW winding work in harmony to provide rich clarity and dynamic response—perfect for aggressive SPL systems or concert-level builds.
Ready to Install

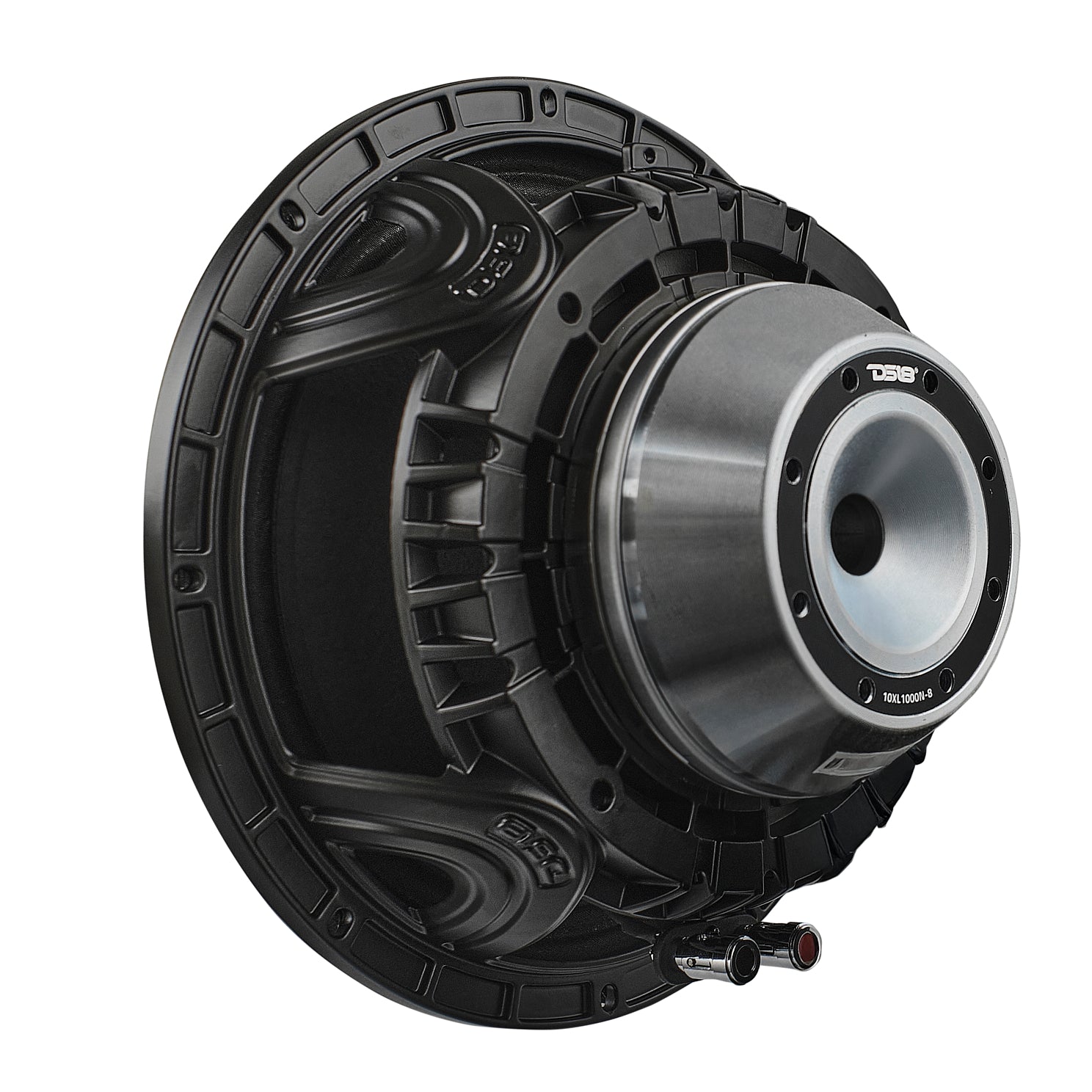

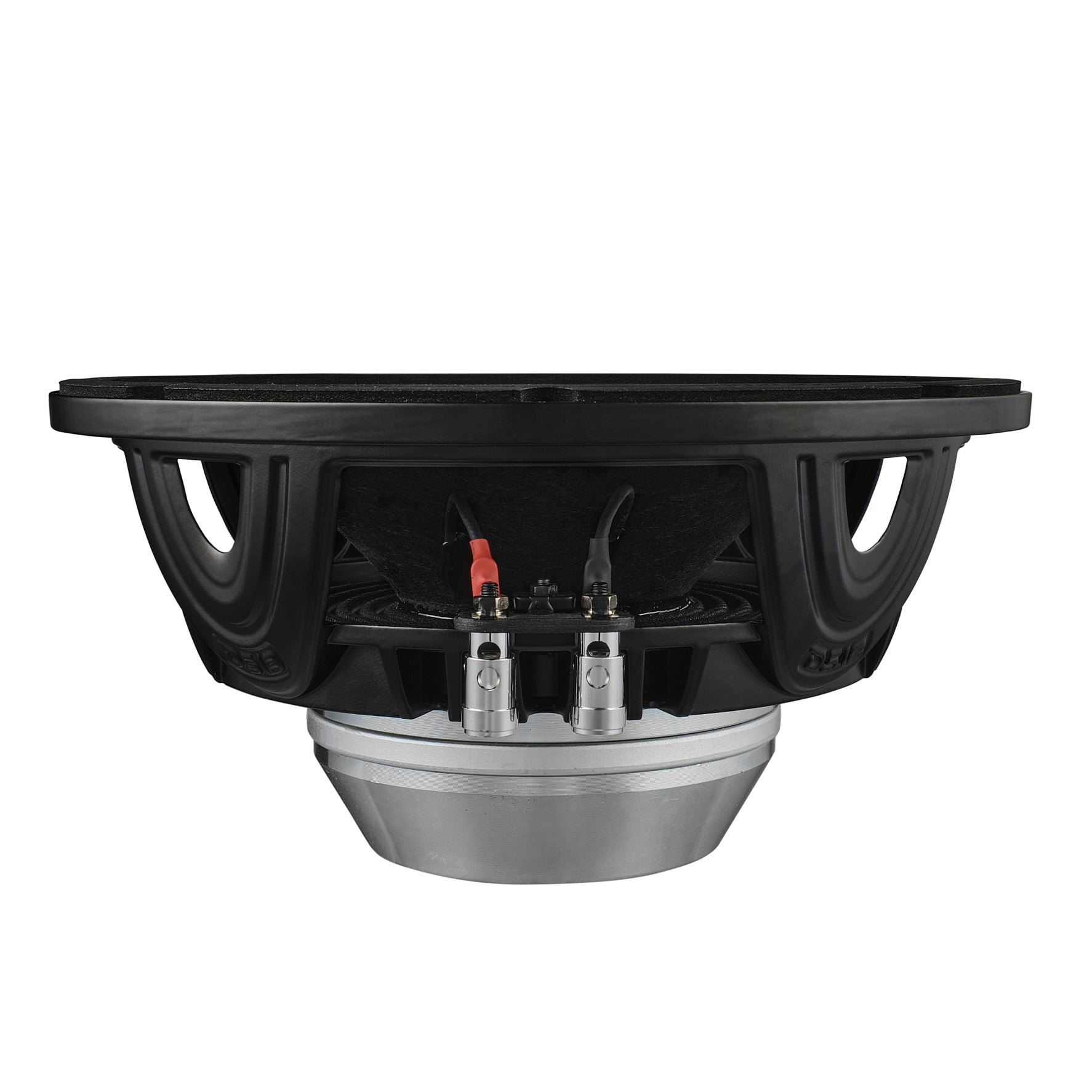

This speaker’s satin black aluminum basket, sealed back design, and direct-to-cone leads ensure rugged durability and efficient installation. Optimized for a 4.57” mounting depth, it’s a drop-in solution for serious systems.
