Description
DS18 10XL1000MB-4

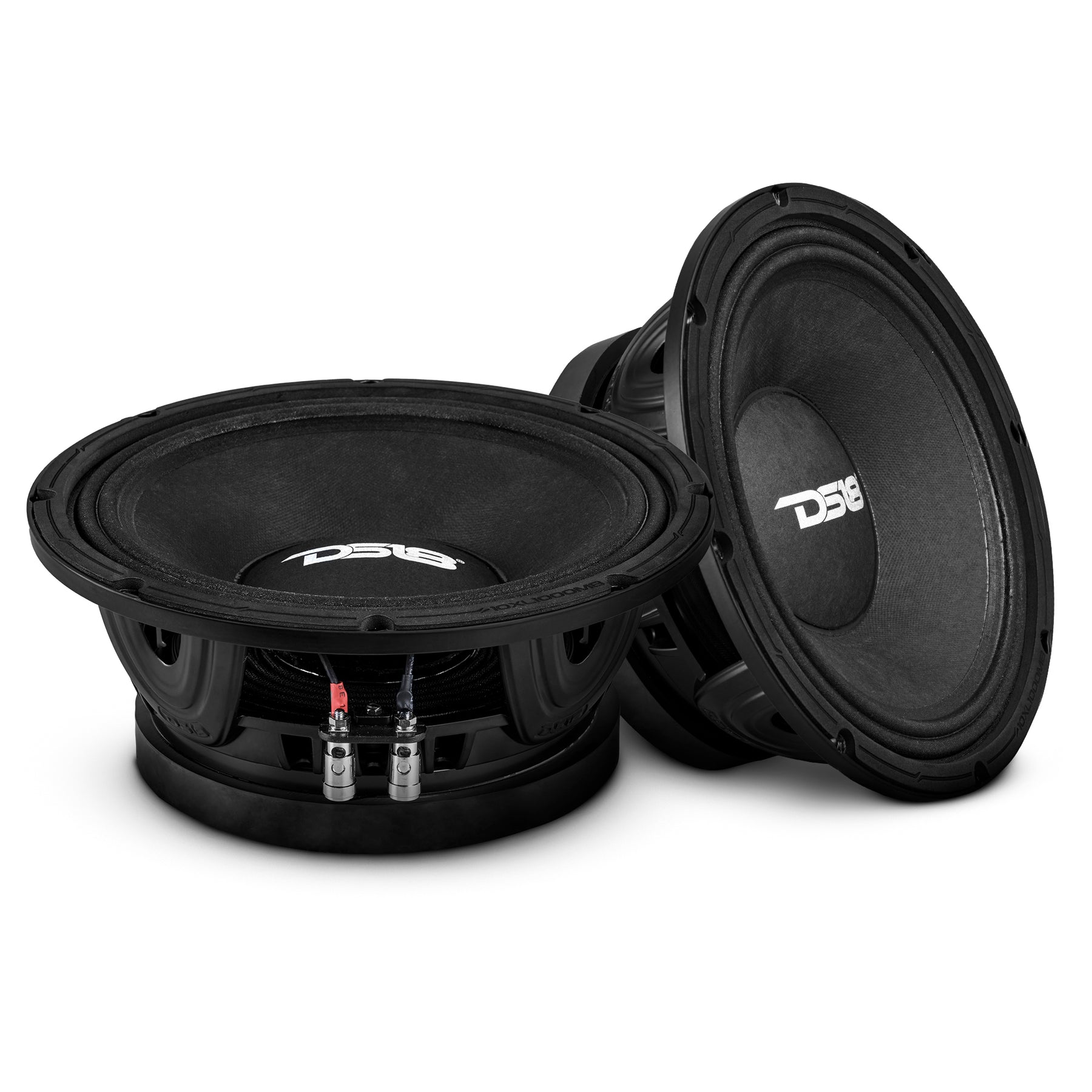

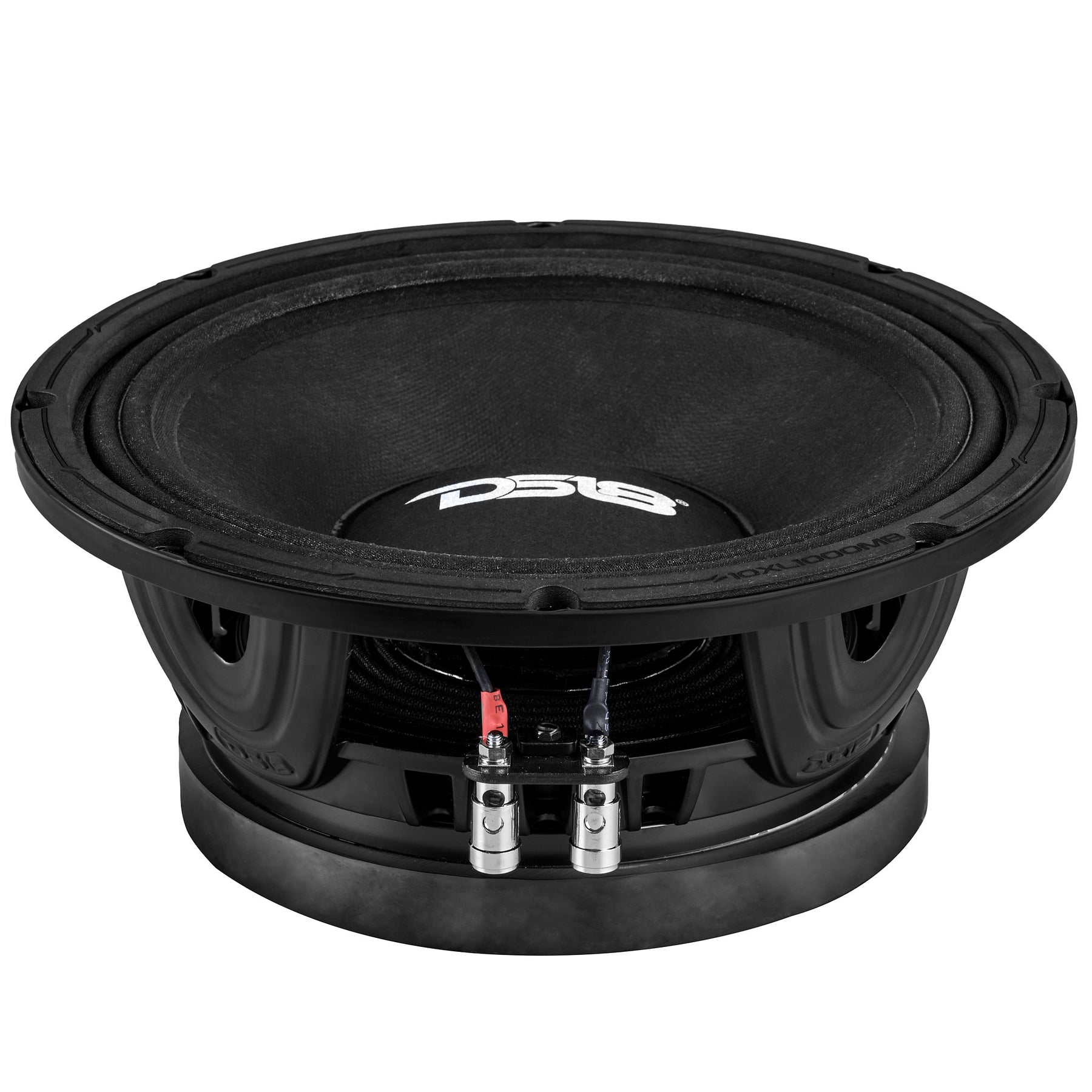

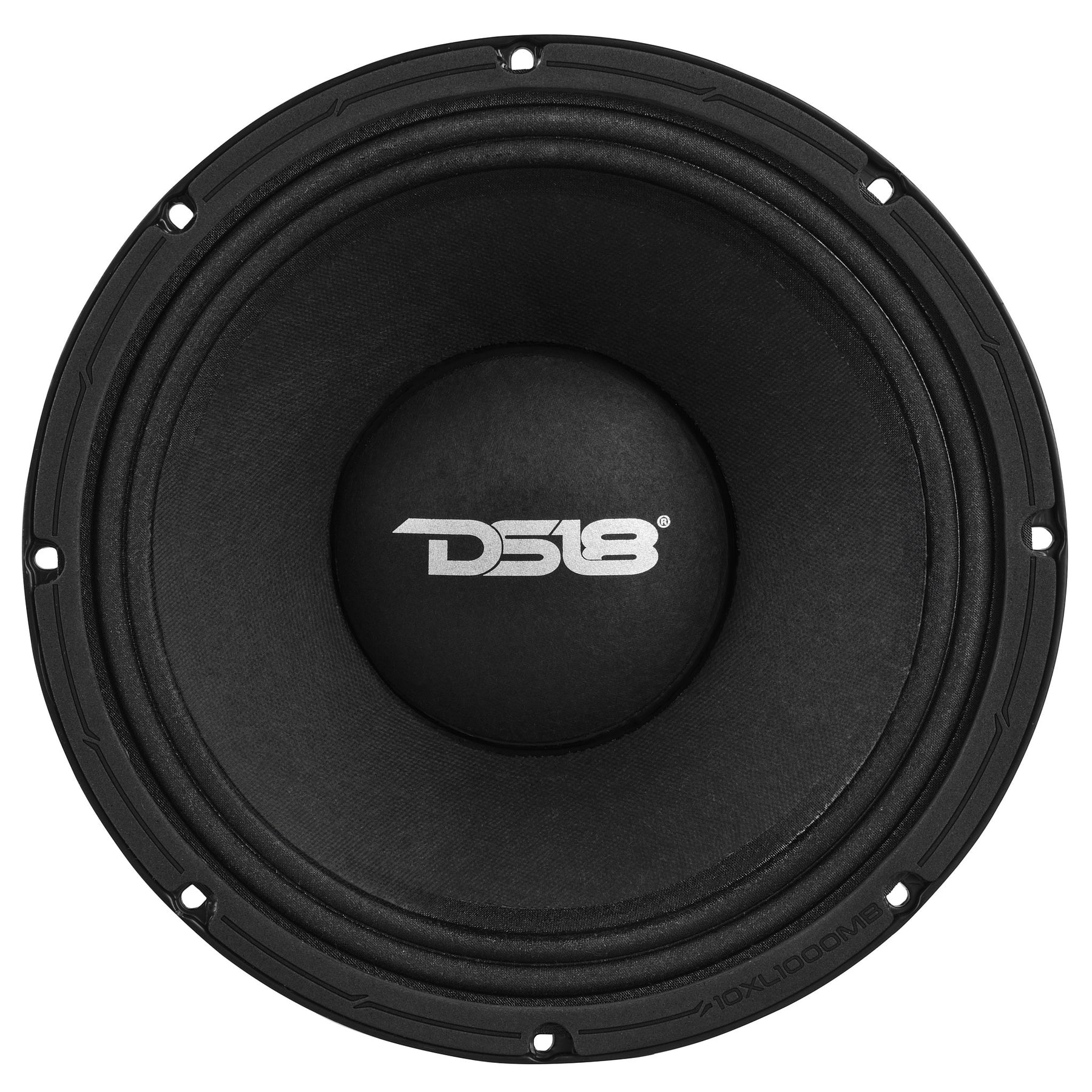

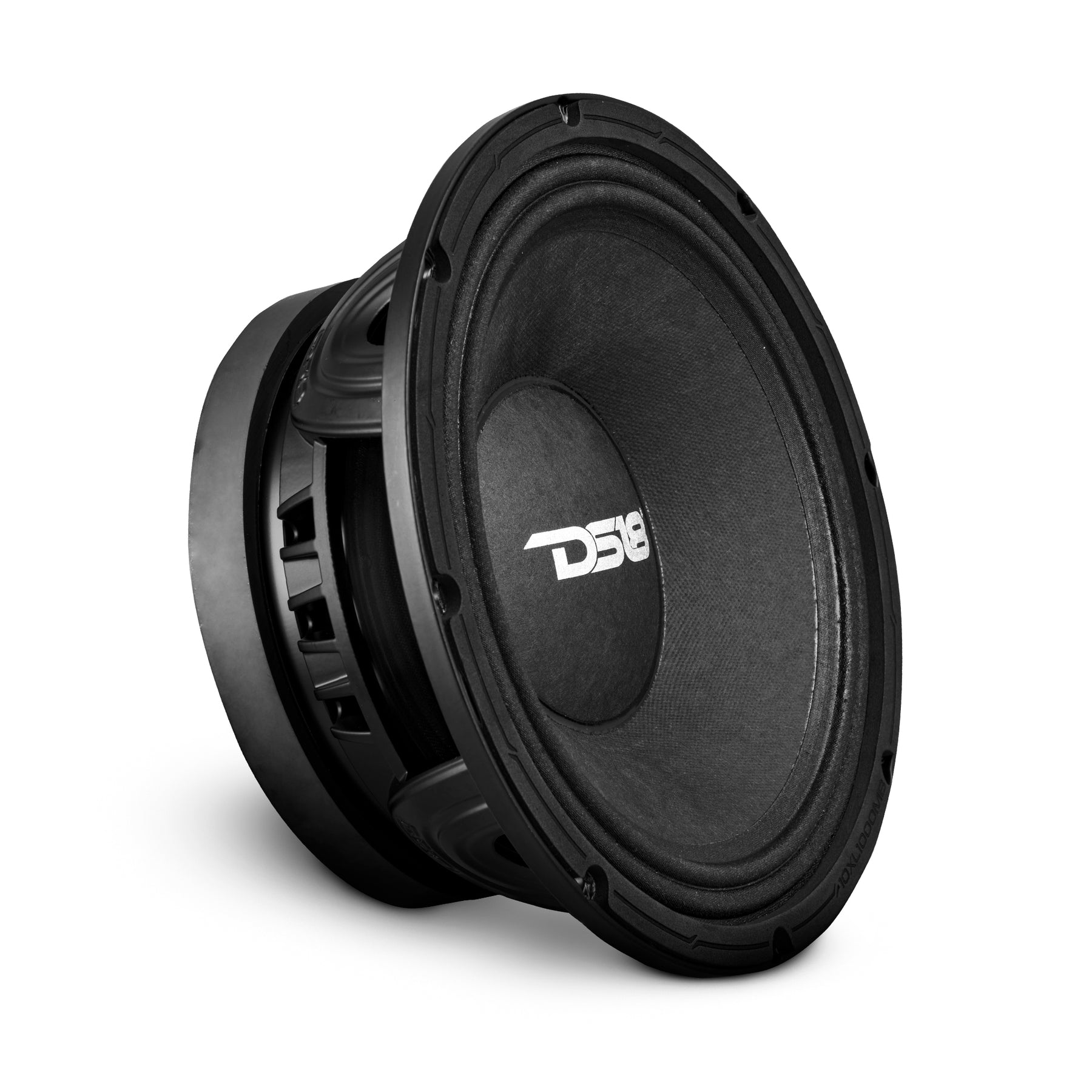

The DS18 10XL1000MB is a 10″ XL-series mid-bass loudspeaker engineered for powerful mid-bass output with high efficiency. Available in both 4 ohm (10XL1000MB-4) and 8 ohm (10XL1000MB-8) impedance options, these drivers deliver 500 W RMS continuous power and 1000 W peak power handling — giving you punchy lows and excellent control in car audio systems, pro installations, or custom builds.
Specifications
| Specification | Details |
|---|---|
| SKU | 10XL1000MB-4 |

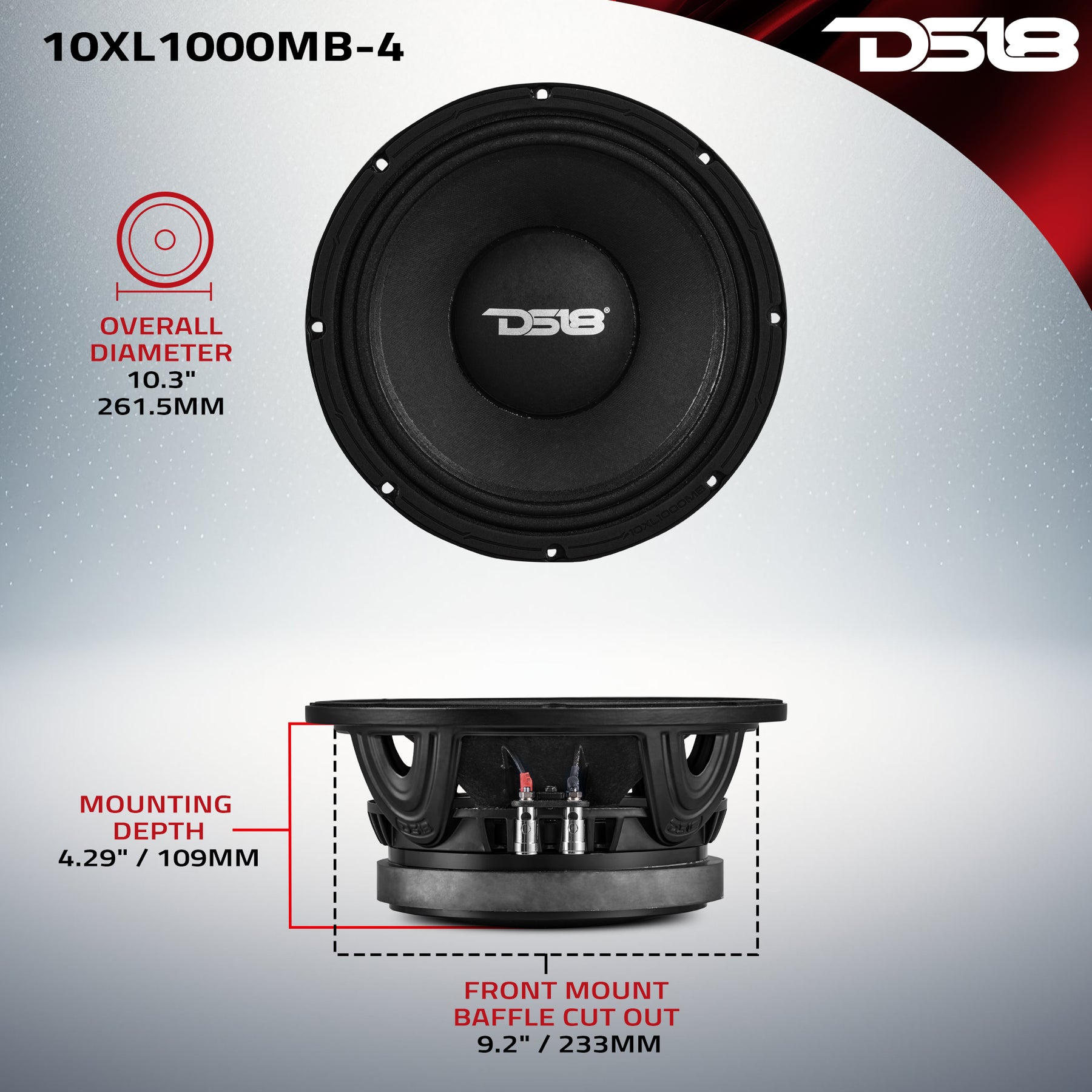

| Nominal Diameter | 10″ / 254 mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 500 W |
| Maximum Power Handling | 1000 W |
| Sensitivity (1W/1M) | 99.5 dB |
| Frequency Response | 75 Hz – 5 kHz |
| Recommended High-Pass Crossover | 100 Hz |
| Sold In | Single |
| Grill Included | No |
Features
| Feature | Availability |
|---|---|
| Interleaved Sandwich Voice Coil (ISV) | Yes |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | No |
| Cone Shape | Exponential |
| Speaker Terminals | Push 8ga (4.7 mm) |
Motor Specifications
| Specification | Details |
|---|---|
| Voice Coil Diameter | 3″ / 76 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW (2 Layers IN / OUT) |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Spider Diameter | 5.5″ / 139.7 mm |
| Leads Type | Direct to Cone |
| Basket Material | Aluminum |
| Basket Color / Finish | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 80 Oz |
| Displacement Volume | 0.4 L / 0.0141 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas | 36.6 L / 1.292 ft³ |
| Xmax (One Way) | 2 mm |
| Fs | 68 Hz |
| Qms | 3.69 |
| Qes | 0.18 |
| Qts | 0.172 |
| Mms | 29.64 g |
| Cms | 0.21 mm/N |
| BL | 14.2 |
| Le | 0.27 mH |
| Sd | 346.36 cm² |
| Re | 3.2 Ohms |
| Mmd (Without Air) | 26 g |
Product Overview
10” Mid-Bass Loudspeaker 500W RMS 4-Ohm
DS18’s 10XL1000MB-4 is a high-performance speaker that sets a new standard for premium quality audio.
DS18’s 10XL1000MB-4 has an impressive nominal diameter of 10 inches, paired with a 4-ohm nominal impedance guaranteeing compatibility with a variety of car audio systems. The sensitivity of 99.5dB means that even at high volumes, your music will be distortion-free. Featuring an RMS power handling of 500W and a peak at 1000W, this speaker is built for powerful sound and crystal-clear clarity.

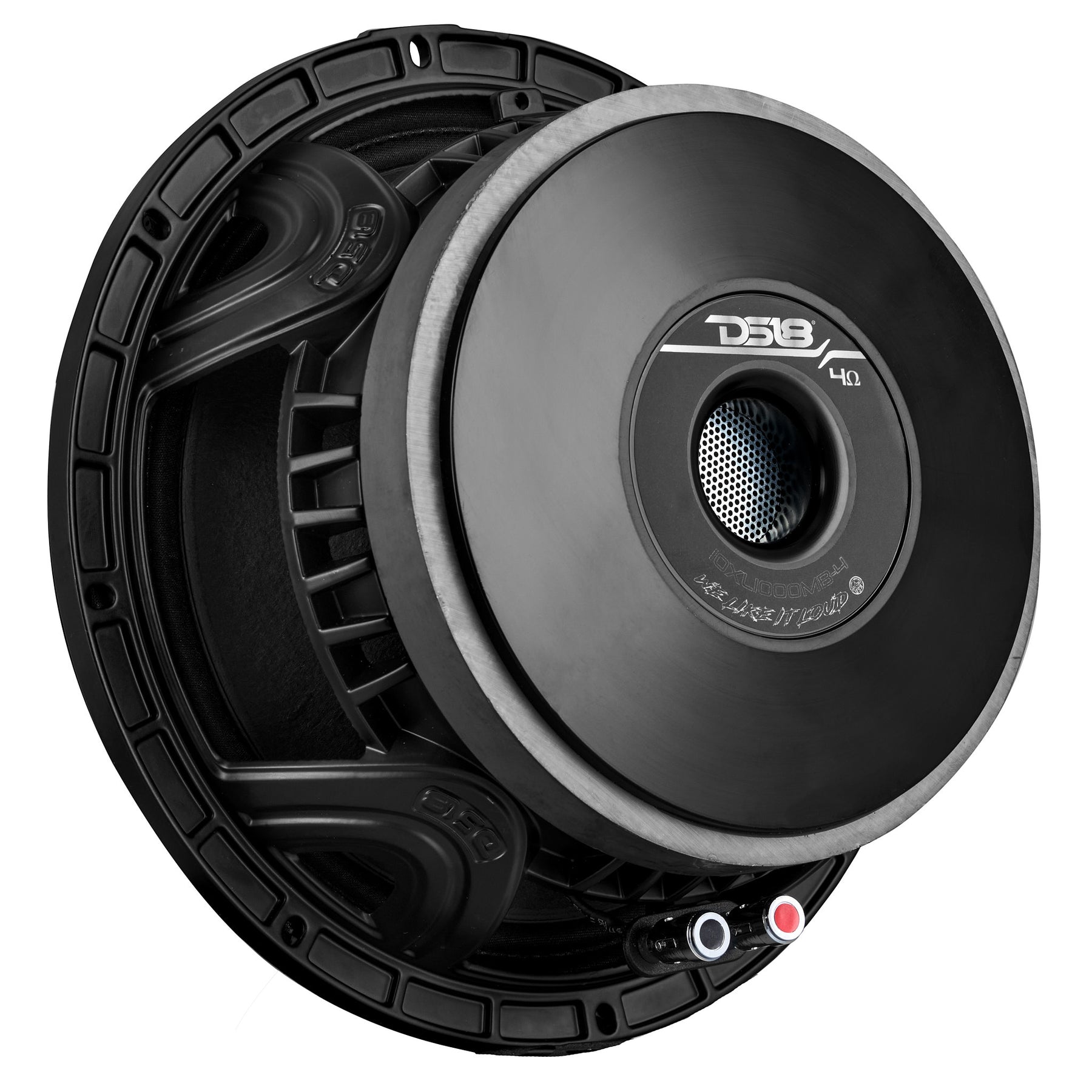

The heart of this beast lies in its motor, featuring a 3″ voice coil optimized for thermal resistance and conductivity. One of the most remarkable features of this premium unit is its Interleaved Sandwich Voice Coil (ISV). Combined with demodulating rings, DS18’s 10XL1000MB-4 guarantees precise control and astounding durability. Its aluminum basket, finished in sleek satin black, not only adds to the aesthetic but also provides structural integrity for the powerful ferrite magnet weighing 80 Oz.

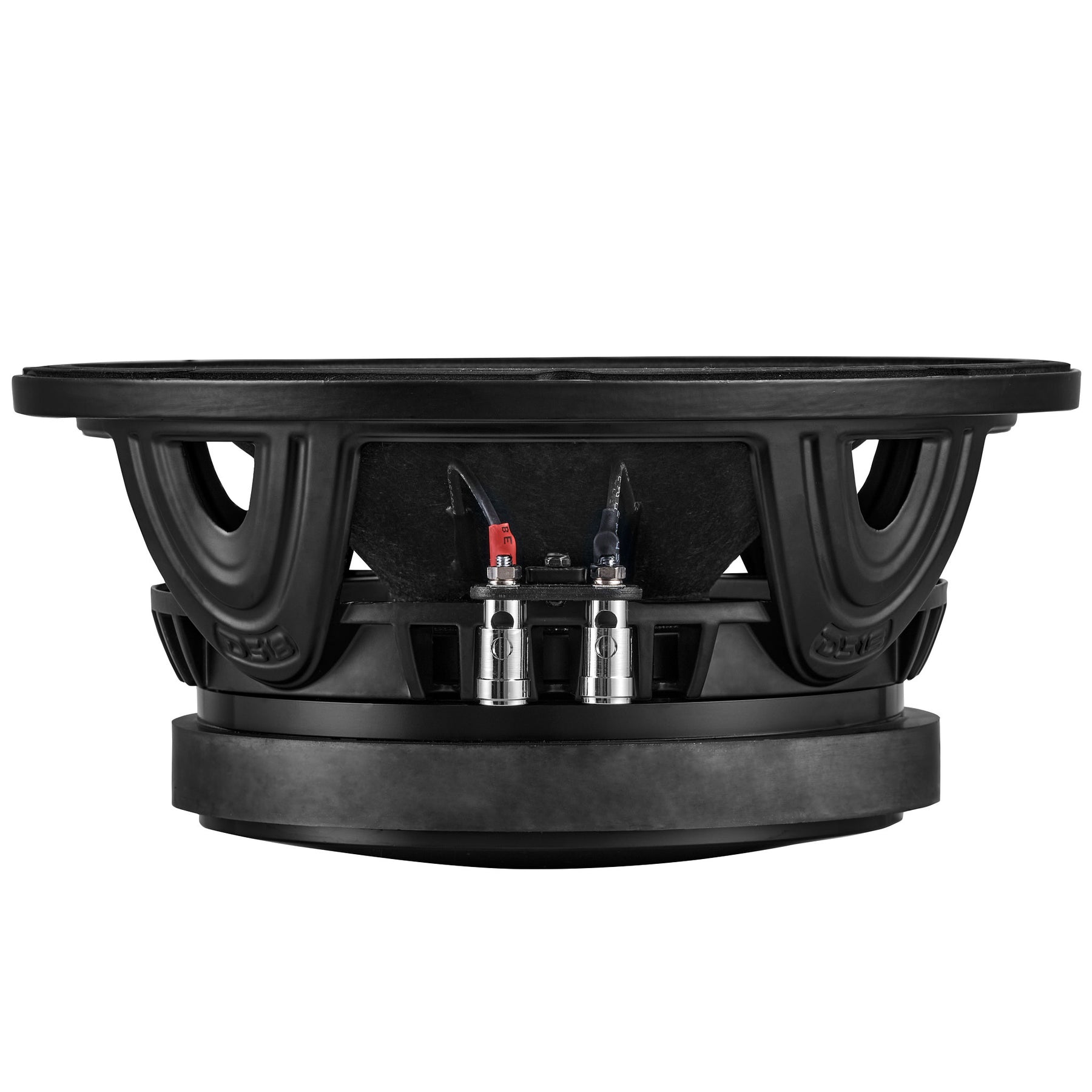

Installation is made straightforward with the 8GA push terminals engineered for secure connections, consistent performance, and a perfect fit into your vehicle.
