Description

DS18 10OCT500-8

The 10OCT500-8 is a 10″ professional mid-bass loudspeaker engineered for high-efficiency output and powerful midrange performance. With an 8-ohm impedance, it delivers tight and punchy mid-bass along with clear vocals, making it ideal for pro audio systems, PA setups, car audio upgrades, and compact SPL builds. Its reinforced cone, durable frame, and high-temperature voice coil ensure consistent performance even under high-volume and demanding conditions.


Specifications

Category Specification
SKU 10OCT500-8
Nominal Diameter 10″ / 254 mm
Nominal Impedance 8 Ω
RMS Power Handling 500 W
Maximum Power Handling 1000 W
Sensitivity (1W/1m) 100 dB
Frequency Response 40Hz–8KHz
Recommended High-Pass Crossover 80 Hz

Motor / Voice Coil Specifications
Feature Specification
Voice Coil Diameter 2.6″ / 66 mm
Voice Coil Former Material TIL
Winding Material CCAW
Basket Material Aluminum
Magnet Weight 62.3 oz

Thiele & Small Parameters
Parameter Value
Equivalent Volume (Vas) 50.96 L / 1.8 ft³
Excursion (Xmax) 8 mm
Free Air Resonance (Fs) 90 Hz
Mechanical Factor (Qms) 14.77
Electrical Factor (Qes) 0.547
Total Factor (Qts) 0.527
DC Resistance (Re) 5.68 Ω

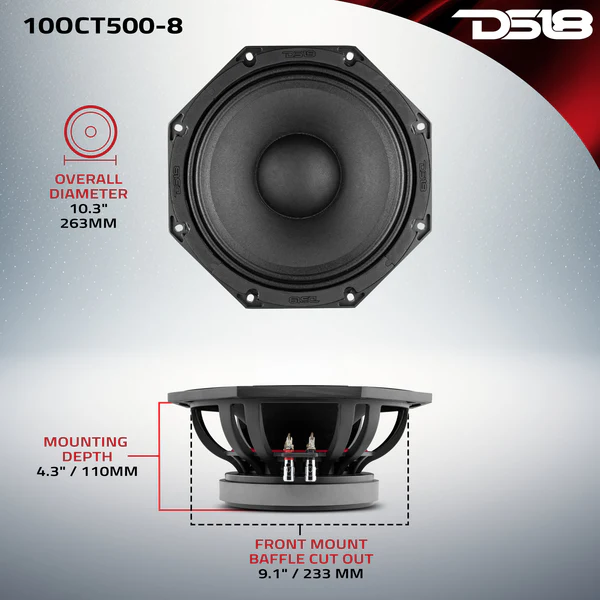

Measurements
Dimension / Feature Value
Overall Diameter 10.3″ / 263 mm
Front Mount Baffle Cutout 9.1″ / 233 mm
Mounting Depth 4.3″ / 110 mm
Overall Depth 4.8″ / 124 mm
Product Weight 13 lbs
Product Dimensions (W x L x H) 12 x 12 x 5.75 in
Master Carton Weight 27.5 lbs
Master Carton Dimensions 12.75 x 12.75 x 12.75 in
Quantity per Master Carton 2
Sold In Piece

Product Overview

PRO 10” Octagon Mid-Range Loudspeaker 1000W MAX 8-Ohm

Get your system in shape with DS18’s 10OCT500-8! This speaker’s unique octagonal shape offers a wider range of frequency response compared to traditional round speakers, reproducing sounds as low as 40Hz and as high as 8KHz, giving you an incredibly tangible soundstage that increases the quality and feel of the music produced by them.
The high sensitivity rating of 100dB on the DS18 10OCT500-8 PRO Octagon Mid-Range Loudspeaker helps it efficiently convert power into sound. This results in a loud and clear output that can easily fill any room. The speaker’s sensitivity also allows it to deliver exceptional sound quality even at lower volumes, making it ideal for both casual listening and high-intensity sound experiences.
In addition, the DS18 10OCT500-8’s high power handling ratings of up to 500W RMS and 1000W MAX ensure that the speaker can handle large amounts of power without distortion. This means that you can turn up the volume as loud as you want without worrying about damaging the speaker or compromising sound quality. With these power handling ratings, the DS18 10OCT500-8 is capable of delivering high-energy sound that is perfect for parties, concerts, and other events where volume is crucial.
But the benefits of the DS18 10OCT500-8’s octagonal shape go beyond just looks and sound quality. Its unique shape also makes it easier to organize and install in your system. The octagonal shape of the speaker allows it to be aligned more easily and accurately, ensuring that the sound is distributed evenly. This makes it an ideal choice for sound engineers and audiophiles who demand precision and accuracy in their sound systems.

Reviews

There are no reviews yet.

Be the first to review “DS18 10OCT500-8”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What type of speaker is the 10OCT500-8?

A1: It is a 10-inch professional mid-bass loudspeaker built for strong midrange and mid-bass output.

Q2: What is the impedance of this speaker?

A2: The 10OCT500-8 features an 8-ohm impedance, compatible with most pro audio and PA amplifier setups.

Q3: Can this speaker be used in car audio systems?

A3: Yes, it works well for custom car audio builds, PA systems, and SPL-oriented setups.

Q4: Does it produce deep bass?

A4: It is optimized for mid-bass and midrange frequencies. Pairing with a subwoofer is recommended for deeper low-end.

Q5: Is an external amplifier required?

A5: Yes, a quality external amplifier is recommended to achieve optimal output and clarity.
