Description

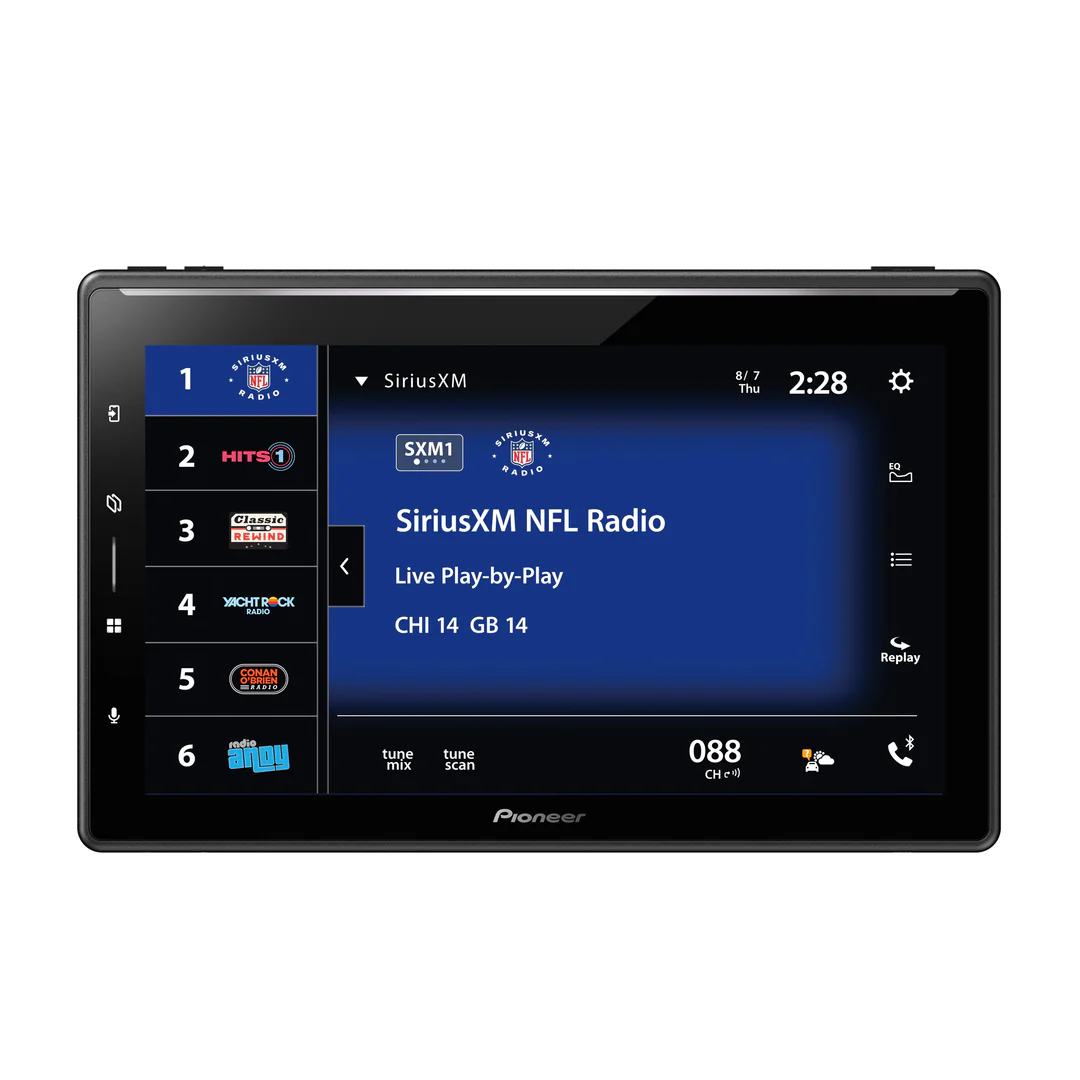

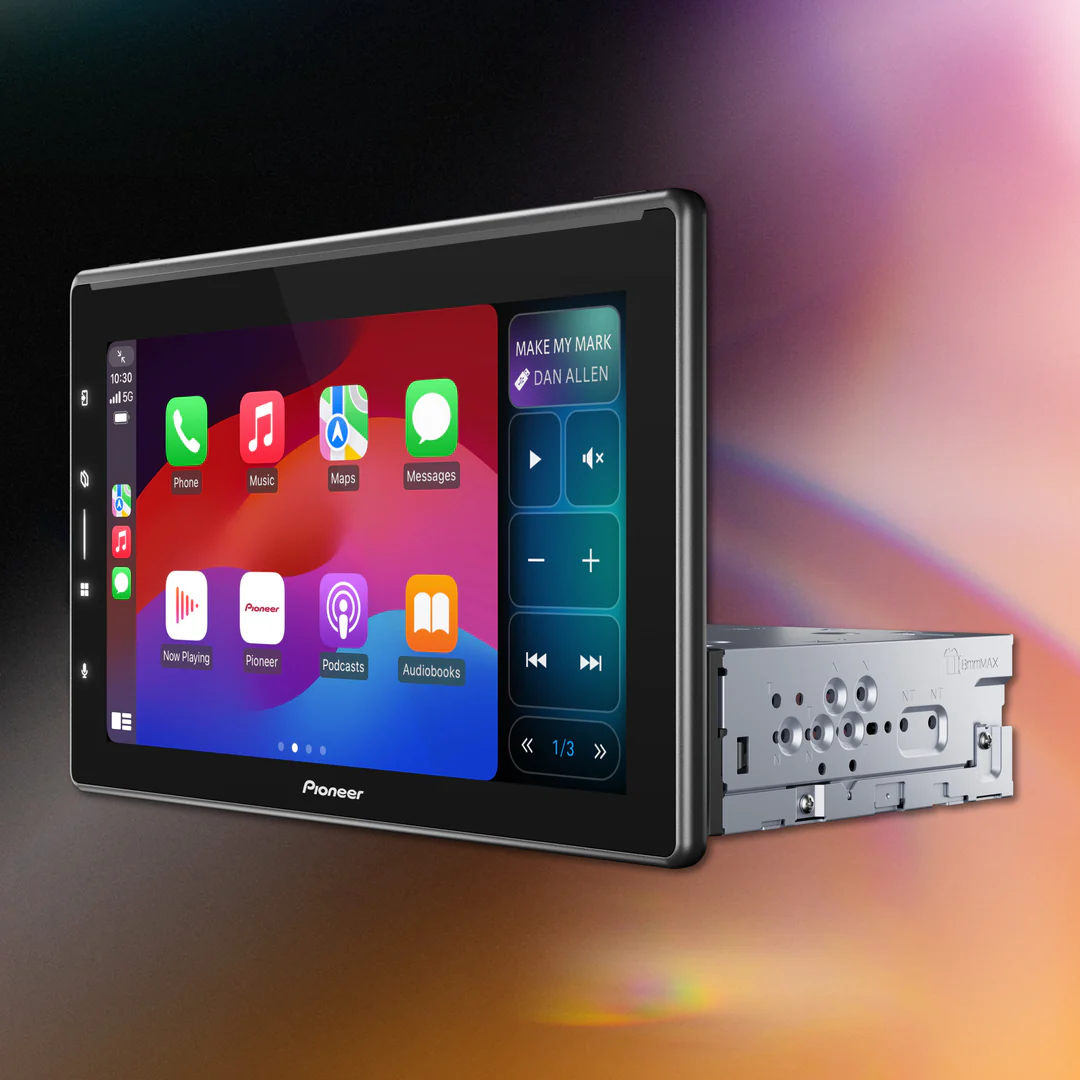

Pioneer DMH‑WT6000NEX

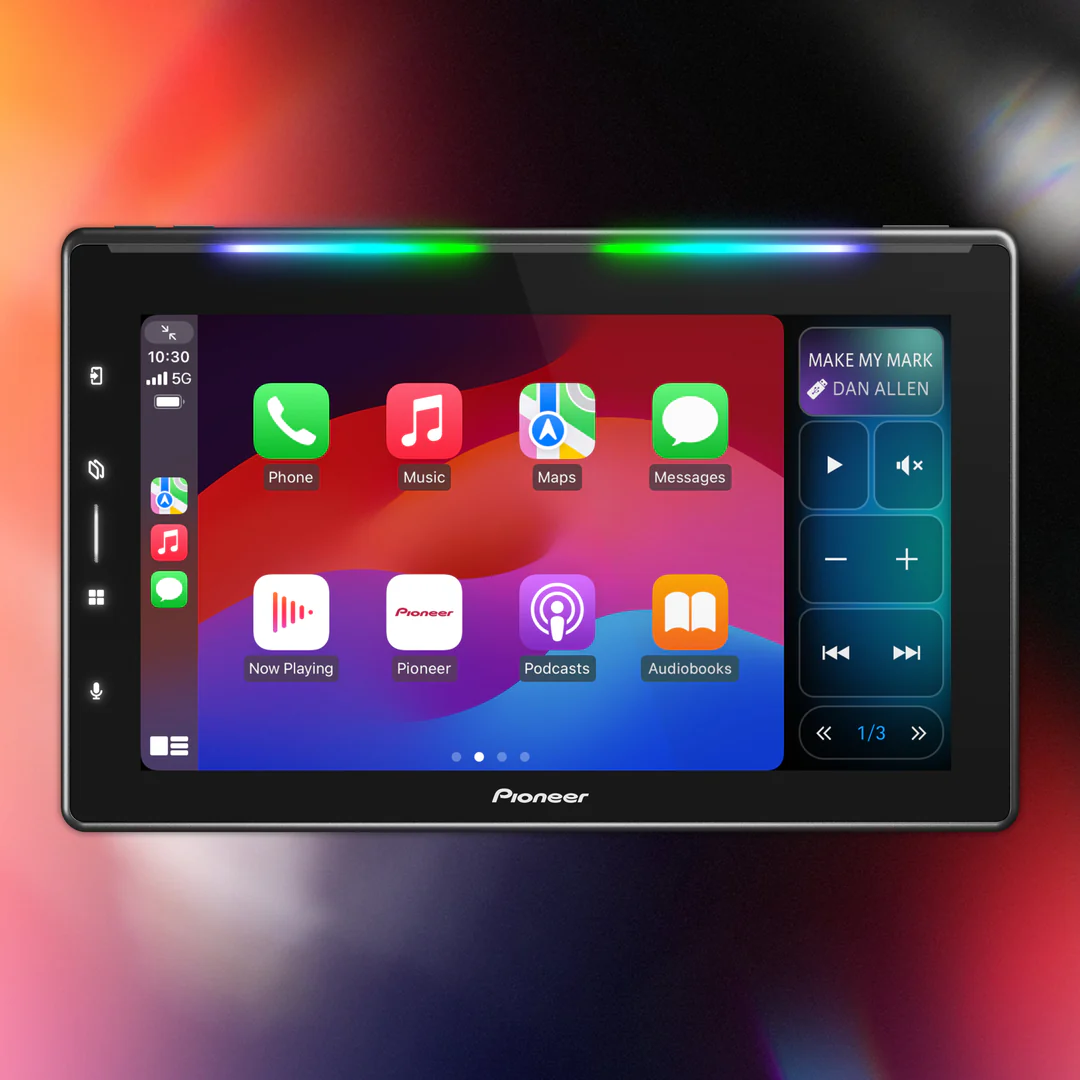

The Pioneer DMH‑WT6000NEX is a premium floating‑screen digital multimedia receiver featuring a 10.1‑inch HD capacitive touchscreen that mounts in the dash via a single‑DIN chassis while providing a large floating display for maximum visibility. It supports both wireless and wired Apple CarPlay® and Android Auto®, as well as Bluetooth® for hands‑free calling and audio streaming. The receiver includes six‑channel 4‑volt RCA preamp outputs for integration with external amplifiers and a built‑in amplifier for direct speaker drive. Additional features include HD Radio™, SiriusXM readiness, and a customizable “Luminous Bar” lighting effect that syncs with music or vehicle signals. The screen mount is adjustable for tilt and position, making it compatible with a wide variety of vehicle dashboards, while the intuitive interface allows easy control of media, smartphone apps, and vehicle settings.
Specifications
PRODUCT PERFORMANCE
| Specification | Details |
|---|---|
| Continuous Power Output | 22 W x 4 Channel |
| Load Impedance Allowance | 4 Ω (4 Ω to 8 Ω Allowable) |
| Maximum Power Output | 50 W x 4 Channel (4 Ω) |
| RCA Preamp Outputs | 6 Channel |
| RCA Preout Voltage | 4 V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4 Channel (4 Ω) |
GENERAL
| Feature | Details |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Remote Control | Wireless control with PxLink |
| Steering Wheel Control Ready | Yes (Adapter Sold Separately) |
DISPLAY
| Feature | Details |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 display colors, 112 key colors |

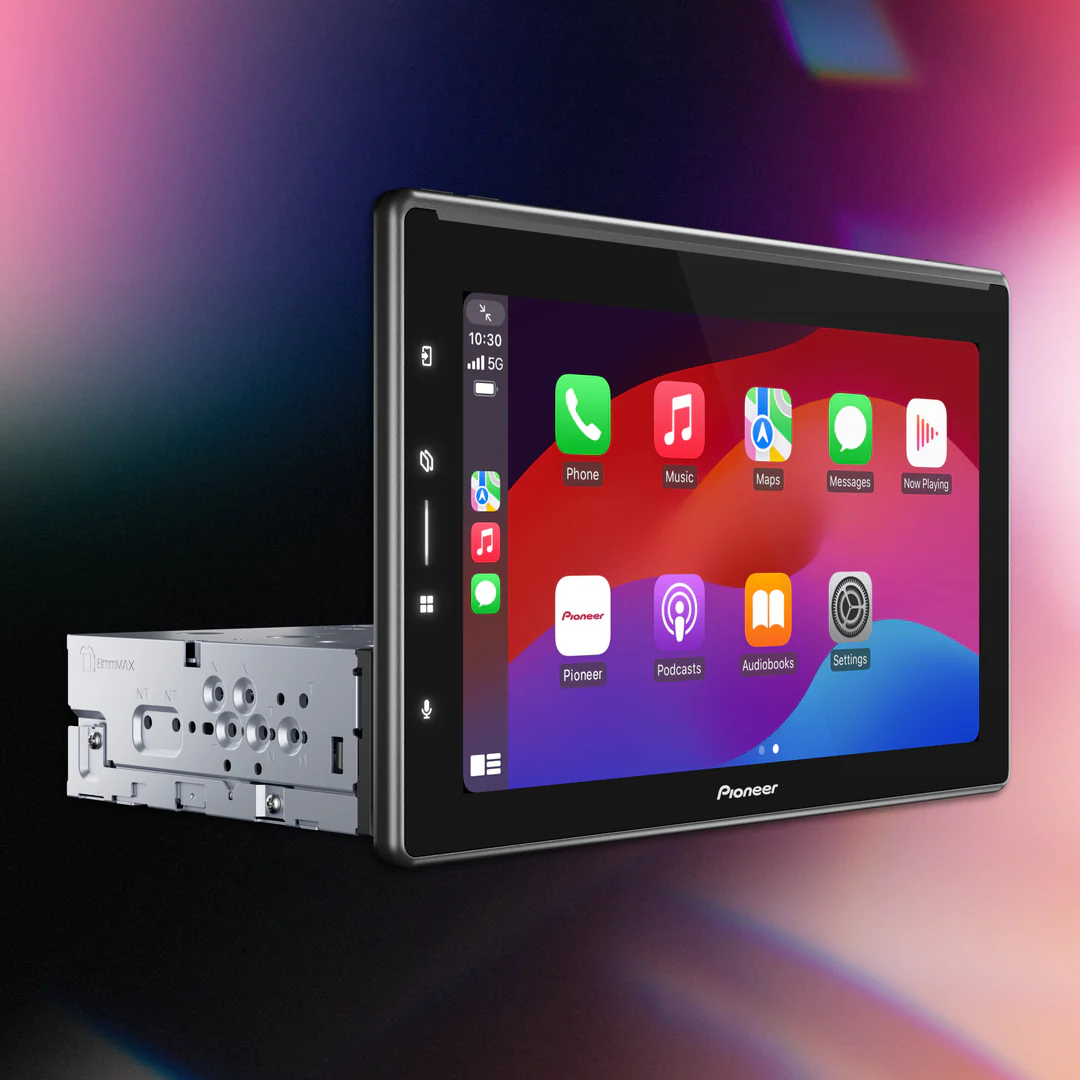

| Device (Non-DIN/Modular Unit) | 1-DIN, Floating |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
| Display Off Mode | Yes |
| Home Screen Customization | Yes |

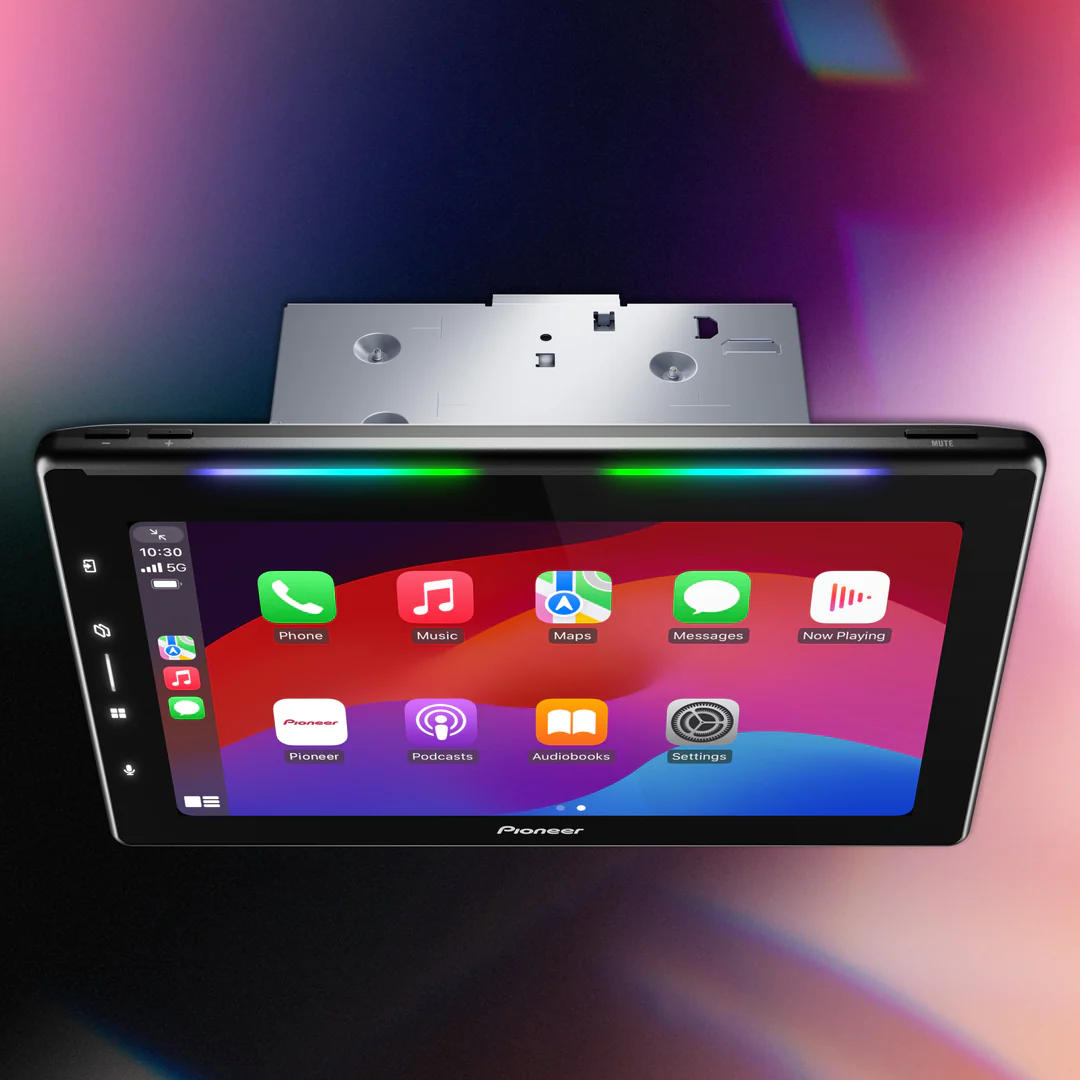

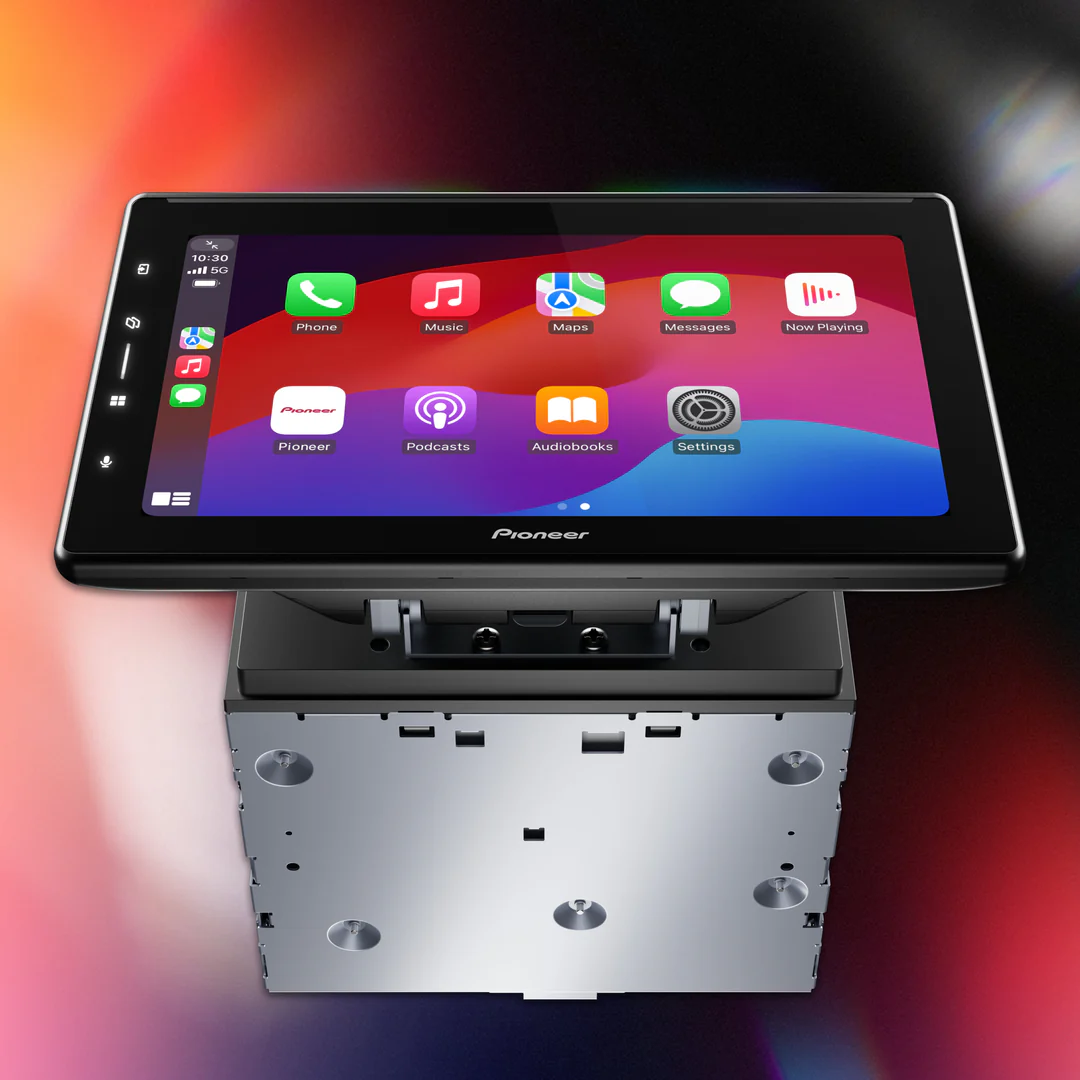

| Monitor Mechanism | Adjustable, Floating |
| Resolution | HD (1280 x 720) |
| Screen Size/Aspect Ratio | 10.1″/16:9 |
| Touch Screen | Capacitive |
NAVIGATION
| Feature | Details |
|---|---|
| External GPS Antenna | Yes |
BLUETOOTH
| Feature | Details |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Dual Phone Connection | Yes |
| Hands-Free | Yes |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
TUNER
| Feature | Details |
|---|---|
| Best Station Memory | Yes |
| HD Radio™ | Built-in, Artist Experience, Multicasting |
| Hybrid Radio | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |

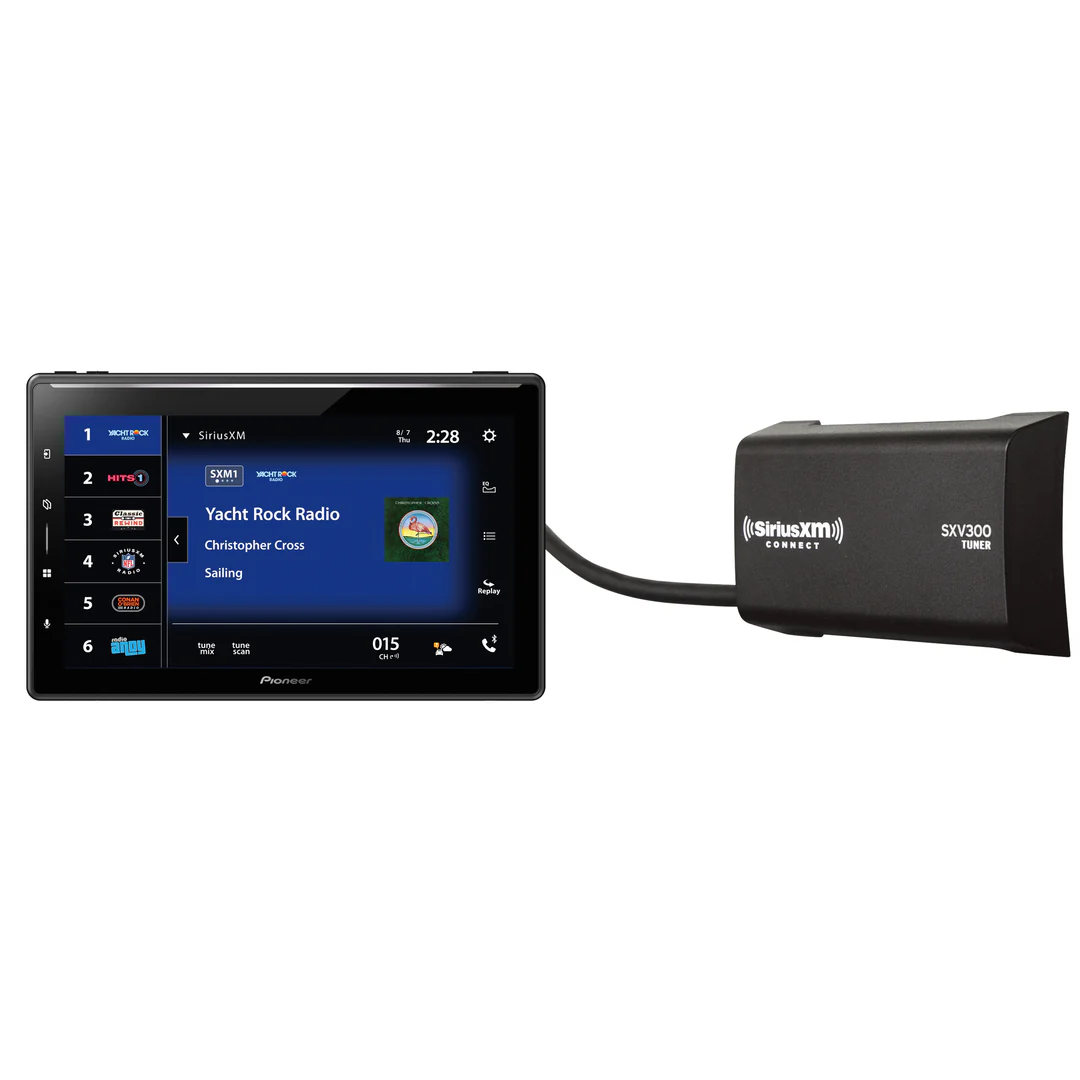

| SiriusXM-Ready™ (Tuner Sold Separately) | Yes |
INTEGRATION
| Feature | Details |
|---|---|
| Amazon Alexa | Paired with Pioneer Vozsis |
| Android Auto™ | Wireless Connection or Wired USB Connection |
| Apple® CarPlay | Wireless Connection or Wired USB Connection |
| Mobile Operating System | Android, Apple iOS |
| Music Playback (MTP) | Yes |
| Pandora® | With Apple CarPlay or Android Auto |
| Pioneer App Compatibility | PxLink |
| Siri® Eyes Free (VR) (Internet Required) | iPhone Only |
| Spotify | With Apple CarPlay or Android Auto |
| Voice Control | Yes |
| Weblink | 3.0 |
| Wifi | Tethering, WiFi Hotspot |
DIGITAL MEDIA PLAYBACK
| Feature | Details |
|---|---|
| Audio Playback via USB | MP3, WMA, WAV (Hi-Res), AAC, FLAC (Hi-Res) |
| Audio Video Playback via USB | .avi, .mpg/mpeg, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts |
| Image Display via USB | BMP, JPEG, PNG |
AUDIO
| Feature | Details |
|---|---|
| Advanced Sound Retriever | Mode-1/Mode-2/Off |
| Audio Bass Boost | Yes |
| Auto Sound Levelizer (ASL) | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Network Mode | HPF/Band Pass/LPF |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | Pioneer Dual-Core 48-Bit DSP/DAC |
| Digital Signal Processor | Built-in Pioneer Dual-Core 48-Bit DSP/DAC |
| Dynamic Bass Enhancer | Six Levels |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Listening Position Selector | Yes |
| Loudness | High/Mid/Low/Off |
| Speaker Output | 4-ch |
| Spectrum Analyzer | Yes (Luminous Bar & Background Image) |
| Subwoofer Control | Yes |
| Time Alignment | Manual |
EXPANDABILITY
| Feature | Details |
|---|---|
| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack), Input 3 – 2nd Camera |
| OEM Integration | iDatalink Maestro RR, iDatalink Maestro RR2, Metra Axxess |
| OTA Update Compatible | Yes |
| Parking Assist Lines | Yes |
| USB | Single Rear Type-A (5 V, 1.5 A) |
| USB Direct Control for iPhone® | 5s and newer |
