Description
Pioneer DMH‑T450EX
The Pioneer DMH‑T450EX is a high-impact floating-display digital multimedia receiver featuring a 9″ capacitive touchscreen (1024×600 WSVGA resolution) mounted on a double‑DIN chassis. It offers built‑in Bluetooth® for hands‑free calling and music streaming, supports the WebLink app for access to select phone apps, and integrates voice‑control compatibility via Amazon Alexa when paired with the Pioneer Vozsis® app. Audio‑wise it delivers up to 50 W × 4 peak power, features five 2‑volt preamp outputs, a 13‑band graphic EQ, and high‑resolution audio playback (FLAC up to 24 bit/192 kHz) for serious sound performance. Installation flexibility is enhanced with a floating monitor design allowing tilt and depth adjustment; the unit also includes backup‑camera input and video/AUX connectivity.
Specifications
PRODUCT PERFORMANCE
| Specification | Details |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm |
| RCA Preamp Outputs | 5-ch |
| RCA Preout Voltage | 2 V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Specification | Details |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| Steering Wheel Control Ready | Yes (Adapter Sold Separately) |
DISPLAY
| Specification | Details |
|---|---|
| Anti Glare/Reflection | Yes |
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 key colors, 3 Preset Background Images |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Manual |
| Display Off Mode | Yes |
| Monitor Mechanism | Fixed |
| Resolution | WVGA (1024 x 600) |
| Screen Size/Aspect Ratio | 9″/16:9 |
| Touch Screen | Capacitive |
BLUETOOTH
| Specification | Details |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Hands-Free | Yes |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
TUNER
| Specification | Details |
|---|---|
| Best Station Memory | Yes |
| Local Seek tuning | Yes |
| Presets | 18 FM, 12 AM |
| PS (Preset Scan) | Hide or display radio station name |
| RDS | Yes |
INTEGRATION
| Specification | Details |
|---|---|
| Amazon Alexa | Paired with Pioneer Vozsis |
| Mobile Operating System | Android, Apple iOS |
| Pandora® | Bluetooth Audio Source |
| Pioneer App Compatibility | Vozsis Android, Vozsis iPhone |
| Siri® Eyes Free (VR) | iPhone Only (Internet Required) |
| Spotify | Bluetooth Audio Source |
| Voice Control | Yes |
| Weblink | 3.0 |
DIGITAL MEDIA PLAYBACK
| Specification | Details |
|---|---|
| Audio Playback via USB | AAC, FLAC (Hi-Res), MP3, WAV (Hi-Res), WMA |
| Audio Video Playback via USB | .avi, .mpg/mpeg, .mp4, .mkv, .mov, .flv, .m4v, .ts/.m2ts/.mts, H.263, H.264 |
| Image Display via USB | BMP, JPEG, PNG |
AUDIO
| Specification | Details |
|---|---|
| Audio Bass Boost | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Loudness | High/Mid/Low/Off |
| Speaker Output | 4-ch |
| Subwoofer Control | Yes |
EXPANDABILITY
| Specification | Details |
|---|---|

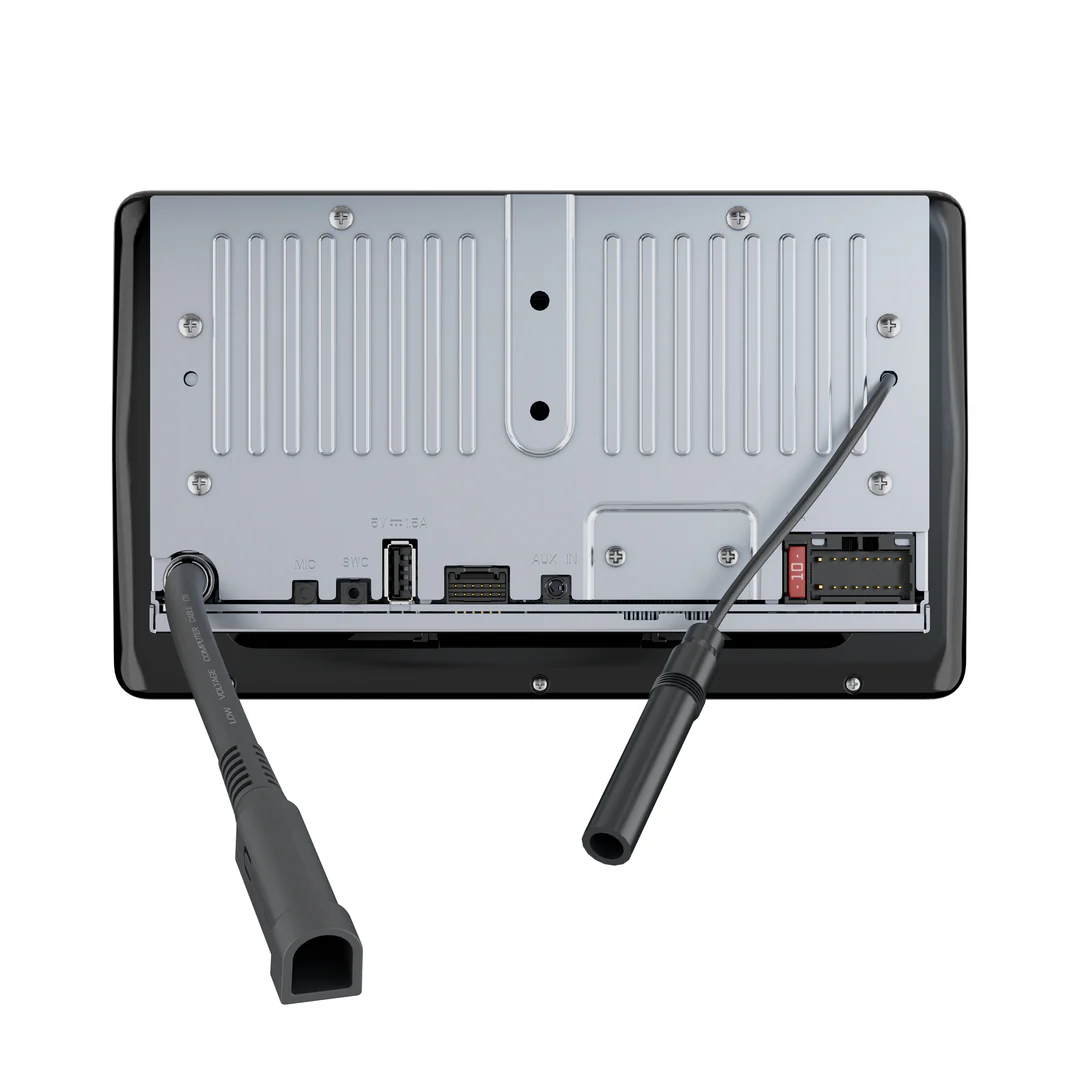

| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack) |
| Firmware upgradability | Yes |
| RCA-Video-Output | Yes |
| USB | Single Rear Type-A (5V, 1.5 A) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product

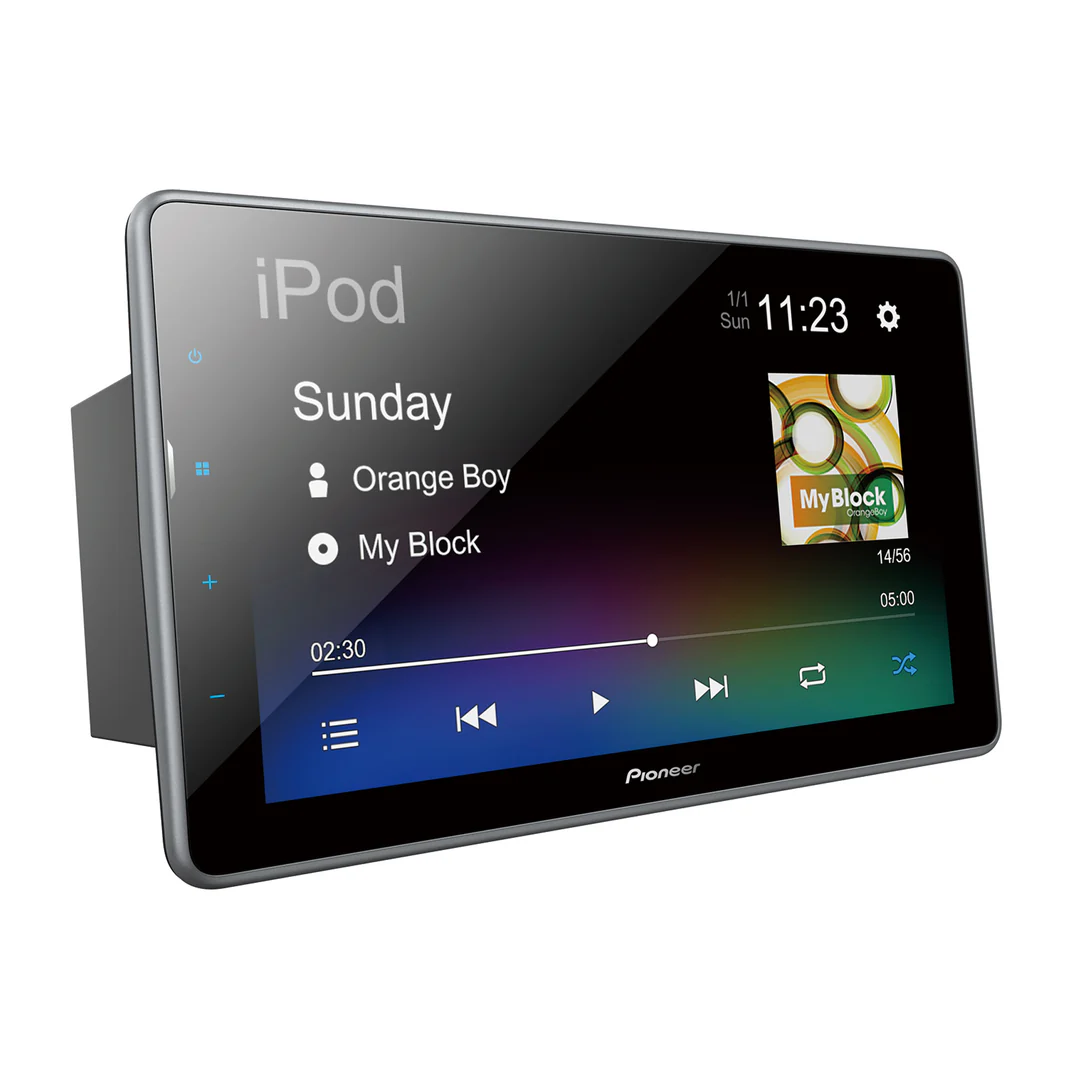

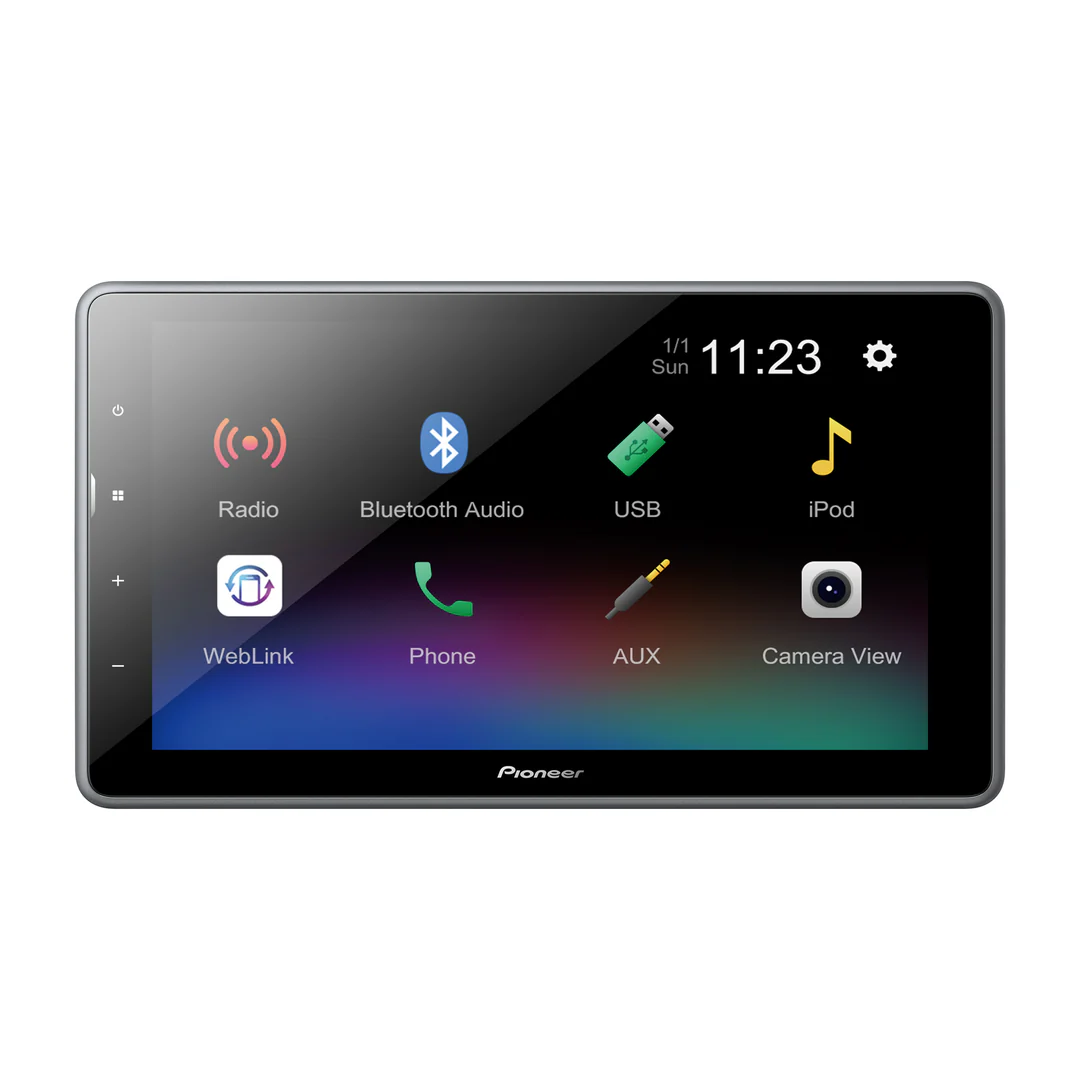

The Pioneer DMH-T450EX digital multimedia receiver offers installation flexibility with its floating 9.0″ capacitive touchscreen HD display. It features the latest connectivity solutions designed especially for today’s smartphone-driven lifestyle. Enjoy built-in Bluetooth® for hands-free calling and audio streaming, audio/video playback from USB, safety features such as backup camera readiness, and much more.

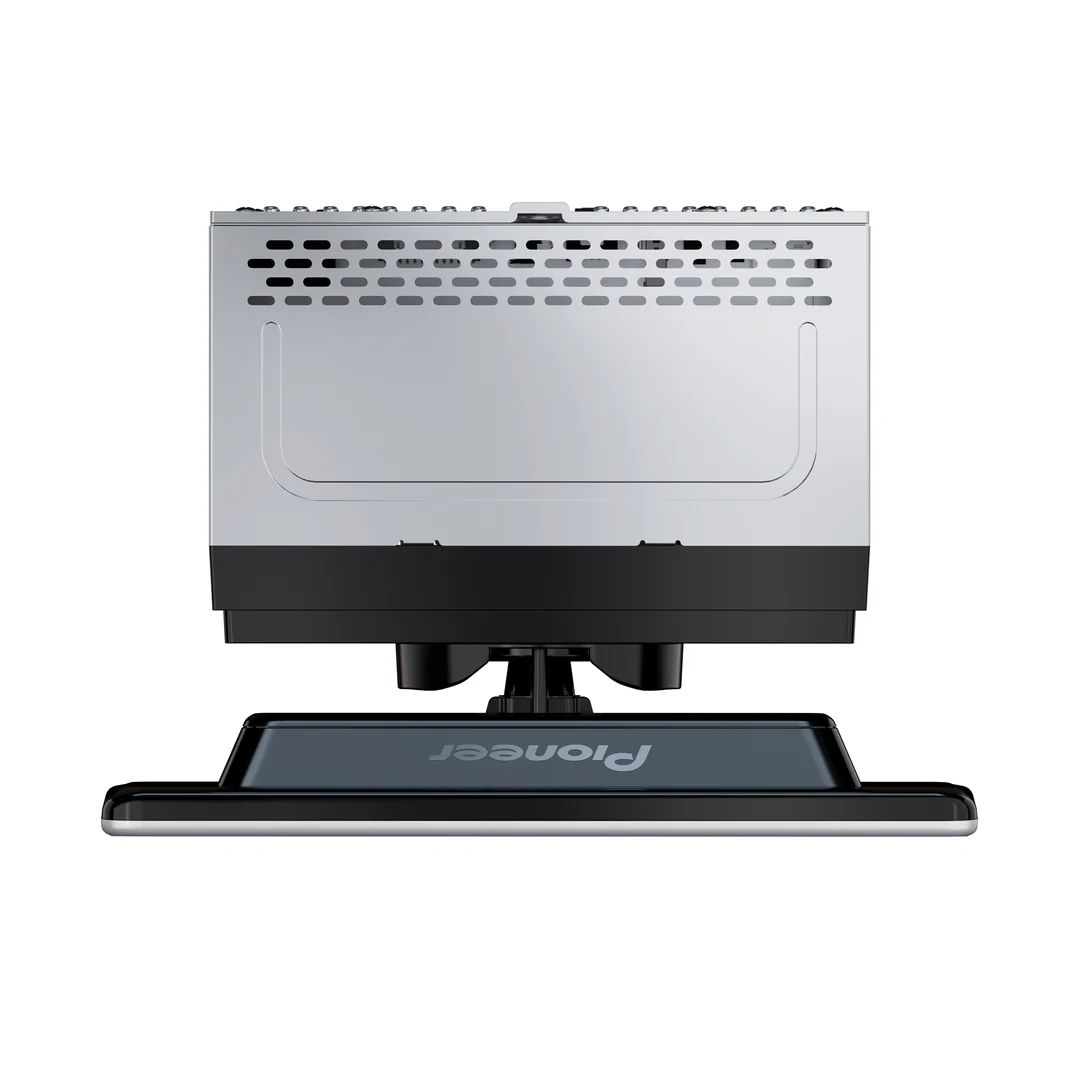

Floating display
The floating display configuration allows a large display to be installed using a universal 2-DIN chassis. The floating screen offers horizontal, vertical, and tilt adjustability to ensure the best fit and usability in the vehicle’s dash.
Weblink® Smartphone Interface (Wired)

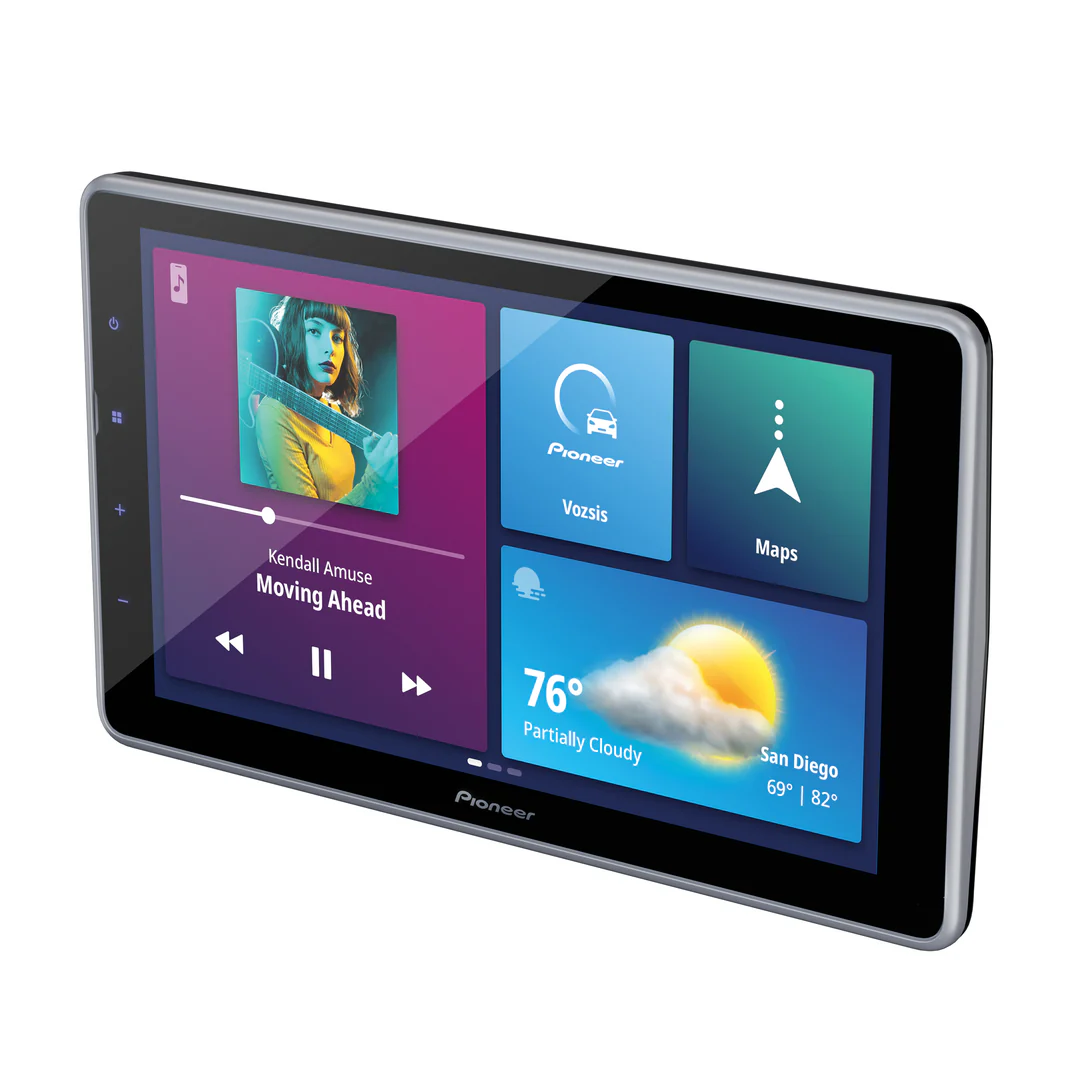

WebLink enables smartphone app projection from many popular Android® and iOS® devices to in-vehicle touch displays. WebLink for Pioneer AV receivers expands in-car entertainment with an amazing array of apps.
Pioneer Vozsis with Alexa app
Invite Amazon’s versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app. With a tap of the touchscreen and your voice, you can access Amazon Prime Music, Audible audiobooks, your Kindle library, Flash Briefings, and more to stay informed and entertained during your drive.
Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Back up camera input (1-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
Wired Remote Input
This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons of your vehicle. (if applicable)
FLAC
Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer’s NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system – put your music on the move.
Audio Equalizer
The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car’s interior acoustics and speaker characteristics as desired. Multiple EQ presets ensure that even users with basic acoustic knowledge can learn and enjoy the benefits of using an equalizer.
