Description

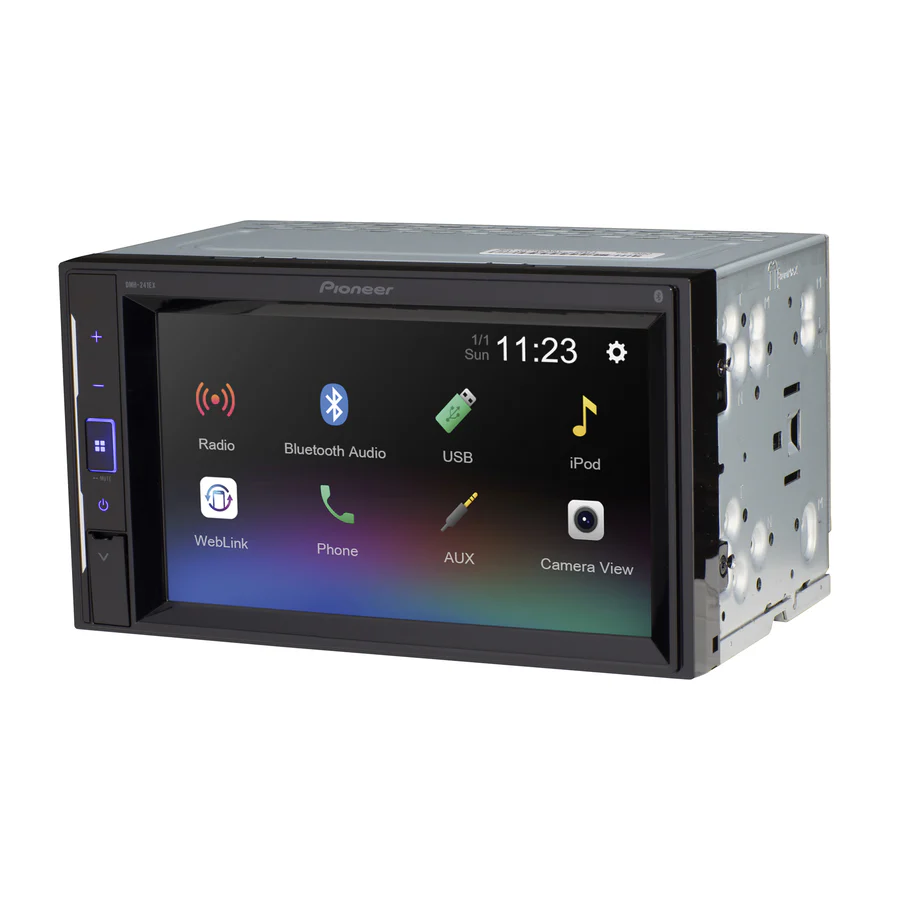

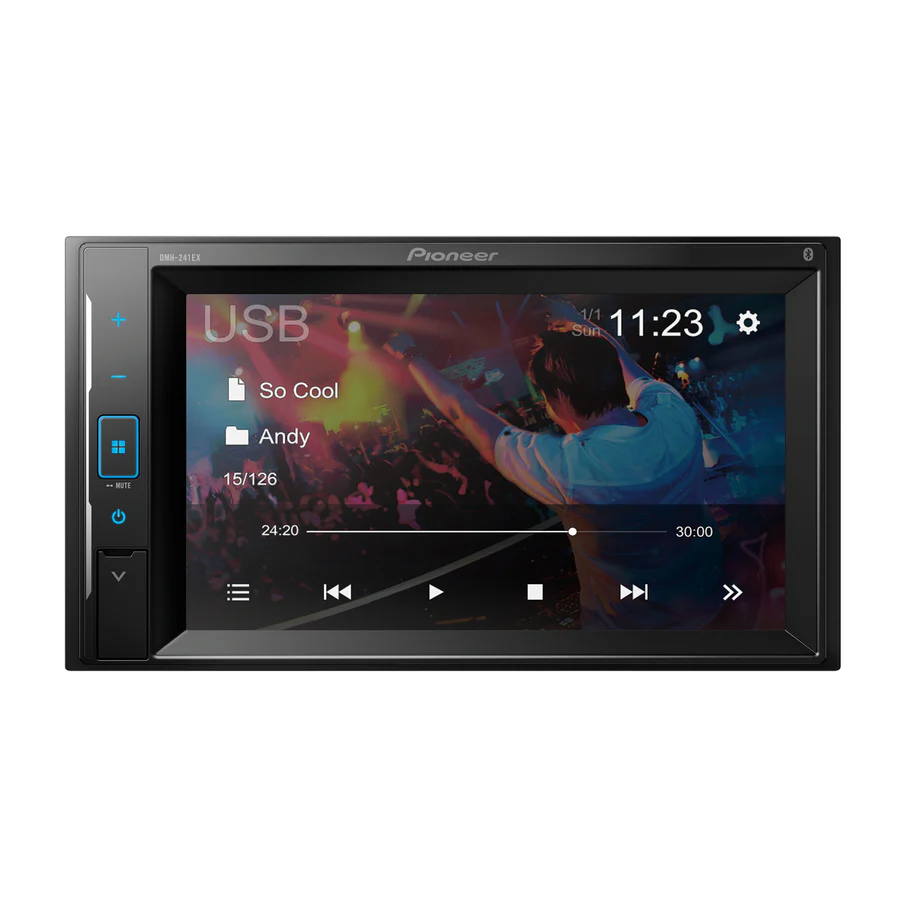

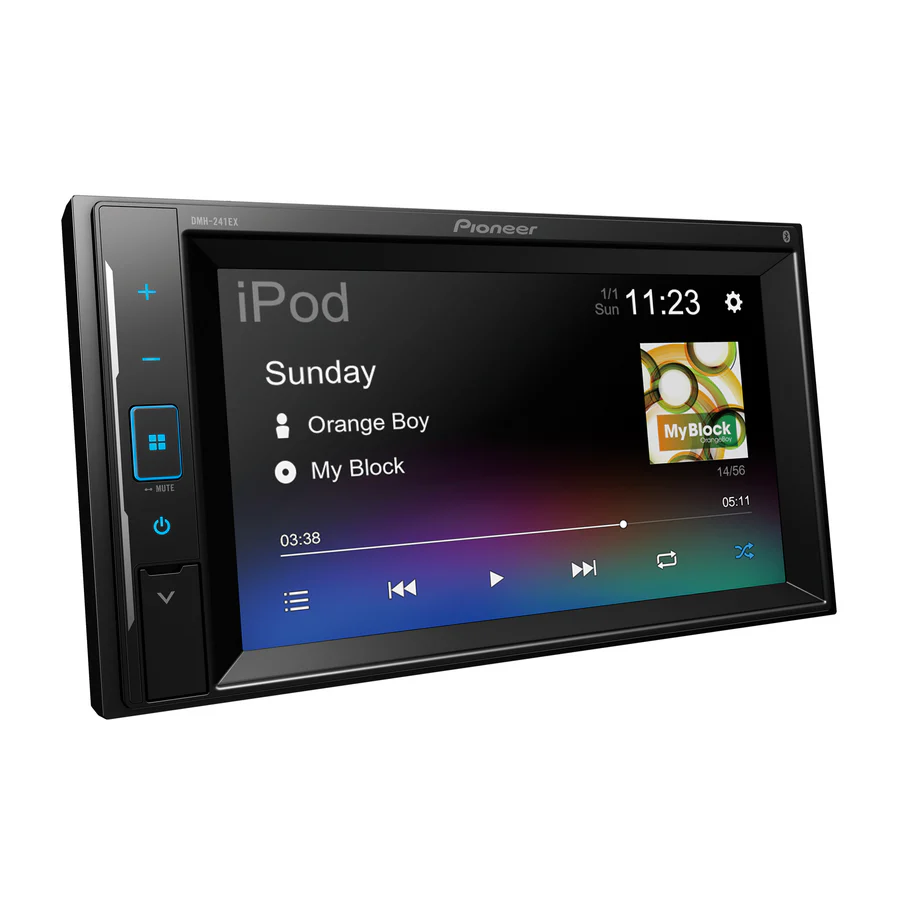

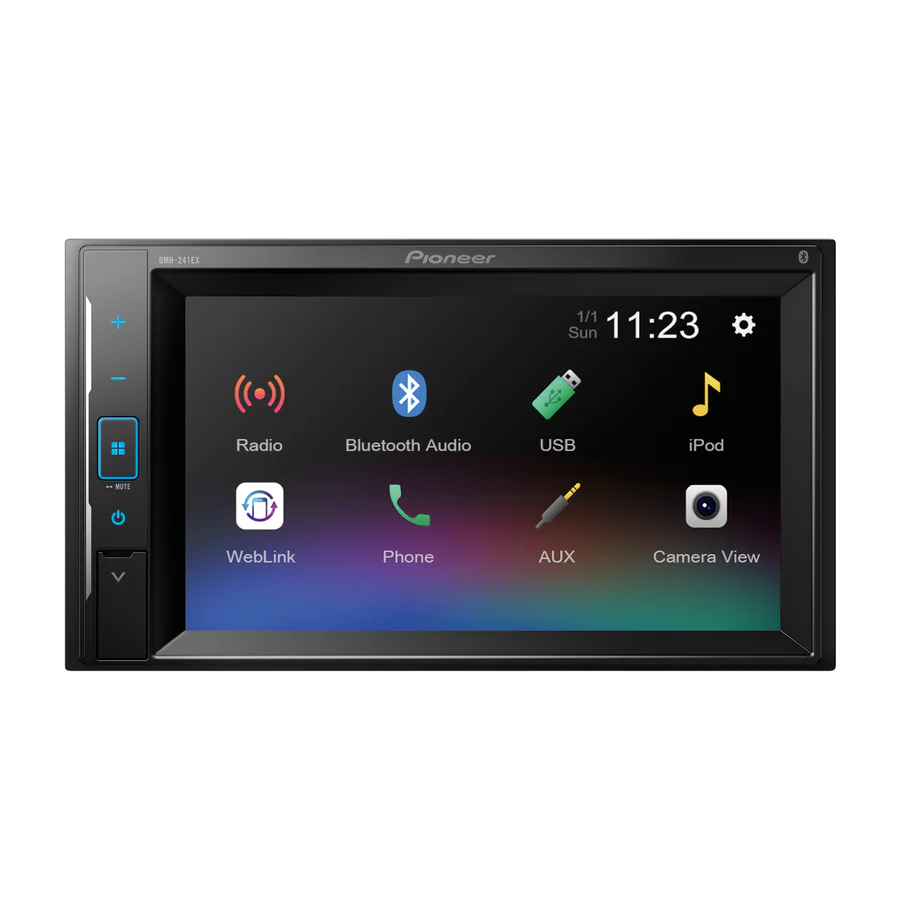

Pioneer DMH‑241EX
The Pioneer DMH‑241EX is a double‑DIN digital‑media receiver featuring a 6.2″ resistive‑touchscreen (800×480 resolution) display, designed for drivers wanting modern connectivity without the complexity of full smartphone‑mirroring systems. It supports built‑in Bluetooth® for hands‑free calls and wireless audio streaming, a USB input for media playback and smartphone charging, and one dedicated rear‑view camera input for backup assistance.The unit also supports the WebLink interface (via USB) and voice‑control through the Vozsis app with Amazon Alexa compatibility. On the audio side, it offers five 2‑volt preamp outputs (front/rear/mono‑sub), high‑ and low‑pass crossovers, and playback support for high‑resolution FLAC files up to 24‑bit/192 kHz.
Specifications
PRODUCT PERFORMANCE
| Specification | Details |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 Ohm |
| RCA Preamp Outputs | 5-ch |
| RCA Preout Voltage | 2 V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 Ohm |
| Specification | Details |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| Remote Control | Included |
| Steering Wheel Control Ready (Adapter Sold Separately) | Yes |
| Specification | Details |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 3 Preset Background Images, Fixed Color – Blue |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Manual |
| Display Off Mode | Yes |
| Monitor Mechanism | Fixed |
| Resolution | WVGA (800 x 480) |
| Screen Size/Aspect Ratio | 6.2″/16:9 |
| Touch Screen | Resistive |
| Specification | Details |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Hands-Free | Yes |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
| Specification | Details |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 6 AM |
| PS (Preset Scan) | Hide or display radio station name |
| RDS | Yes |
| Specification | Details |
|---|---|
| Amazon Alexa | Paired with Pioneer Vozsis |
| Mobile Operating System | Android, Apple iOS |
| Pandora® | Bluetooth Audio Source |
| Pioneer App Compatibility | Vozsis Android, Vozsis iPhone |
| Siri® Eyes Free (VR) (Internet Required) | iPhone Only |
| Spotify | Bluetooth Audio Source |
| Voice Control | Yes |
| Weblink | 2.0 |
DIGITAL MEDIA PLAYBACK
| Specification | Details |
|---|---|
| Audio Playback via USB | AAC, FLAC (Hi-Res), MP3, WAV (Hi-Res), WMA |
| Audio Video Playback via USB | .avi, .mpg/.mpeg, .mp4, .mkv, .mov, .flv, .m4v, .ts/.m2ts/.mts, H.263, H.264 |
| Image Display via USB | BMP, JPEG, PNG |
| Specification | Details |
|---|---|
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Loudness | High/Mid/Low/Off |
| Speaker Output | 4-ch |
| Subwoofer Control | Yes |
EXPANDABILITY
| Specification | Details |
|---|---|
| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack) |
| Firmware Upgradability | Yes |
| RCA Video Output | Yes |
| USB | Single Rear Type-A (5V, 1.5 A) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
The DMH-241EX is a 6.2″ resistive touchscreen digital media receiver designed to enhance in-vehicle entertainment and smartphone connectivity. Features include built-in Bluetooth®, WebLink® smartphone interface, Pioneer Vozsis with Alexa, backup camera ready, FLAC playback, and more.
6.2 Inch Touchscreen (Clear-Resistive)
Upgrade your ride with a touchscreen display featuring built-in LED backlight, color customization, illumination timer, dimmer setting, and brightness control.
WebLink® Smartphone Interface (Wired)
WebLink enables smartphone app projection from many popular Android® and iOS® devices to in-vehicle touch displays. WebLink for Pioneer AV receivers expands in-car entertainment with a wide range of apps.
Pioneer Vozsis with Alexa
Invite Amazon’s voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app. With a tap of the touchscreen and your voice, access Amazon Prime Music, Audible audiobooks, Kindle library, Flash Briefings, and more to stay informed and entertained while driving.
Bluetooth
Make hands-free phone calls easily. Pioneer’s included external microphone provides crystal-clear sound. Stream music, podcasts, audiobooks, and more from compatible phones or other Bluetooth® devices.
Back up camera input (1-camera)
Back up safely in crowded areas. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full-screen image display.
Wired Remote Input
This receiver integrates an input for an optional third-party interface, allowing you to retain key functions from your vehicle’s steering wheel controls (if applicable).
FLAC
Enjoy high-resolution FLAC audio files in your vehicle without conversion. Pioneer’s NEX in-dash receivers play FLAC files up to 192kHz/24 bit with CD-quality playback, letting you take high-res audio on the go.
Time alignment
Adjust delay times and synchronize each speaker to correct phase mismatches based on your listening position. Simply measure the distance from your listening position to each speaker and enter the measurements into the receiver.
