Description

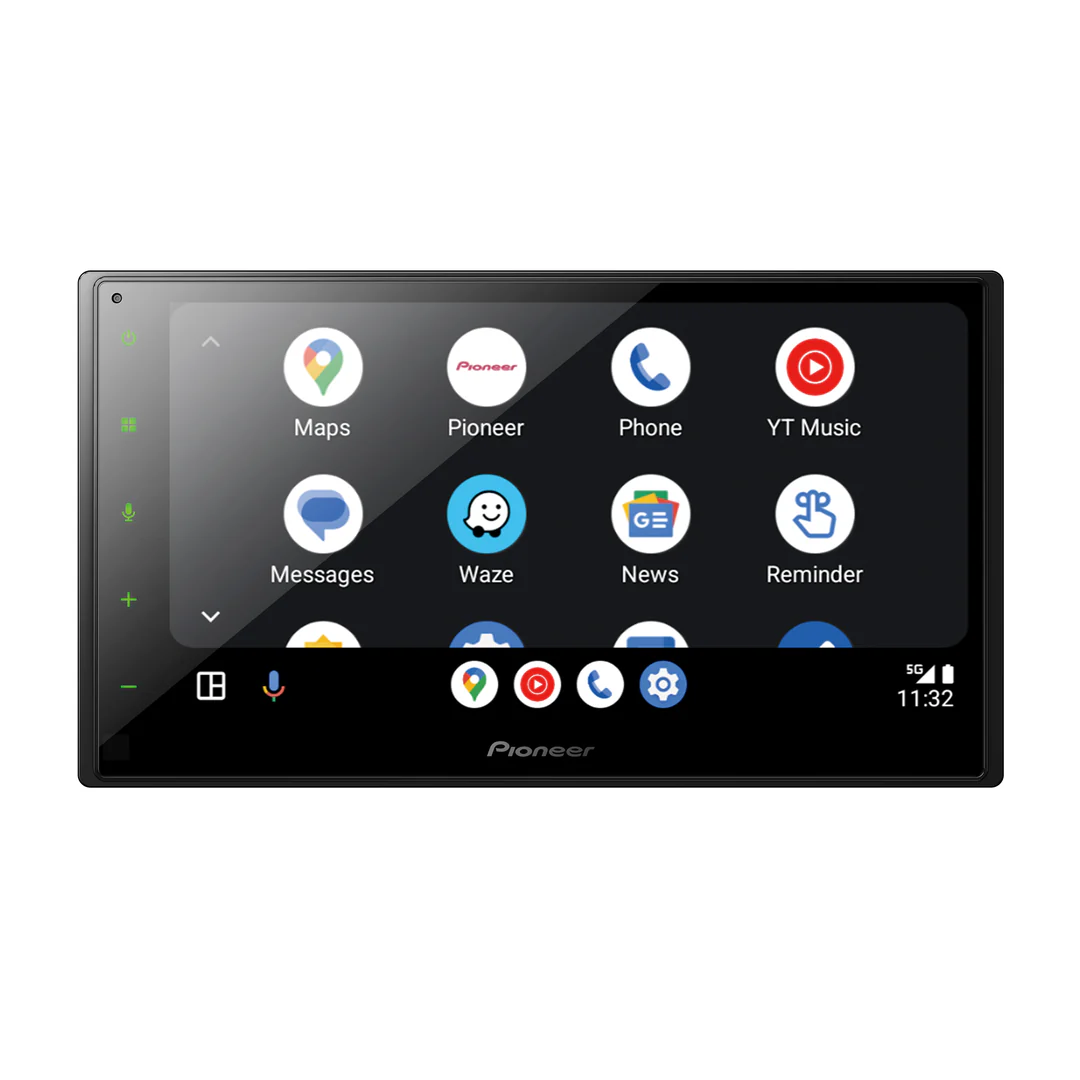

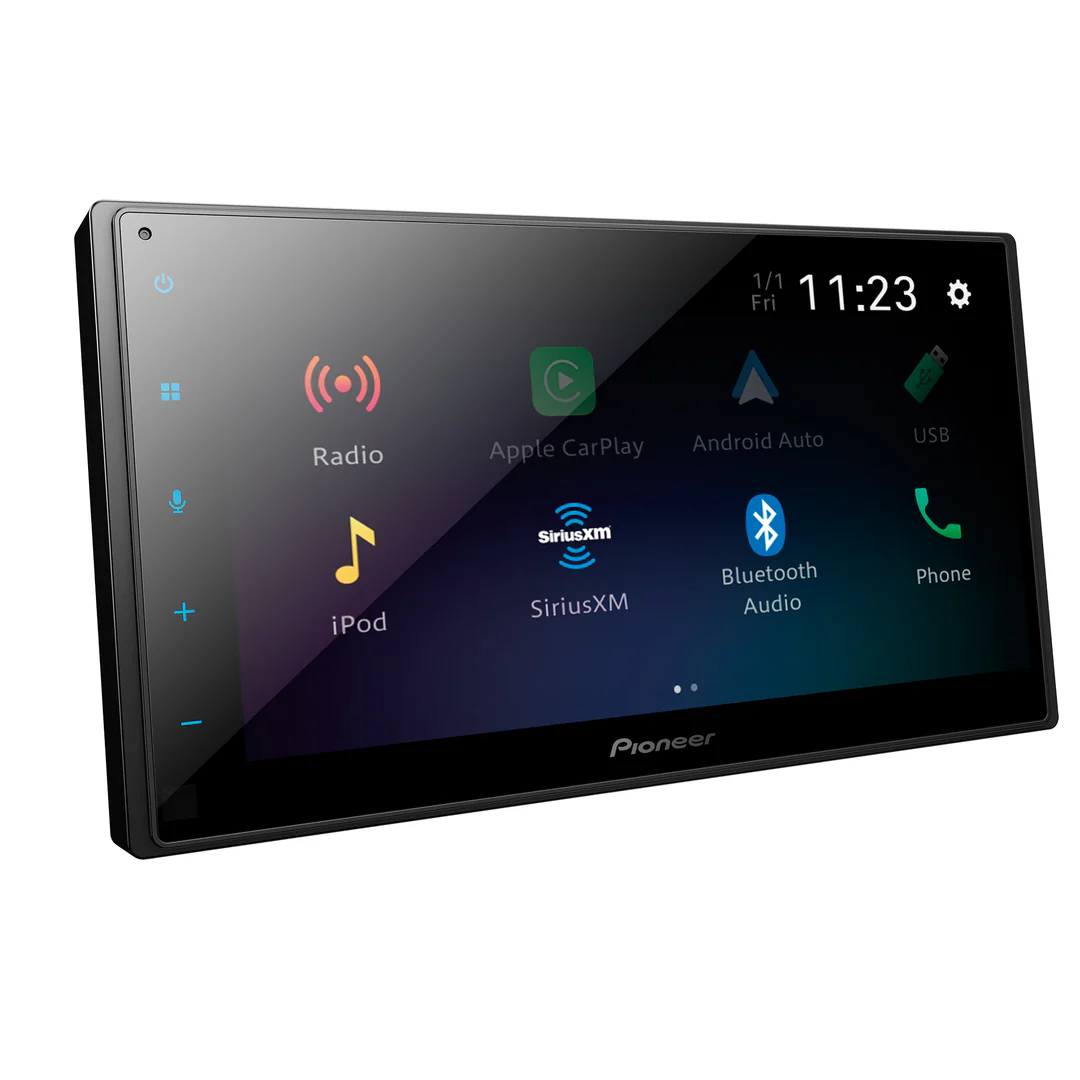

Pioneer DMH‑1800NEX
The Pioneer DMH‑1800NEX is a digital multimedia receiver designed for modern vehicles, featuring a 6.8″ capacitive touchscreen (800×480 resolution) and a double‑DIN chassis. It supports wired Apple CarPlay and wired Android Auto for seamless smartphone integration, built‑in Bluetooth® for hands‑free calling and audio streaming, USB input, and rear‑view camera compatibility. The audio side offers six‑channel 2‑volt pre‑out expansion, a 13‑band graphic equaliser, high/low‑pass filters, and high‑resolution audio playback (FLAC/WAV up to 24‑bit/192 kHz)
Specifications
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm |
| RCA Preamp Outputs | 6-ch |
| RCA Preout Voltage | 2V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Feature | Specification |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| Remote Control | Included |
| Steering Wheel Control Ready | Yes |
DISPLAY
| Feature | Specification |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 key colors |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Manual |
| Display Off Mode | Yes |
| Home Screen Customization | Yes |
| Monitor Mechanism | Fixed |
| Resolution | WVGA (800 x 480) |
| Screen Size/Aspect Ratio | 6.8″/16:9 |
| Touch Screen | Capacitive |
BLUETOOTH
| Feature | Specification |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Hands-Free | Yes |
| Microphone Included | Included |
| Phone Registration | 3-phone |
| Secure Simple Pairing (SSP) | Yes |
| Sound Retriever Air | Mode 1/Mode 2/Off |
TUNER
| Feature | Specification |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 12 AM |
| RDS | Yes |
| SiriusXM-Ready™ | Yes (Tuner Sold Separately) |
INTEGRATION
| Feature | Specification |
|---|---|
| Android Auto™ | Wired USB Connection |
| Apple® CarPlay | Wired USB Connection |
| Mirroring | USB-Android Phone Only |
| Mobile Operating System | Android, Apple iOS |
| Pandora® | With Apple CarPlay or Android Auto |
| Siri® Eyes Free (VR) | iPhone Only (Internet Required) |
| Spotify | With Apple CarPlay or Android Auto |
| Voice Control | Yes |
DIGITAL MEDIA PLAYBACK
| Feature | Specification |
|---|---|
| Audio Playback via USB | MP3, WMA, AAC, WAV (Hi-Res), FLAC (Hi-Res) |
| Audio Video Playback via USB | .avi, .mpg/.mpeg, .mp4, .3gp, .mkv, .mov, .flv, .wmv/.asf, .m4v, .ts/.m2ts/.mts |
| Image Display via USB | BMP, JPEG, PNG |
AUDIO
| Feature | Specification |
|---|---|
| Audio Bass Boost | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Loudness | High/Mid/Low/Off |
| Speaker Output | 4-ch |
| Subwoofer Control | Yes |
EXPANDABILITY
| Feature | Specification |
|---|---|
| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack) |
| Firmware Upgradability | Yes |
| Parking Assist Lines | Yes |
| RCA-Video Output | Yes |
| USB | Single Rear Type-A (5V, 1.5 A) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
The DMH-1800NEX offers connectivity solutions designed for today’s smartphone-driven lifestyle. This 6.8” receiver features a capacitive touchscreen display and includes built-in Bluetooth®, Android Auto™ (wired), wired Apple CarPlay® (wired), SiriusXM-Ready™, and much more. The DMH-1800NEX also has a 13-band graphic equalizer and is equipped with a backup camera input.
6.8 Inch WVGA Touchscreen (Capacitive)
Upgrade your ride with a capacitive WVGA touchscreen display with built-in LED backlight, color customization, illumination timer, dimmer setting, and brightness control.

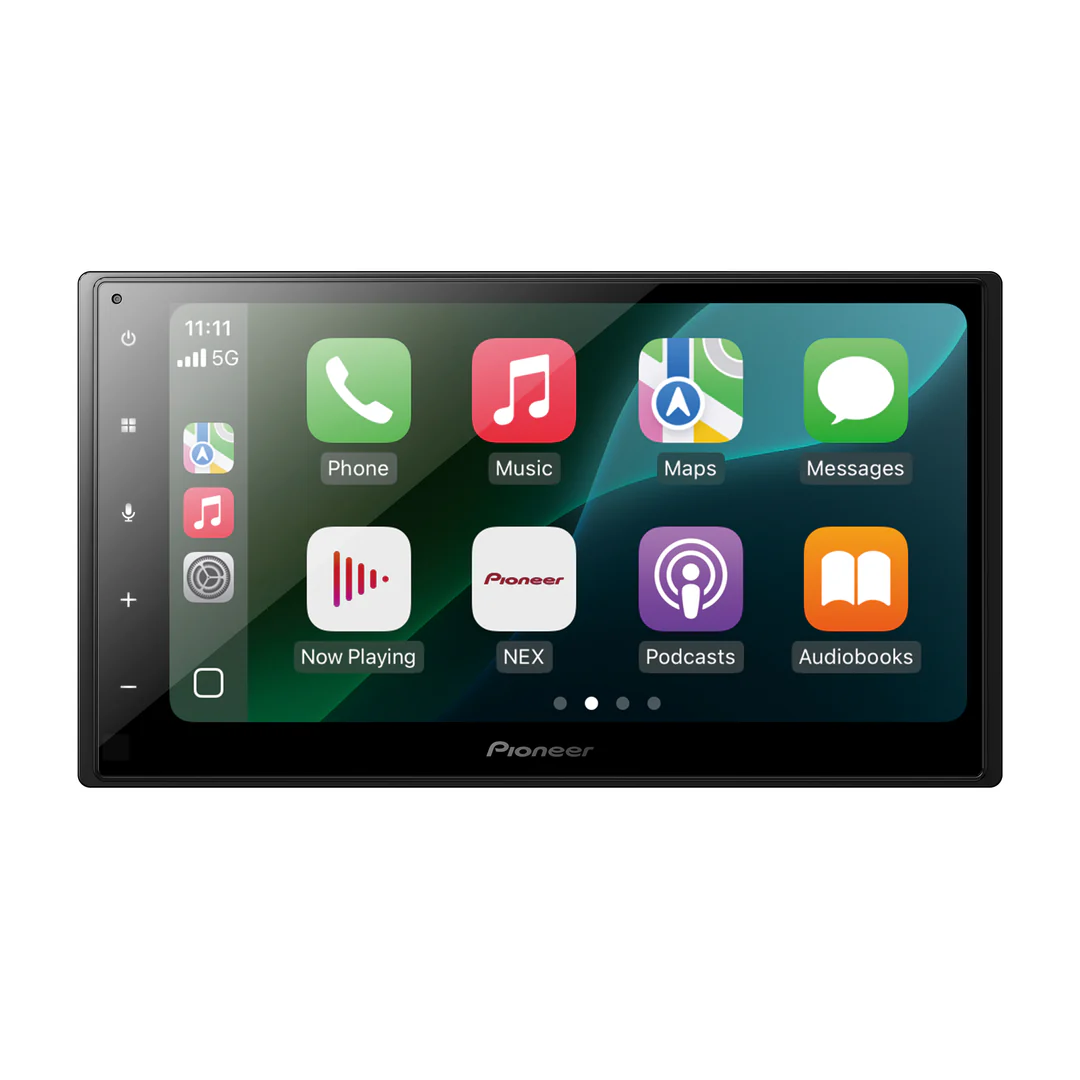

Apple CarPlay (Wired)
This receiver features Apple CarPlay, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 device or newer with the latest version of iOS.
Android Auto™ (Wired)
This receiver features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all Android smartphones.
Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Siri® Eyes Free – touchscreen
Simply touch a NEX touchscreen and Siri listens through the NEX unit’s external microphone and answers requests over the vehicle’s speakers, helping you keep your eyes on the road and your hands on the wheel. (For select iPhones.)
SiriusXM Ready
Your Favorite Stations Wherever You Go, Wherever you are, this Receiver is SiriusXM-Ready® so you can get over 140 channels, including commercial-free music, plus the best sports and live events, comedy, news, exclusive talk, and entertainment. SiriusXM programming is received through the SiriusXM Connect Vehicle Tuner (SiriusXM SXV300 Tuner sold separately, SiriusXM subscription required).
Back up camera input (1-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
Wired Remote Input
This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons of your vehicle. (if applicable)
FLAC
Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer’s NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system – put your music on the move.
Audio Equalizer
The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car’s interior acoustics and speaker characteristics as desired. Multiple EQ presets ensure that even users with basic acoustic knowledge can learn and enjoy the benefits of using an equalizer.
