Name: DS18 DDX6.9ML
SKU: DDX6.9ML
Availability: InStock

Description

DS18 DDX6.9ML

The DDX6.9ML is a 6.9″ touchscreen mech‑less double‑DIN digital media receiver designed to modernize your vehicle’s dashboard with a sleek entertainment and connectivity system. It features a large 6.9″ capacitive touchscreen with crisp 1024×600 resolution for easy navigation and media control. This head unit supports Bluetooth audio streaming and hands‑free calling, USB and SD card playback (up to 64 GB), AUX input, AM/FM radio, and Mirror Link for both iOS and Android phones — allowing you to mirror your phone screen for navigation, music apps, and more. Its internal amplifier provides power to basic speakers, and it also offers high‑voltage preamp outputs for connecting external amplifiers and subwoofers. Compact yet feature‑rich, the DDX6.9ML is ideal for upgrading factory audio in cars, trucks, UTVs, and powersports vehicles.

Specifications

Specification	Details
SKU	DDX6.9ML
Rated Power Source	14.4V DC (10.8V to 15V operation)
Maximum Current Consumption	10 Amp
Dimensions (W x H x D)	Chassis: 178mm x 100mm x 165mm; Bezel frame: 170mm x 96mm x 5mm
Weight	820 grams

Display

Specification	Details
Screen Size / Aspect Ratio	6.9 inch / Wide 16:9
Pixels	1024 x 600
Display Type	TFT / WSVGA / Capacitive Touch Screen
Temperature Operation	-20°C to +60°C (14°F to 140°F)

Audio

Specification	Details
Maximum Power Output	40W x 4 Ch / 4 ohm
Continuous Power Output	15W x 4 Ch / 4 ohm
Pre-output Level	4.5 Volts (Front, Rear); 7 Volts (Subwoofer)
Equalizer	16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5KHz, 16KHz)
Gain	+/- 12dB
Audio Control	Volume / Balance / Fader / Loudness

Tuner

Specification	Details
Frequency Range	FM: 87.5 ~ 107.9 KHz; AM: 530 ~ 1710 KHz
Presets Memory	30 Stations (18 FM / 12 AM)
Region	Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment	LOC (On/Off) / ST (On/Off)

USB / SD Player

Specification	Details
Type / Class	V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported	RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported	1080P Video
Memory Size Reader	Up to 64 GB
Max Current Supply	1.5 Amp (USB)
Number of USB Ports	2 (1 Front, 1 Rear)

Connectivity

Specification	Details
Bluetooth Version / Services	V4.1 / Audio Streaming / Hands Free Calls
Camera Input	RCA Analog Video up to HD 720p (Front / Rear)
Video Output	Dual RCA (1 Volt / 75 ohm)
A/V Aux Input	Rear RCA Audio & Video / Front 3.5mm Jack Stereo Audio
Microphone	3.5mm Jack External MIC Input
Remote Control	Frontal IR Receptor / Wired (3.5mm jack) Input

Product Overview

6.9″ Double Din Digital Media Receiver Mech-Less Player, Touchscreen, Bluetooth, USB, Mirror Link

Thanks to DS18’s DDX6.9ML you and everyone in the vehicle can enjoy crisp visuals and goose bump worthy sound quality.
Maneuvering through the options is easy with the touch screen controls giving you absolute control over all your media.

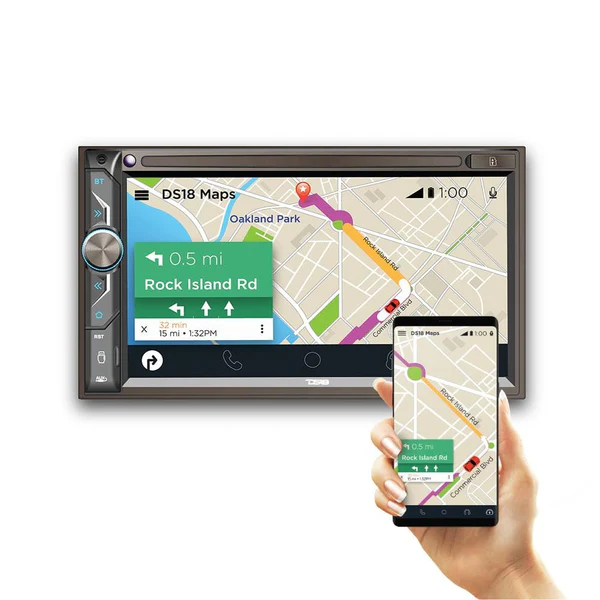

This receiver has everything you need to bring your multimedia dreams to life: including Mirror Link, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations.
The SD reader can use memory cards up to 64GB. Your music can be set easily to your preferences with the easy to use and detailed manual and the DDXRC app equalizer tunes your sound to your tastes easily. Mirror link is also easily set up in just a few steps so you can mirror all media from your phone to your device.
There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 15 x 4 watts RMS and 40 x 4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4.5 volts (7V for subwoofers) so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available.
