Description

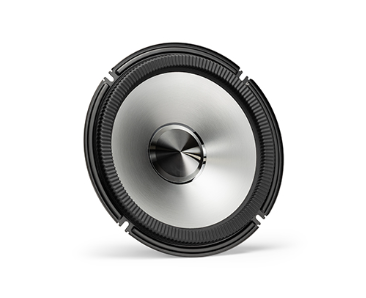

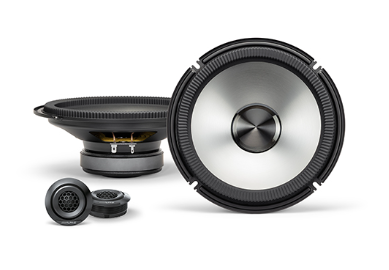

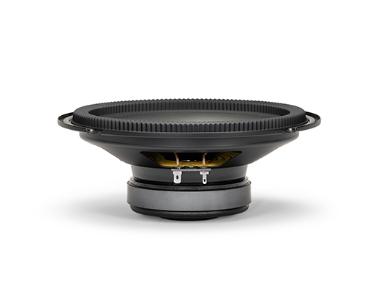

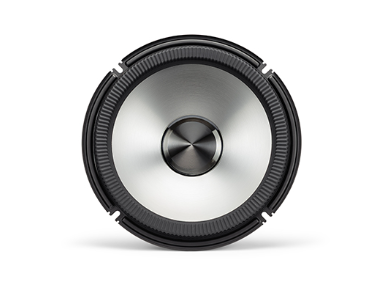

Alpine BRV‑S80C
The Alpine BRV‑S80C is an 8″ (20 cm) component speaker set from Alpine’s BassRev™ (BRV) Series, engineered to deliver sub‑woofer‑level bass performance from component speakers. It features large mid‑bass drivers with long‑excursion design (HEDGE™ – High Excursion Design Gathered Edge surround) for extended low‑frequency output, paired with ¾″ tweeters and in‑line crossovers. Key specs: 50 W RMS / 150 W peak power handling; frequency response down to ~35‑55 Hz depending on tuning (and up to ~20 kHz) in certain configurations.
Specifications
Features
| Feature | Details |
|---|---|
| Speaker Set | 8″ woofer + 3/4″ tweeter (Component) |
| Optimization | Pair actively with Alpine OPTIM8® using OPTIM™ Sync (Passive networks not included) |
| Bass Performance | Upgraded when tuned with OPTIM8® (OPTIM™Sync Algorithm) |
| Mid/Low-End Performance | Increased (sub-like impact from 8″) |
| Surround | HEDGE™ Surround (High Excursion Design Gathered Edge) |
| Cone Design | Unique lapel cone shape for higher excursion |
| Cone Material | Polypropylene + mica (woofer) |
| Magnet | Ferrite motor, stable performance |
| Finish | Gun-metal chemical coating, premium and durable |
Tech Specs
| Specification | Details |
|---|---|
| Woofer Size | 8″ |
| Tweeter Size | 3/4″ (Component) |
| Power Handling | 50W RMS / 150W Peak |
| Frequency Response (BassRev ON) | 35Hz – 20kHz |
| Frequency Response (BassRev OFF) | 55Hz – 20kHz |
| Sensitivity | 87dB (1W/1m) |
| Impedance | 4Ω |
| Mounting Depth | 2-15/16″ (woofer) |
| Cone Material | Polypropylene (woofer), Polyester cloth-dome (tweeter) |
| Surround Material | Rubber HEDGE™ Design (woofer) |
| Voice Coil Diameter | 35mm (woofer), 20mm (tweeter) |
| Magnet Size | 100mm (woofer) |
| Magnet Material | Ferrite (woofer), Neodymium (tweeter) |
| Frame Material | Steel (woofer) |
