Description

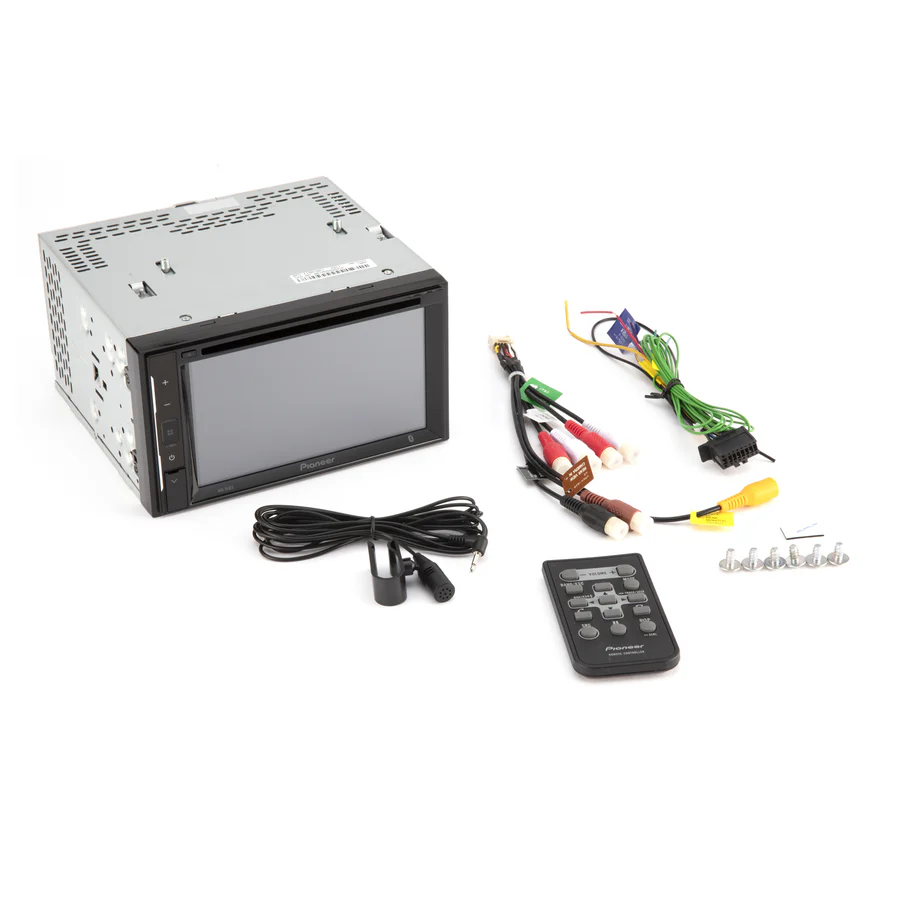

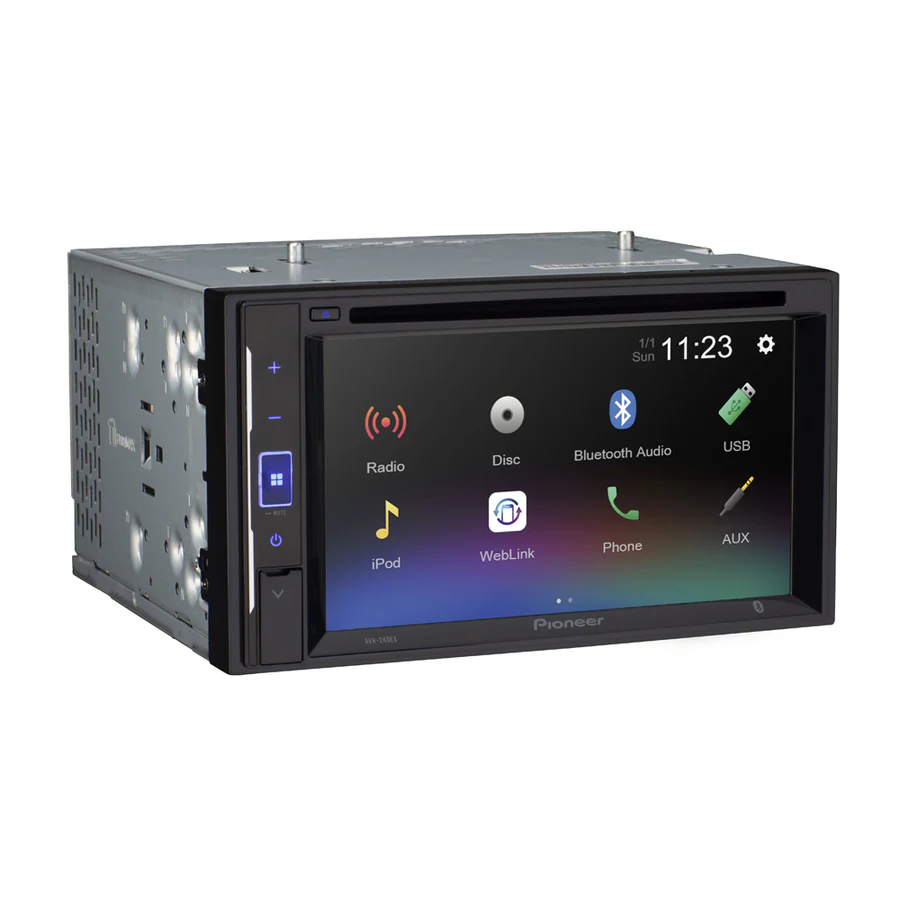

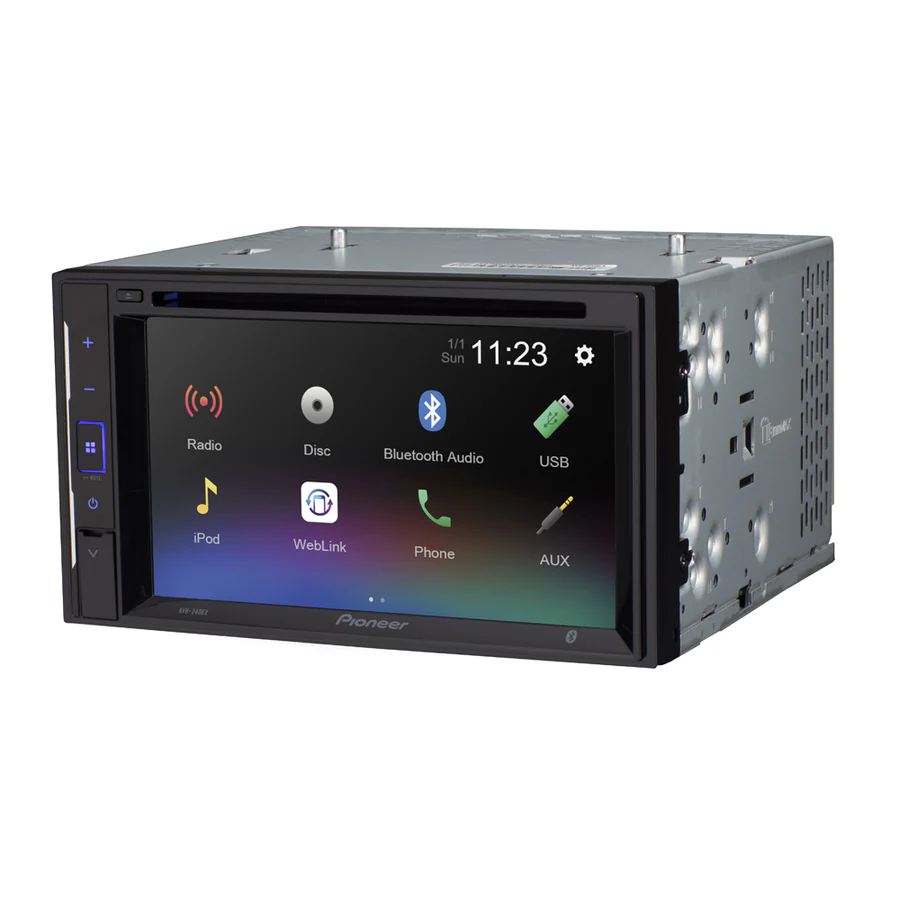

Pioneer AVH‑241EX
The Pioneer AVH‑241EX is a double‑DIN digital multimedia receiver featuring a 6.2″ clear‑resistive touchscreen that supports CD and DVD playback, built‑in Bluetooth® for hands‑free calling and audio streaming, and smartphone integration via the WebLink® interface and the Pioneer Vozsis® app with Amazon Alexa® voice control. It also provides high‑resolution audio support (FLAC up to 24‑bit/192 kHz), a rear‑view camera input, USB front‑port media playback, and expanded audio functionality including five 2‑volt pre‑outs, 13‑band graphic EQ and full crossover control for enhanced sound system integration
Specifications
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedence Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm |
| RCA Preamp Outputs | 5-ch |
| RCA Preout Voltage | 2V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Feature | Specification |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| Remote Control | Included |
| Steering Wheel Control Ready (Adapter Sold Separately) | Yes |
DISPLAY
| Feature | Specification |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 3 Preset Background Images, Fixed Color – Blue |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Manual |
| Display Off Mode | Yes |
| Monitor Mechanism | Fixed |
| Resolution | WVGA (800 x 480) |
| Screen Size/Aspect Ratio | 6.2″/16:9 |
| Touch Screen | Resistive |
BLUETOOTH
| Feature | Specification |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Hands-Free | Yes |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
TUNER
| Feature | Specification |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 12 AM |
| PS (Preset Scan) | Yes |
| RDS | Yes |
INTEGRATION
| Feature | Specification |
|---|---|
| Amazon Alexa | Paired with Pioneer Vozsis |
| Mobile Operating System | Android, Apple iOS |
| Pandora® | Bluetooth Audio Source |
| Pioneer App Compatibility | Vozsis Android, Vozsis iPhone |
| Siri® Eyes Free (VR) (Internet Required) | iPhone Only |
| Spotify | Bluetooth Audio Source |
| Voice Control | Yes |
| Weblink | 2.0 |
DIGITAL MEDIA PLAYBACK
| Feature | Specification |
|---|---|
| Audio Playback via USB | AAC, FLAC (Hi-Res), MP3, WAV (Hi-Res), WMA |
| Audio Video Playback via DVD-R/RSL/-RDL/DVD-RW | AVI, DVD Audio Video, DivX |
| Audio Video Playback via USB | .avi, .mpg/mpeg, .mp4, .mkv, .mov, .flv, .m4v, .ts/.m2ts/.mts, H.263, H.264 |
| Image Display via USB | BMP, JPEG, PNG |
| Usable Discs | CD, CD-R, CD-RW, DVD-R, DVD+R, DVD-R DL, DVD-RW, DVD+RW, DVD-Video, Video-CD |
AUDIO
| Feature | Specification |
|---|---|
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Loudness | High/Mid/Low/Off |
| Speaker Output | 4-ch |
| Subwoofer Control | Yes |
EXPANDABILITY
| Feature | Specification |
|---|---|

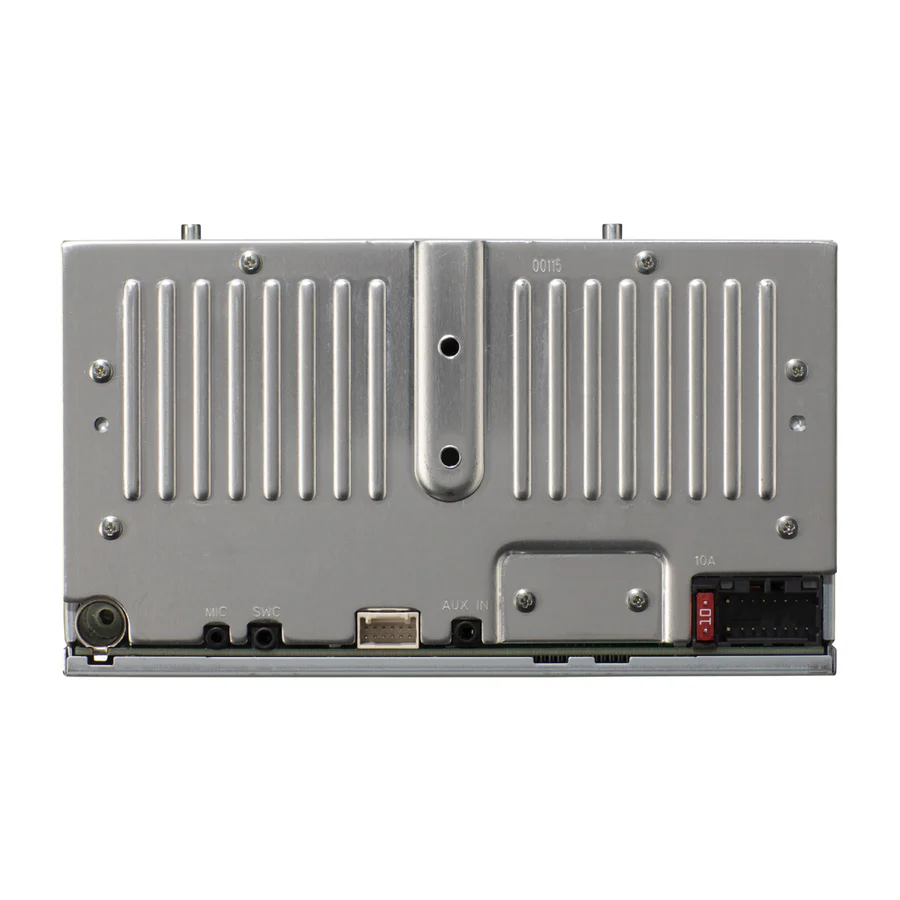

| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack) |
| Firmware Upgradability | Yes |
| RCA-Video-Output | Yes |
| USB | Single Rear Type-A (5V, 1-1/2 A) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
The AVH-241EX is a 6.2″ touchscreen CD/DVD receiver that integrates smartphone connectivity, media playback, and enhanced in-vehicle audio control. It supports Bluetooth® hands-free calling, audio streaming, USB/CD/DVD playback, and back-up camera functionality.

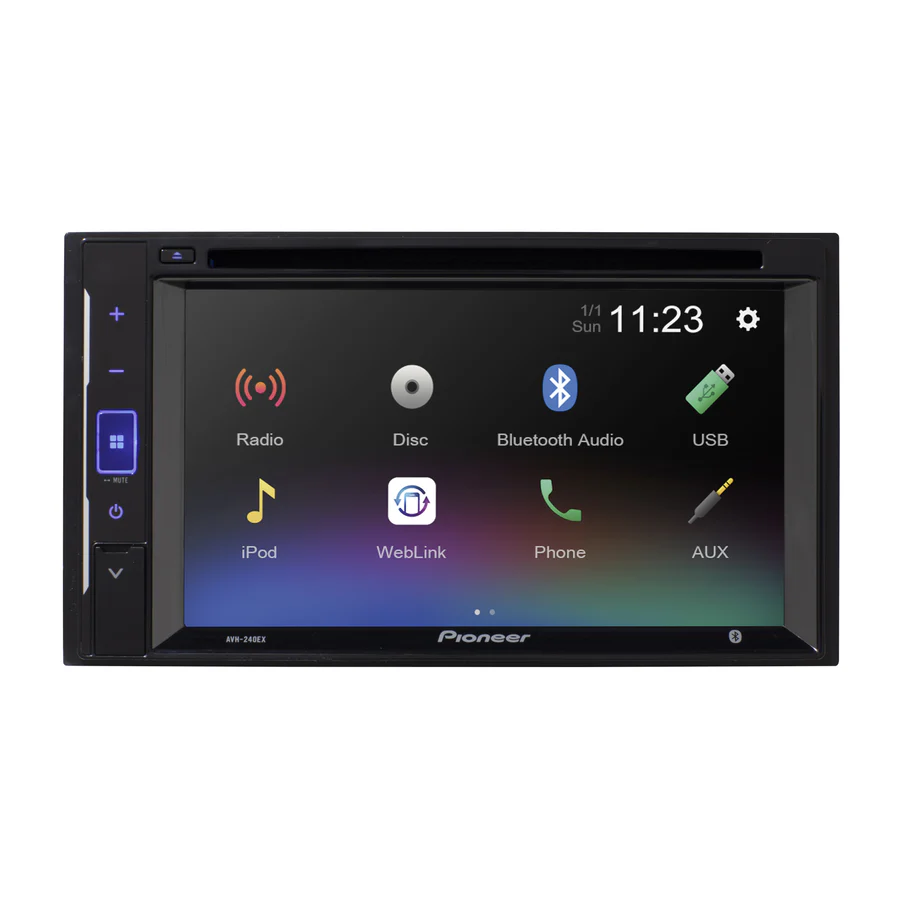

6.2 Inch Touchscreen (Clear-Resistive)
Upgrade your ride with a touchscreen display with built-in LED backlight, color customization, and illumination timer, dimmer setting, and brightness control.

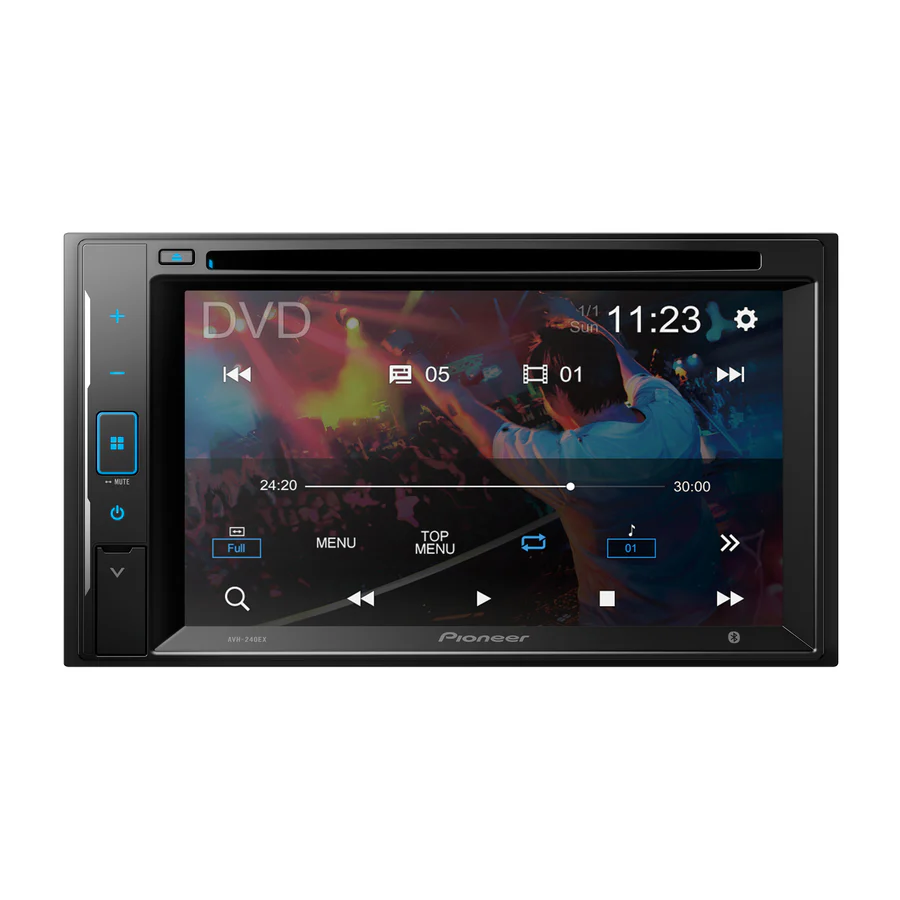

CD and DVD Player
As a proud owner of a collection of audio (CD) or video (DVD) discs, this Pioneer AV receiver is the perfect solution for you! Whether you want to play a basic audio CD, burned or original, or audio/video from a DVD, look no further.
Weblink® Smartphone Interface (Wired)
WebLink enables smartphone app projection from many popular Android® and iOS® devices to in-vehicle touch displays. WebLink for Pioneer AV receivers expands in-car entertainment with an amazing array of apps.
Pioneer Vozsis with Alexa app
Invite Amazon’s versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app. With a tap of the touchscreen and your voice, access your Amazon Prime Music, Audible audiobooks, Kindle library, Flash Briefings, and more to stay informed and entertained during your drive.
Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Back up camera input (1-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
Wired Remote Input
This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons of your vehicle. (if applicable)
FLAC
Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer’s NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system – put your music on the move.
Audio Equalizer
The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car’s interior acoustics and speaker characteristics as desired. Multiple EQ presets ensure that even users with basic acoustic knowledge can learn and enjoy the benefits of using an equalizer.
