Description

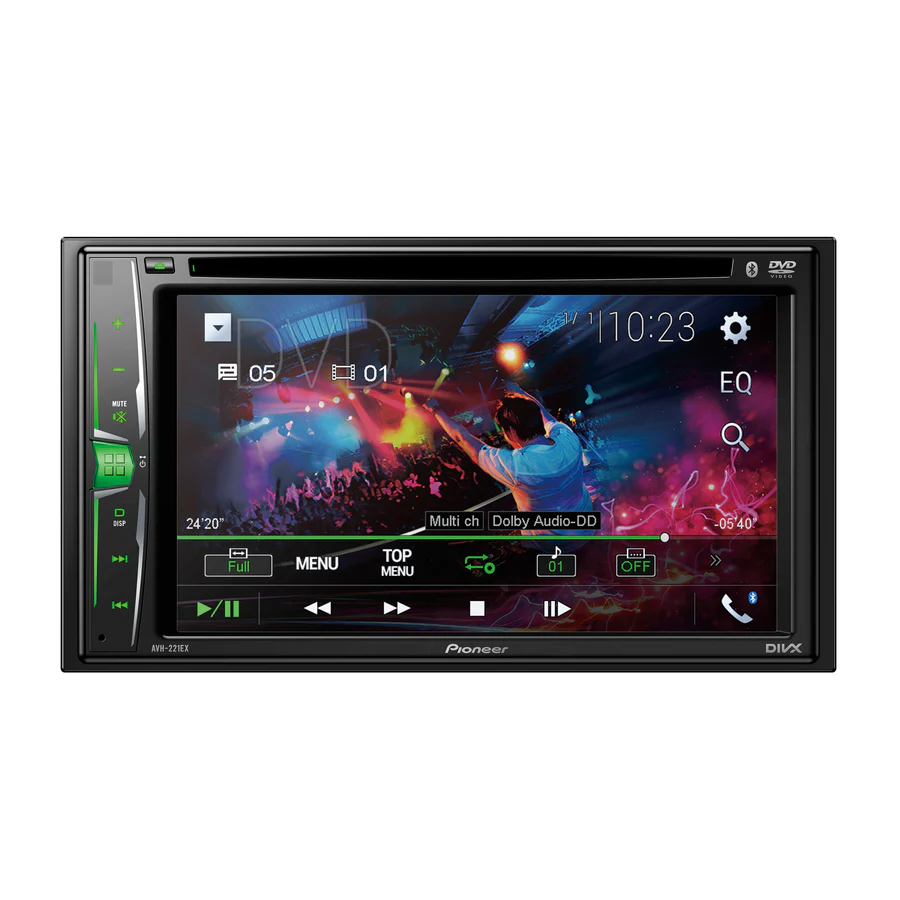

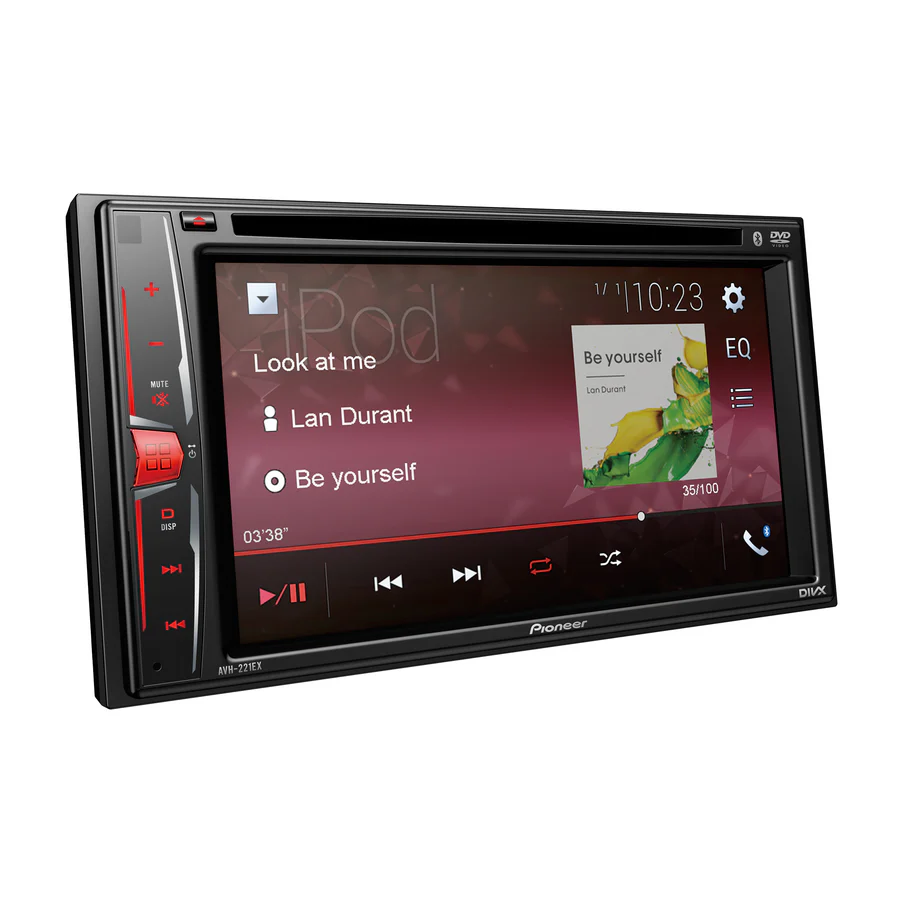

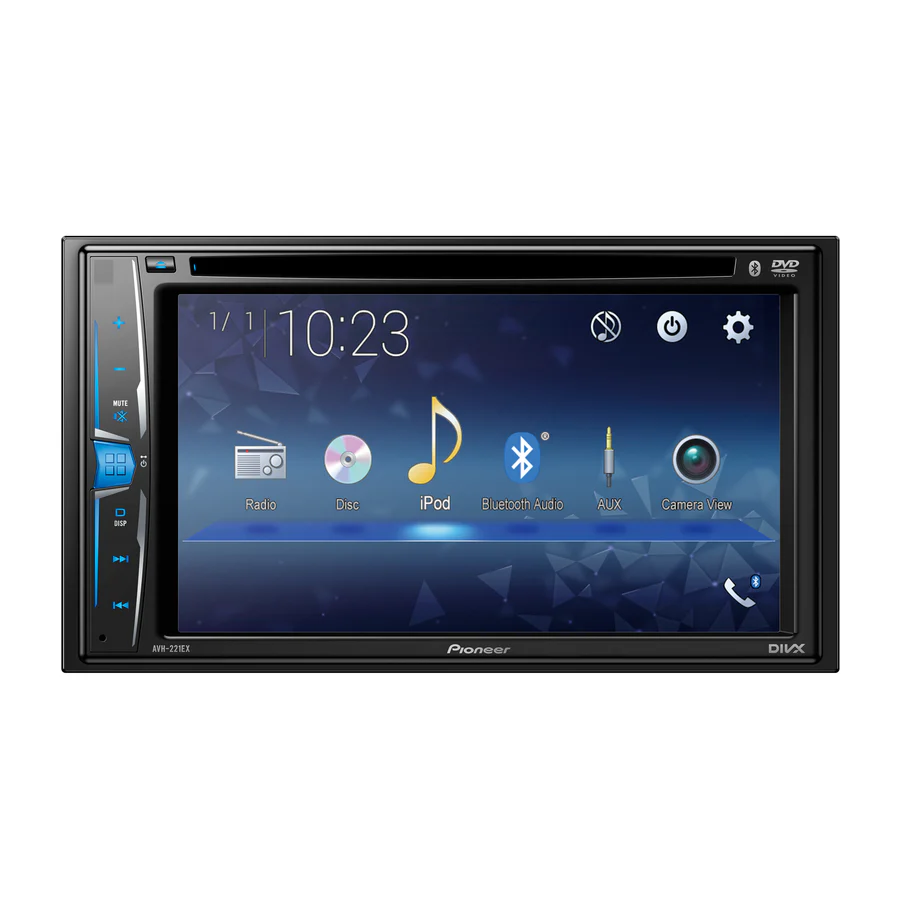

Pioneer AVH‑221EX/B
The Pioneer AVH‑221EX/B is a double‑DIN multimedia DVD receiver featuring a 6.2″ WVGA (800×480) clear‑resistive touchscreen, designed for both entertainment and connectivity. It offers built‑in Bluetooth® for hands‑free calls and music streaming, direct iPod/iPhone compatibility via USB, DVD/CD playback, and a rear‑view camera input for safe reversing. Audio‑upgrade friendly, it includes six‑channel 4‑volt pre‑outs for external amplifiers/subwoofers, a 13‑band graphic equaliser, high/low‑pass filters and time‑alignment for enhanced system tuning.
Specifications
PRODUCT PERFORMANCE
| Specification |
Details |
| Continuous Power Output |
22 W x 4-Channel |
| Load Impedance Allowance |
4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output |
50 W x 4-ch 4 ohm, 50 W x 2-ch 4 ohm, 70 W x 1-ch (subwoofer) 2 Ohm |
| RCA Preamp Outputs |
6-ch |
| RCA Preout Voltage |
4V |
| RMS Power Output (CTA-2006) |
14 W RMS x 4-ch 4 ohm |
GENERAL
| Specification |
Details |
| Detachable Face Security |
Fixed |
| Multi-Language Display |
English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser |
USB |
| Remote Control |
Included |
| Steering Wheel Control Ready |
Yes (Adapter Sold Separately) |
DISPLAY
| Specification |
Details |
| Back Light |
LED |
| Brightness Control |
Yes |
| Color Customization |
5 display colors, 112 key colors |
| Device (Non-DIN/Modular Unit) |
2-DIN |
| Dimmer |
Automatic with vehicle illumination, Timer Controlled, Manual |
| Display Off Mode |
Yes |
| Monitor Mechanism |
Fixed |
| Resolution |
WVGA (800 x 480) |
| Screen Size/Aspect Ratio |
6.2″ / 16:9 |
| Touch Screen |
Resistive |
BLUETOOTH
| Specification |
Details |
| Advanced Audio Distribution Profile (A2DP) |
Yes |
| AVRCP |
1.6 |
| Built-in Bluetooth® |
Yes |
| Hands-Free |
Yes |
| Microphone Included |
Included |
| Phone Registration |
3-phone |
| Secure Simple Pairing (SSP) |
Yes |
| Serial Port Profile (SPP) |
Yes |
TUNER
| Specification |
Details |
| Best Station Memory |
Yes |
| Local Seek Tuning |
Yes |
| Presets |
18 FM, 6 AM |
| RDS |
Yes |
INTEGRATION
| Specification |
Details |
| Mobile Operating System |
Android, Apple iOS |
| Music Playback (MTP) |
Yes |
| Pandora® |
Bluetooth Audio Source |
| Spotify |
Bluetooth Audio Source |
DIGITAL MEDIA PLAYBACK
| Specification |
Details |
| Audio Playback via USB |
MP3, WMA, AAC, WAV (Hi-Res) |
| Audio Video Playback via DVD-R/RSL/-RDL/DVD-RW |
AVI, DVD, DivX Audio Video Playback |
| Audio Video Playback via USB |
.avi, .mpg/.mpeg, .divx |
| Image Display via USB |
JPEG, BMP |
AUDIO
| Specification |
Details |
| Audio Bass Boost |
Yes |
| Balance |
Yes |
| Built-in Amplifier |
MOSFET 50 W x 4 |
| Crossover Standard Mode |
HPF / LPF |
| Customizable Graphic Equalizer |
13 Band |
| DA Converter |
24 Bit |
| Digital Signal Processor |
Built In |
| Easy EQ (EEQ) Preset Equalizer |
Yes |
| Listening Position Selector |
Yes |
| Loudness |
High / Mid / Low / Off |
| Speaker Output |
4-ch |
| Subwoofer Control |
Yes |
| Time Alignment |
Manual |
EXPANDABILITY
| Specification |
Details |
| Audio Video Inputs |
Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack) |
| RCA-Video-Output |
Yes |
| USB |
Single Rear Type-A (5V, 1-1/2 A) |
| USB Direct Control for iPhone® |
5s and newer |
About The Product
This is a Pioneer Reconditioned product, including a 90-day limited warranty. The AVH-221EX DVD receiver offers a responsive touchscreen for easy access. It includes built-in Bluetooth® for hands-free calls and audio streaming, built-in iPod, iPhone®, and iPad control, and a variety of entertainment options. It is supported by a 13-band equalizer to smooth out your car’s acoustics.
Back Up Camera Input (1-Camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides, with adjustable parking lines and full-screen view for easier parking.
Time Alignment
This feature allows delay time and synchronization for each speaker to correct phase mismatches resulting from your listening position. Simply measure the distance from your listening position to the speakers and enter it into the Pioneer receiver—no acoustics degree required.
USB Connectivity
This receiver supports direct USB connection to your iPhone* for music and video playback. Song, artist, album, and time information are displayed on the touchscreen. The wired USB connection provides direct digital signal transfer for clean sound while supplying 1.5 amps to charge your device.
*Requires iPhone 5 or newer. Compatibility may vary depending on iOS version.
WVGA Touchscreen (Clear Resistive)
Enjoy a clear resistive WVGA touchscreen display for smooth operation and access to all of the head unit’s features.
