Description

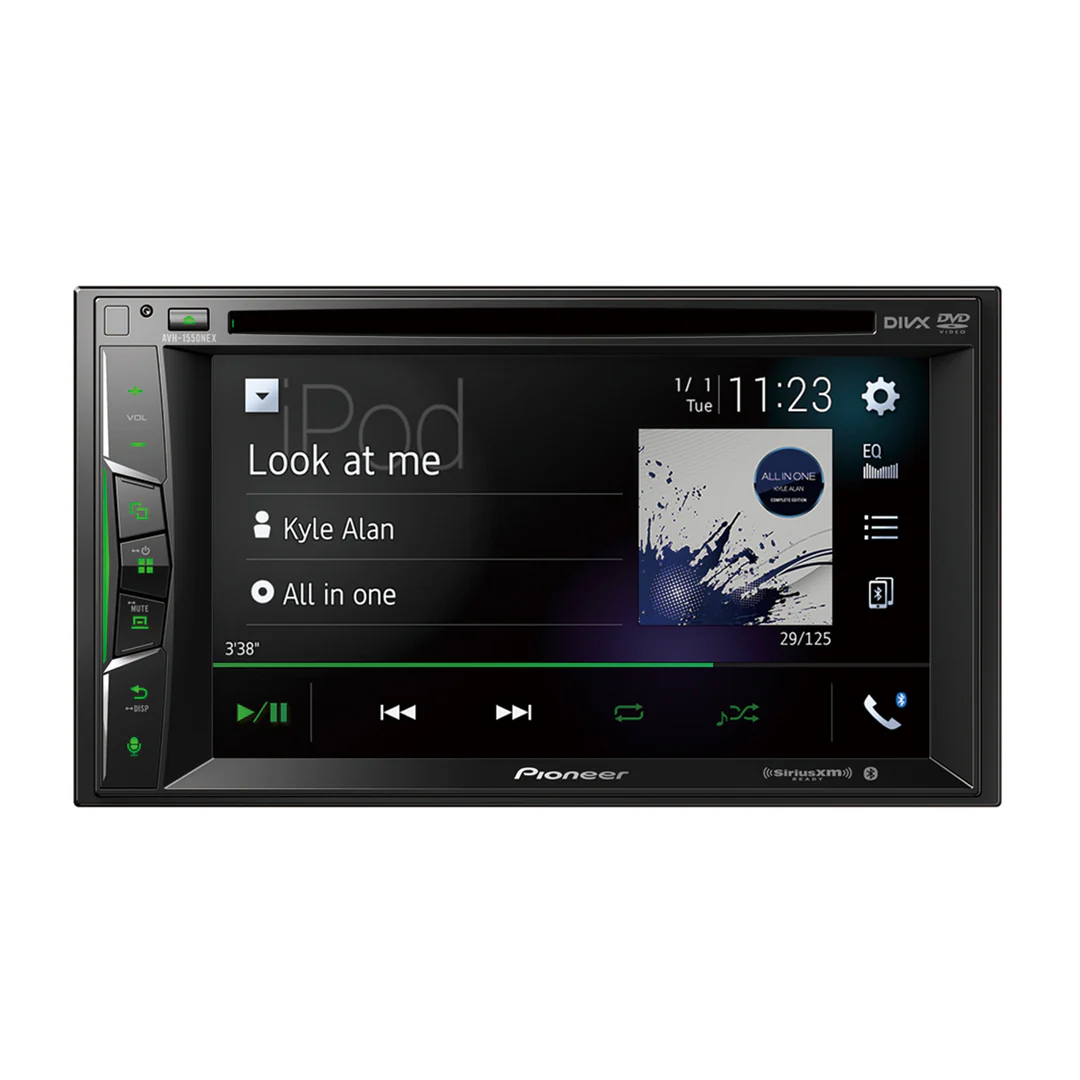

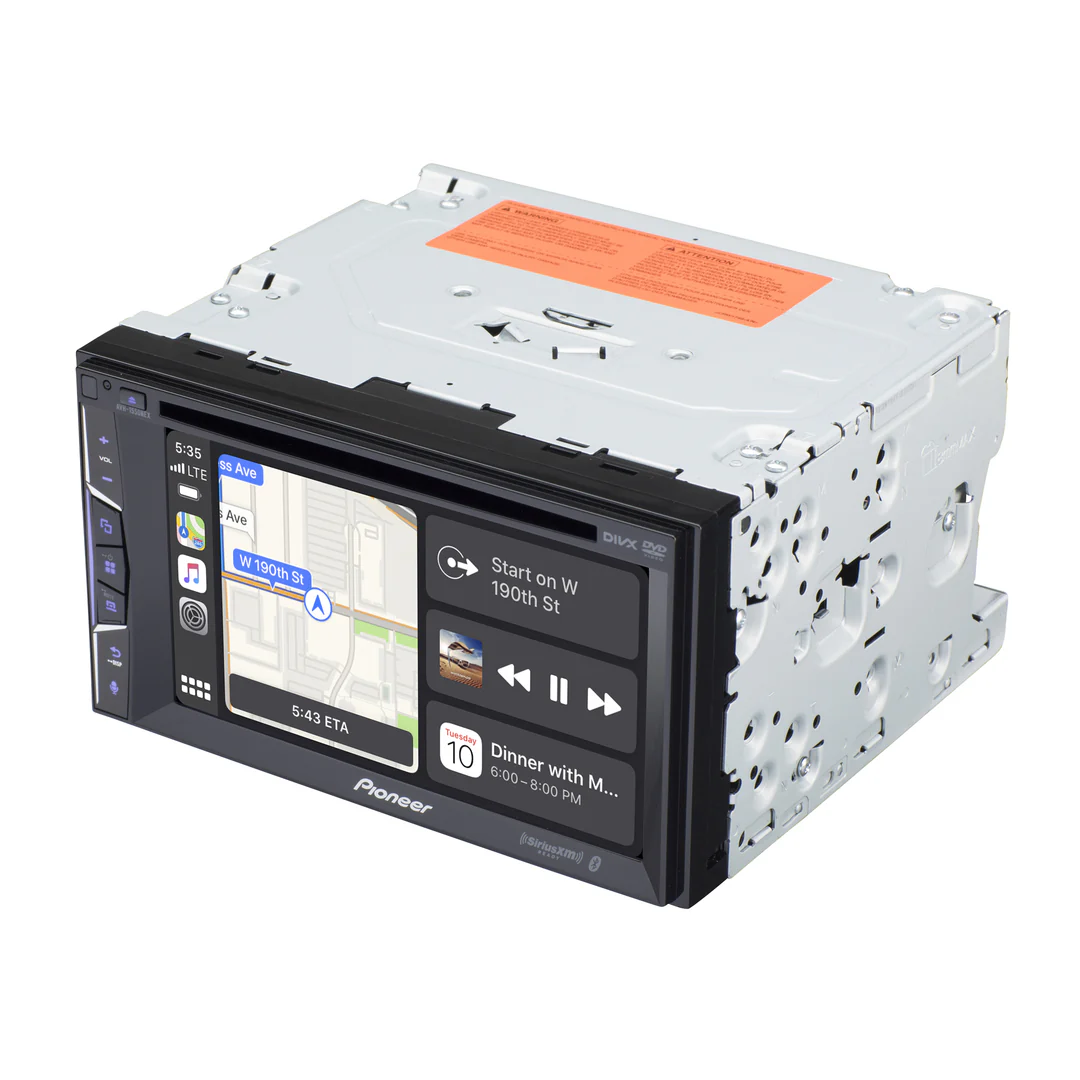

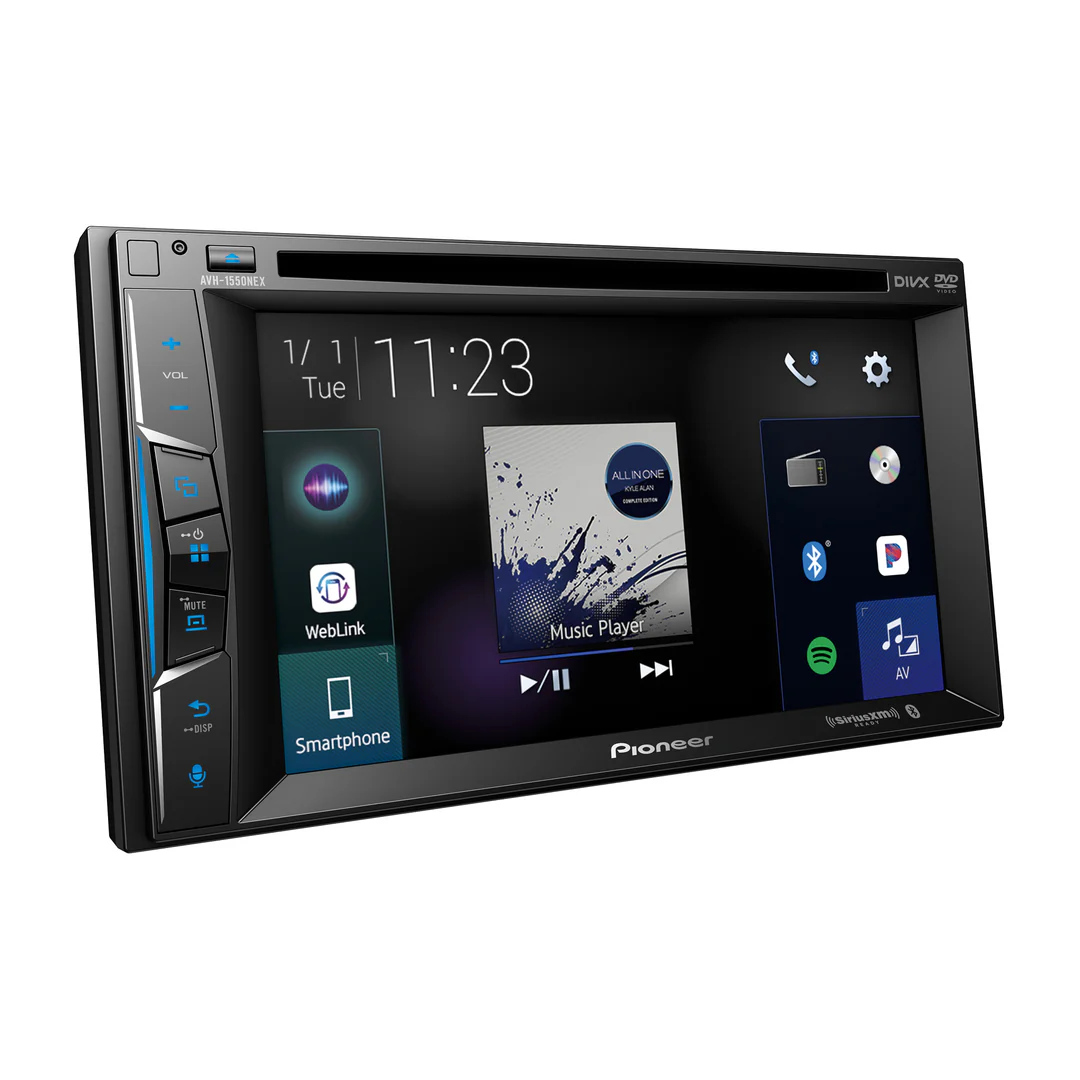

Pioneer AVH‑1550NEX/B
The Pioneer AVH‑1550NEX/B is a feature‑packed double‑DIN multimedia receiver with a 6.2″ resistive touchscreen display (800×480 resolution). It offers wired Apple CarPlay compatibility, built‑in Bluetooth® for hands‑free calling and audio streaming, and supports USB/AV media playback including FLAC (up to 24‑bit/192 kHz) from USB storage. The audio section includes six‑channel 4‑volt pre‑outs, built‑in MOSFET amplification, a 13‑band graphic EQ, high/low‑pass filters and compatibility with the iDatalink Maestro interface to retain factory vehicle features.
Specifications
PRODUCT PERFORMANCE
| Specification | Details |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm, 50 W x 2-ch 4 ohm, 70 W x 1-ch (subwoofer) 2 Ohm |
| RCA Preamp Outputs | 6-ch |
| RCA Preout Voltage | 4V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Specification | Details |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish, Portuguese, Chinese (Simplified) |
| Music Browser | USB |
| Remote Control | Included |
| Steering Wheel Control Ready | Yes (Adapter Sold Separately) |
DISPLAY
| Specification | Details |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | 5 display colors, 112 key colors |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
| Display Off Mode | Yes |
| Home Screen Customization | Yes |
| Monitor Mechanism | Fixed |
| Resolution | WVGA (800 x 480) |
| Screen Size/Aspect Ratio | 6.2″ / 16:9 |
| Touch Screen | Resistive |
BLUETOOTH
| Specification | Details |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Dual Phone Connection | Yes |
| Hands-Free | Yes |
| Microphone Included | Included |
| Phone Registration | 5-phone |
| Secure Simple Pairing (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
| Sound Retriever Air | Mode 1 / Mode 2 / Off |
TUNER
| Specification | Details |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |
| SiriusXM-Ready™ | Yes (Tuner Sold Separately) |
| PS (Preset Scan) | Yes |
INTEGRATION
| Specification | Details |
|---|---|
| Amazon Alexa | Paired with Pioneer Vozsis |
| Apple® CarPlay | Wired USB Connection |
| Mobile Operating System | Android, Apple iOS |
| Music Playback (MTP) | Yes |
| Pandora® | Source through iPhone/Android |
| Pioneer App Compatibility | Vozsis Android, Vozsis iPhone |
| Siri® Eyes Free (VR) | iPhone Only (Internet Required) |
| Spotify | Streaming audio via iPhone/Android through Bluetooth or AUX |
| Voice Control | Yes |
| Weblink | Yes |
DIGITAL MEDIA PLAYBACK
| Specification | Details |
|---|---|
| Audio Playback via CD | MP3, WMA, AAC, CD Audio Playback |
| Audio Playback via DVD | AAC, MP3, WMA |
| Audio Playback via USB | MP3, WMA, AAC, WAV (Hi-Res), FLAC (Hi-Res) |
| Audio Video Playback via CD-R/CD-RW | AVI, DivX, DVD Video Playback |
| Audio Video Playback via DVD-R/RSL/-RDL/DVD-RW | AVI, DivX, DVD Video Playback |
| Audio Video Playback via USB | .avi, .mpg/.mpeg, .divx, .mp4, .3gp, .mkv, .mov, .flv, .wmv/.asf, .m4v, .ts, .m2ts, .mts, H.263, H.264 |
| Image Display via USB | JPEG, PNG, BMP |
AUDIO
| Specification | Details |
|---|---|
| Advanced Sound Retriever | Mode-1 / Mode-2 / Off |
| Audio Bass Boost | Yes |
| Auto EQ | Yes (CD-MC20 Microphone sold separately) |
| Automatic Level Control | Mode-1 / Mode-2 / Off |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Network Mode | HPF / Band Pass / LPF |
| Crossover Standard Mode | HPF / LPF |
| Customizable Graphic Equalizer | 13 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Listening Position Selector | Yes |
| Loudness | High / Mid / Low / Off |
| Speaker Output | 4-ch |
| Spectrum Analyzer | True |
| Subwoofer Control | Yes |
| Time Alignment | Auto / Manual |
EXPANDABILITY
| Specification | Details |
|---|---|

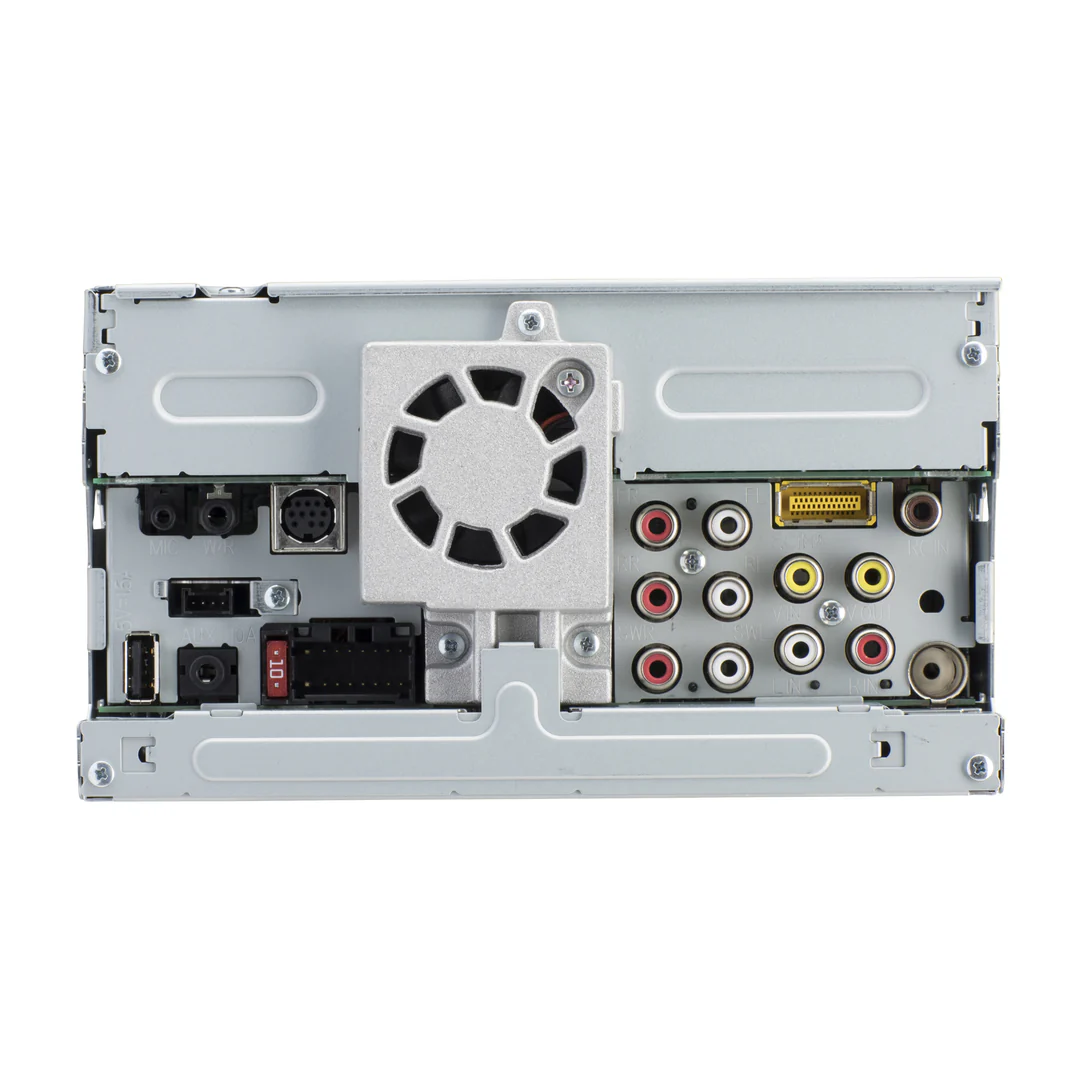

| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack), Input 3 – A/V or 2nd Camera |
| OEM Integration | iDatalink Maestro RR |
| Parking Assist Lines | Yes |
| RCA-Video-Output | Yes |
| USB | Single Rear Type-A (5 V, 1.5 A) |
| USB Direct Control for iPhone® | 5s and newer |
About The Product
This is a Pioneer Reconditioned product, including a 90-day limited warranty. The AVH-1550NEX is a multimedia DVD receiver with connectivity solutions designed for iPhone® 5 or newer. It features a clear resistive WVGA display with LED backlight and a fixed monitor mechanism. Audio features include a built-in amplifier, 13-band graphic equalizer, 24-bit DA converter, automatic time alignment, subwoofer control, and a crossover option for Standard or Network Mode. It also supports SiriusXM-Ready, built-in Bluetooth®, Amazon Alexa (via Pioneer Vozsis app), Apple CarPlay®, USB direct control for iPhone®, and much more.
Back Up Camera Input (2-Camera)
Add a rear-view camera and the system automatically switches to a full-screen image when the car is placed in reverse. The display returns to the last source when taken out of reverse. Rear visibility systems are required under federal regulations for certain vehicles.

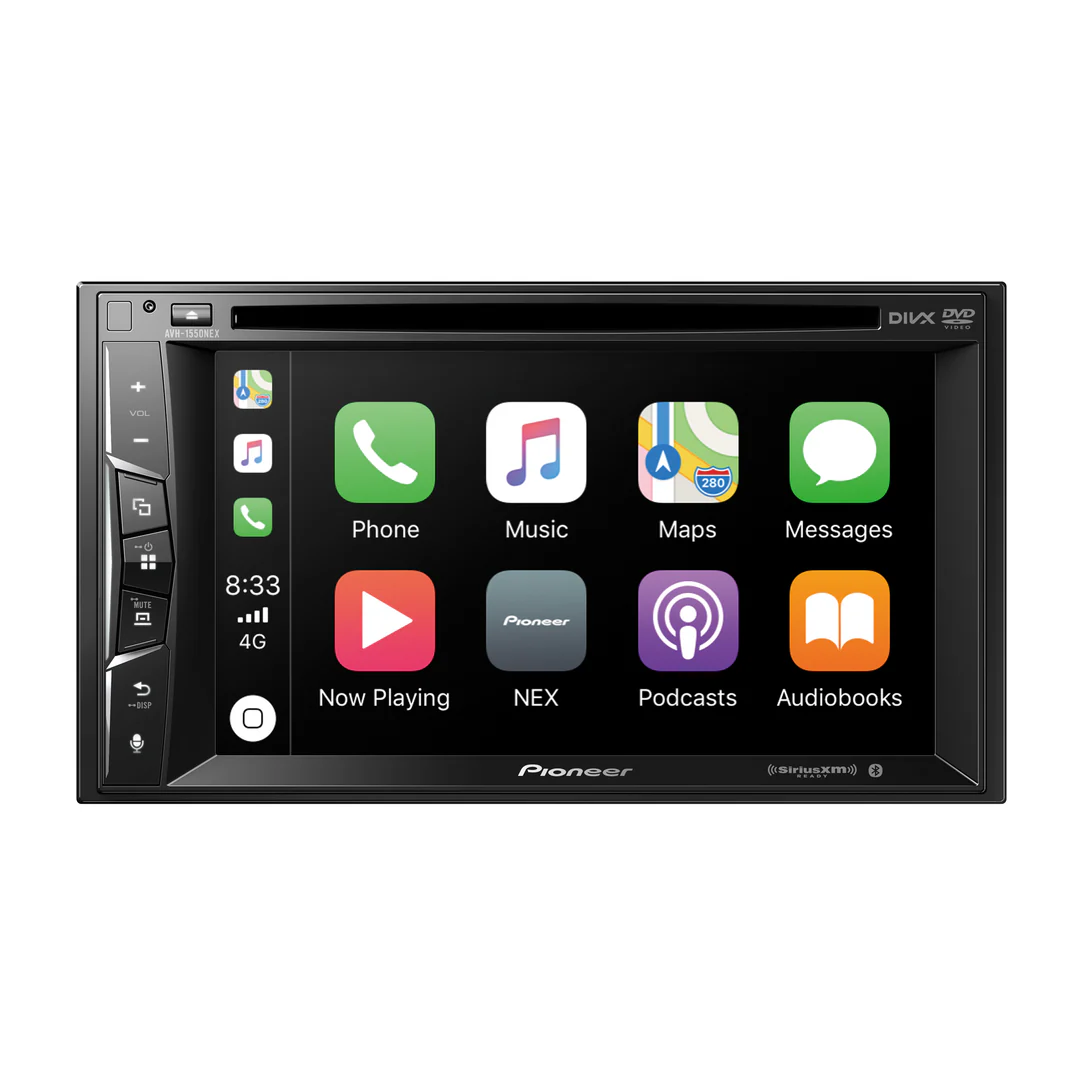

Apple CarPlay
Apple CarPlay allows iPhone® users to make calls, use Maps, listen to music, and send/receive messages using voice or touch. Requires iPhone 5 or newer with the latest iOS.
NEX Stay Connected
Connect a compatible iOS or Android™ smartphone for a connected experience. Built-in Bluetooth® enables hands-free calling and audio streaming with HFP XX Wideband Speech capability. AVRCP support allows browsing and selecting media stored on your smartphone.
Sound Quality for All
Features like built-in EQ, Time Alignment, 13-Band Graphic Equalizer with swipe settings, and high/low pass crossover allow you to tailor the listening experience to your vehicle and preferences.
Pandora With Touchscreen
Control Pandora internet radio directly from the receiver. Give tracks thumbs up/down, bookmark songs, switch stations, and view full track data and album art. Compatible with iOS and Android devices that support Bluetooth SPP.
iDataLink Maestro (RR)
Retain factory features and expand connectivity using iDataLink Maestro RR (sold separately). Supports steering wheel controls, media player, hands-free phone, voice commands, satellite radio, and secondary display control.
Siri® Eyes Free – Touchscreen
Touch the NEX touchscreen and Siri listens through the external microphone, responding over vehicle speakers. Helps you keep your eyes on the road. (For select iPhones.)
Bluetooth
Hands-free phone calls and streaming audio are supported via the included external microphone.
FLAC Playback
Supports high-res FLAC playback up to 192kHz/24-bit, delivering CD-quality output in your vehicle without conversion.
Auto Time Alignment and Auto EQ
Automatically estimates speaker delays and adjusts output timing for perfect sync. Auto EQ monitors acoustics with a microphone and fine-tunes all frequency bandwidths and digital parametric equalization in under 6.5 minutes.
Time Alignment
Adjust delay and synchronize each speaker to correct phase mismatches from your listening position. No acoustics degree required—simply enter speaker distances.
Vozsis with Amazon Alexa – iOS Only
Pioneer’s iOS app allows Amazon Alexa voice control through the WebLink-enabled receiver.
WVGA Touchscreen (Clear Resistive)
Enjoy a clear resistive WVGA touchscreen display for smooth operation and access to all of the receiver’s features.
