Description
Pioneer AVH‑120BT

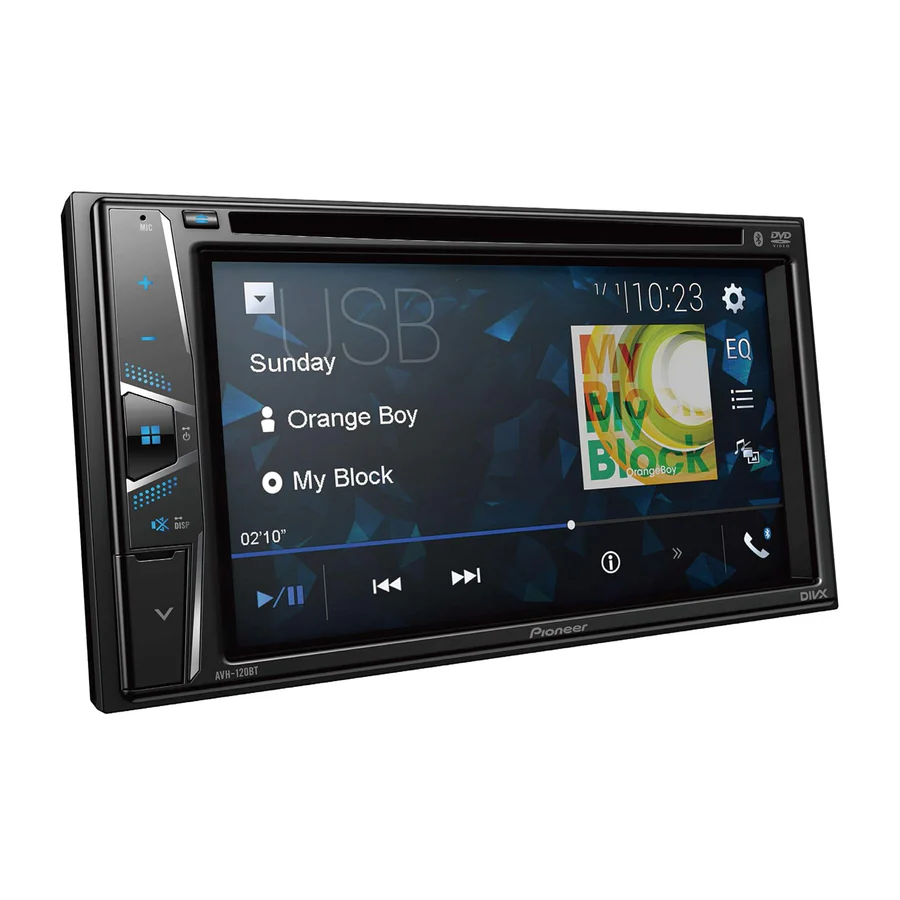

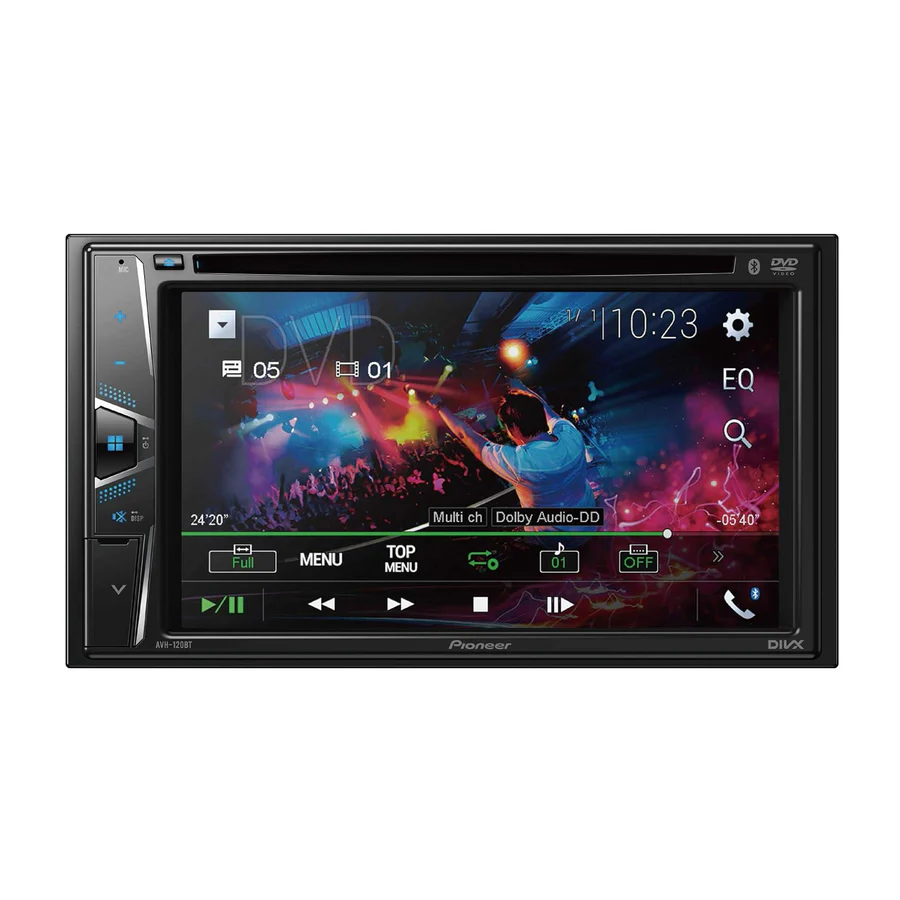

The Pioneer AVH‑120BT is a double‑DIN multimedia receiver featuring a 6.2″ touchscreen display, built‑in Bluetooth® for hands‑free calling and wireless audio streaming, USB and AUX inputs for media playback, a dedicated backup‑camera input, and dual RCA pre‑outs for system expansion
Specifications
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Continuous Power Output | 22 W x 4-Channel |
| Load Impedance Allowance | 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output | 50 W x 4-ch 4 ohm, 50 W x 2-ch 4 ohm, 70 W x 1-ch (subwoofer) 2 Ohm |
| RCA Preamp Outputs | 4-ch |
| RCA Preout Voltage | 2V |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
GENERAL
| Feature | Specification |
|---|---|
| Detachable Face Security | Fixed |
| Multi-Language Display | English, French, Spanish |
| Steering Wheel Control Ready | Yes |
DISPLAY
| Feature | Specification |
|---|---|
| Back Light | LED |
| Brightness Control | Yes |
| Color Customization | Fixed Color – Blue |
| Device (Non-DIN/Modular Unit) | 2-DIN |
| Dimmer | Automatic with vehicle illumination, Timer Controlled, Manual |
| Display Off Mode | Yes |
| Monitor Mechanism | Fixed |
| Resolution | WVGA (800 x 480) |
| Screen Size/Aspect Ratio | 6.2″/16:9 |
| Touch Screen | Resistive |
NAVIGATION
| Feature | Specification |
|---|---|
| Map Data | N/A |
| Map Provider | N/A |
| Point of Interest | N/A |
BLUETOOTH
| Feature | Specification |
|---|---|
| Advanced Audio Distribution Profile (A2DP) | Yes |
| AVRCP | 1.6 |
| Built-in Bluetooth® | Yes |
| Hands-Free | Yes |
| Microphone Included | Integrated |
| Phone Registration | 1-phone |
| Serial Port Profile (SPP) | Yes |
TUNER
| Feature | Specification |
|---|---|
| Best Station Memory | Yes |
| Local Seek Tuning | Yes |
| Presets | 18 FM, 6 AM |
| RDS | Yes |
INTEGRATION
| Feature | Specification |
|---|---|
| Mobile Operating System | Android, Apple iOS |
| Music Playback (MTP) | Yes |
| Pandora® | Bluetooth Audio Source |
| Spotify | Bluetooth Audio Source |
DIGITAL MEDIA PLAYBACK
| Feature | Specification |
|---|---|
| Audio Playback via USB | MP3, WMA, AAC, WAV (Hi-Res) |
| Audio Video Playback via DVD-R/RSL/-RDL/DVD-RW | AVI, DVD, DivX Audio Video Playback |
| Image Display via USB | JPEG, BMP, DivX, MPEG |
AUDIO
| Feature | Specification |
|---|---|
| Audio Bass Boost | Yes |
| Auto EQ (CD-MC20 Microphone sold separately) | Yes |
| Balance | Yes |
| Built-in Amplifier | MOSFET 50 W x 4 |
| Crossover Standard Mode | HPF/LPF |
| Customizable Graphic Equalizer | 7 Band |
| DA Converter | 24 Bit |
| Digital Signal Processor | Built In |
| Dynamic Bass Enhancer | Off/Low/High |
| Easy EQ (EEQ) Preset Equalizer | Yes |
| Listening Position Selector | Yes |
| Loudness | High/Mid/Low/Off |
| Speaker Output | 4-ch |
| Subwoofer Control | Yes |
EXPANDABILITY
| Feature | Specification |
|---|---|
| Audio Video Inputs | Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack) |
| USB | Single Rear Type-A (5V, 0.5 A) |
| USB Direct Control for iPhone® | 5s and newer |
| Firmware Upgradability | Yes |
