Description

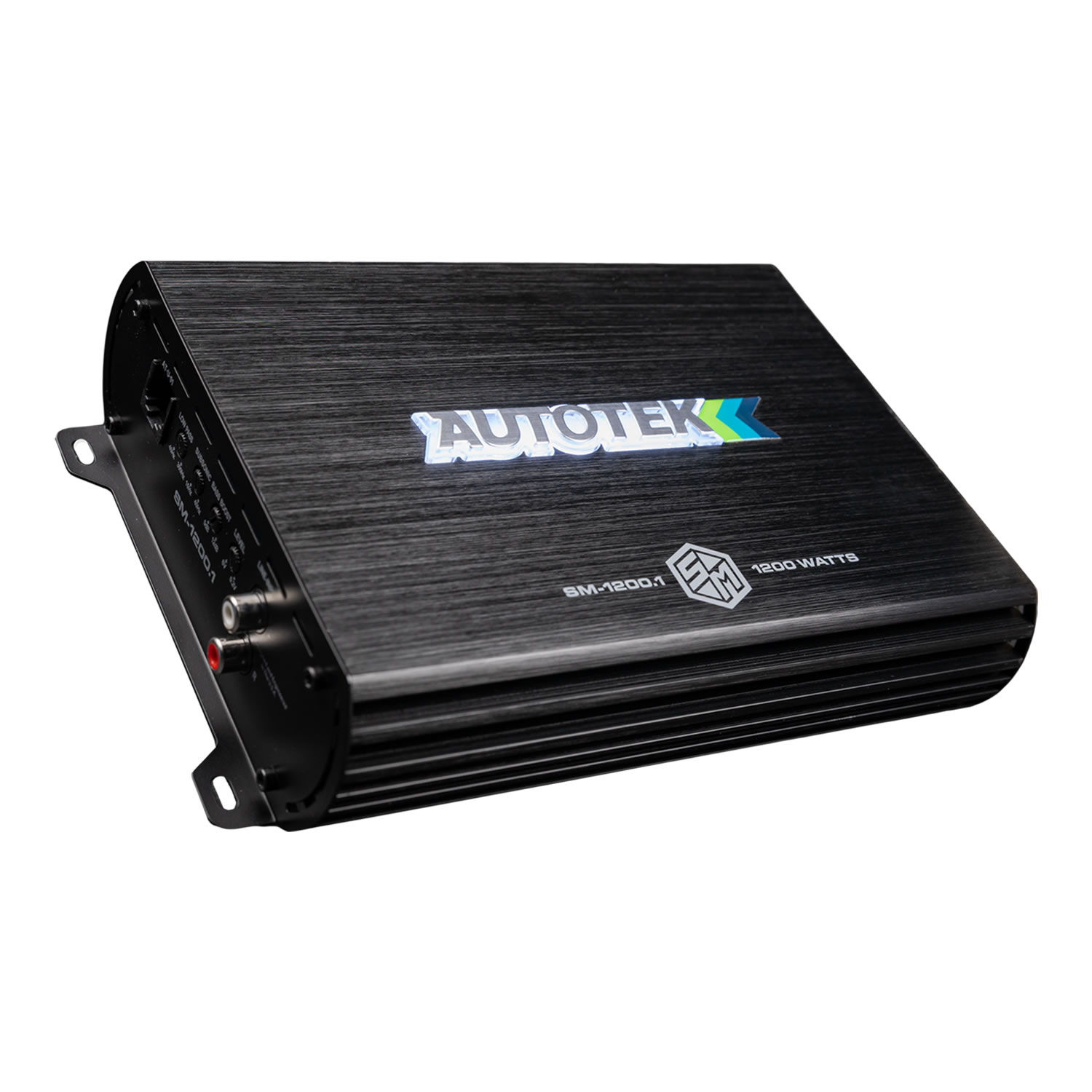

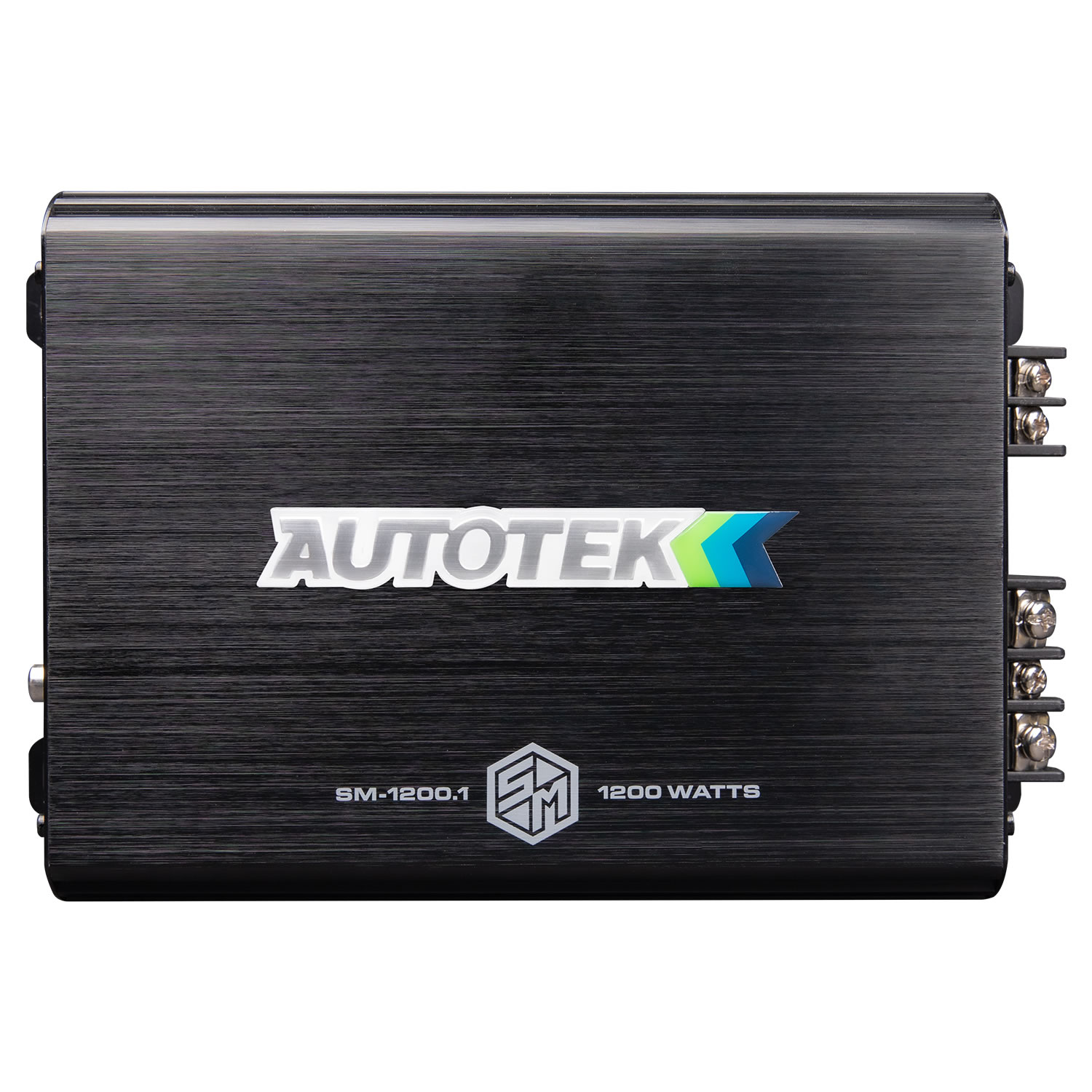

Autotek SM-1200.1
Details & Specs
| Category | Specification |
|---|---|
| Type | Amplifier |
| Brand | Autotek |
| Series | STREET MACHINE |
| Category | Mobile |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Amp Class | Class A/B |
| Total Channels | 1 |
| Max Power | 1200 Watts |
| Power @ 2 Ohms | 1 × 1200 Watts |
| Power @ 4 Ohms | 1 × 600 Watts |

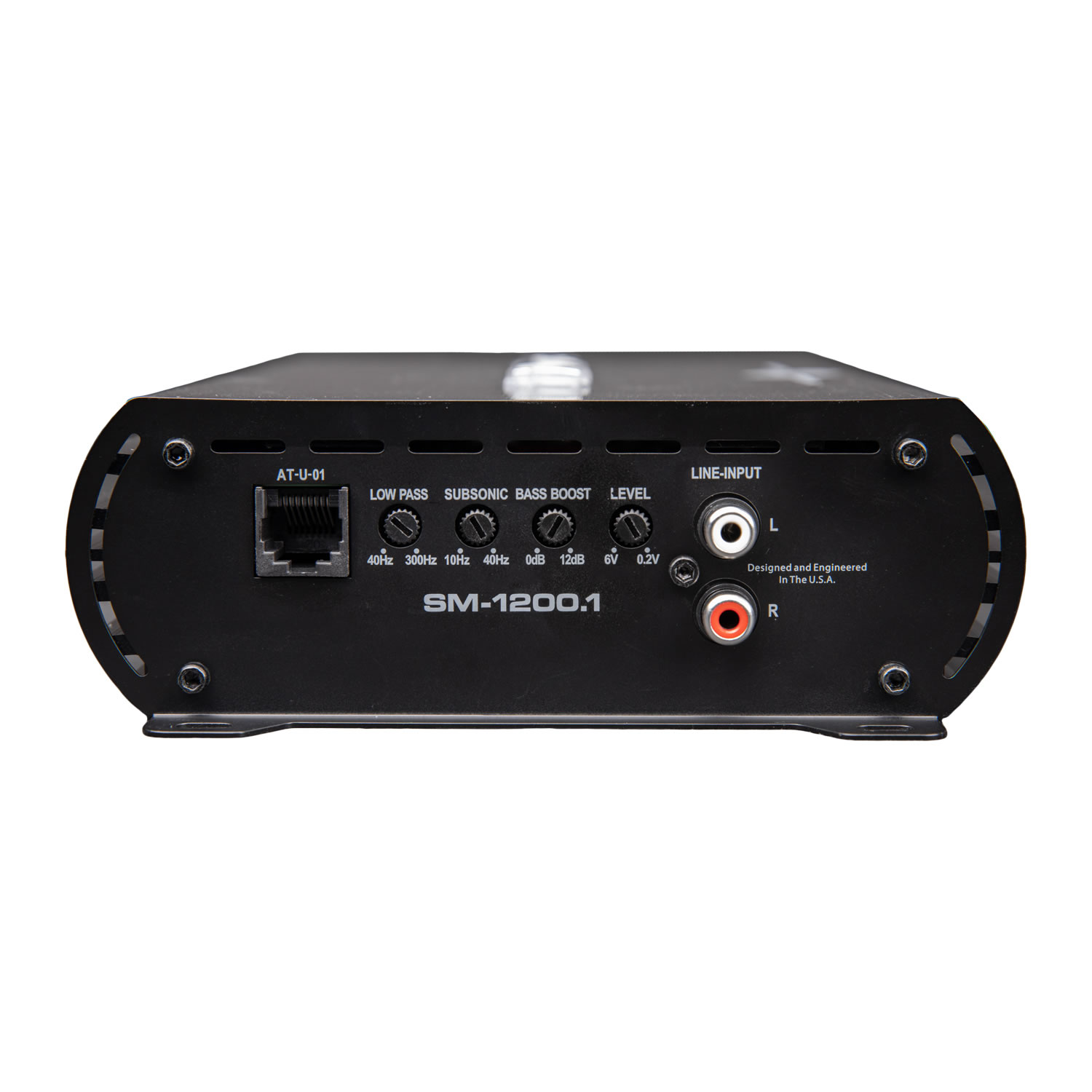

| Crossover | Variable Electronic 12dB/Octave |
| Low Pass Crossover | 40Hz – 300Hz |
| Tone Control / EQ | Built-in Bass Control |
| Bass Boost | 0 – 12dB |
| Subsonic Filter | 10Hz – 40Hz |
| Variable Voltage | 0.2 – 6V |
| Signal to Noise Ratio | >100dB |
| Frequency Response | 10Hz – 300Hz |
| Total Harmonic Distortion (THD) | < 0.5% |
| Speaker Level Inputs | RCA |

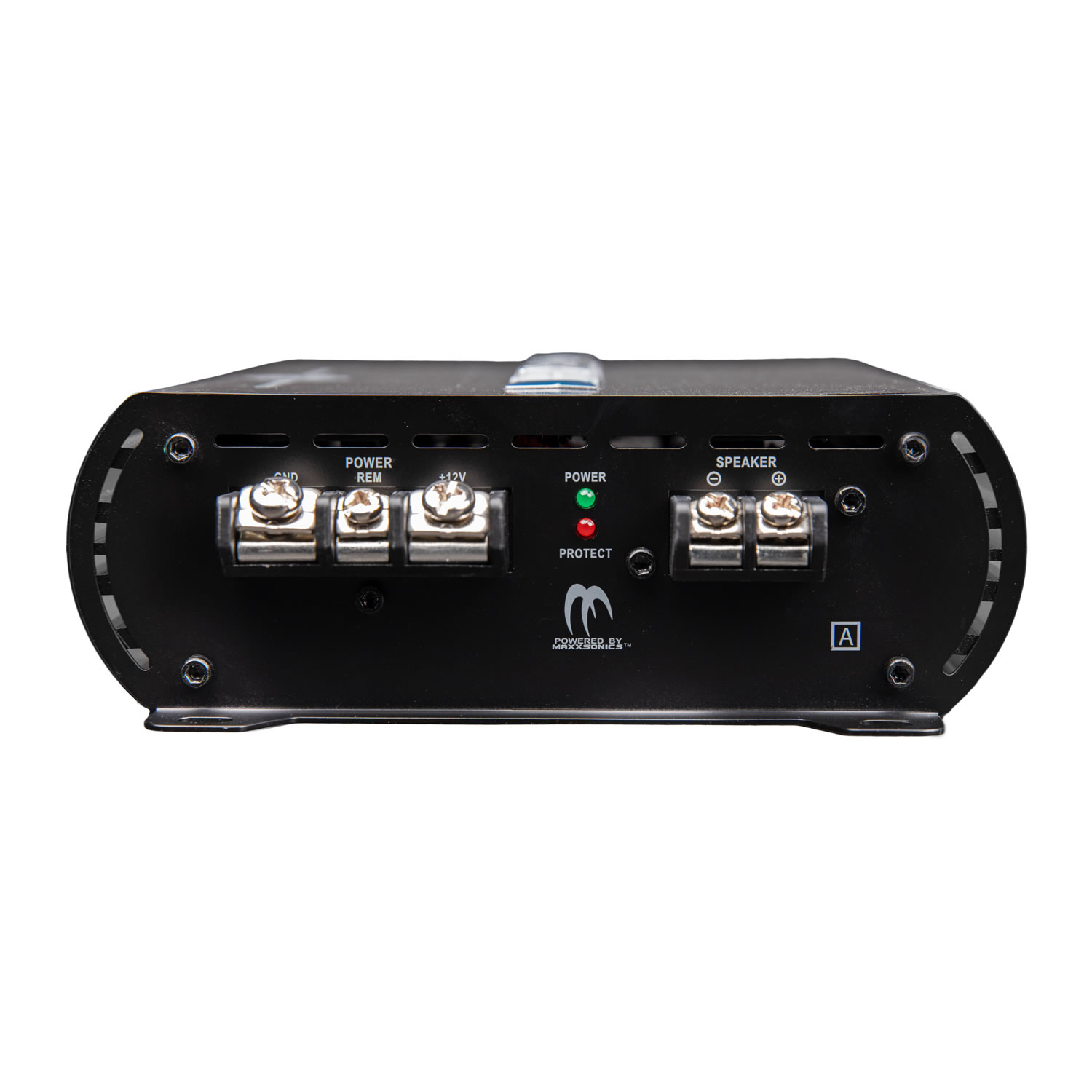

| Power Terminal | 4 GA (12V/GND) |
| Speaker Terminal Wire Gauge | 8 GA |
| Fusing | External 60A |
Features & Benefits
| Feature | Description |
|---|---|
| Low Noise Preamplifier Circuit | Ensures low-voltage input signal is amplified with minimal distortion |
| RCA Inputs | High-quality RCA connections for clean signal transfer and reduced interference |
| Operation Mode | Mono only |
| Crossover Type | Fully adjustable 12dB crossovers |
| Electronic Equalizer | Onboard electronic crossover for tuning speaker and subwoofer frequencies |
| Class / Topology | Class A/B design for high sound quality and efficient power delivery |
| Output Device Technology | Pro-Fi™ high-speed MOSFETs for improved power efficiency and low distortion |
| Heat Sink | QTD (Quick Thermal Dispersion) aluminum heatsink for effective cooling |
| Power Supply | High-energy PWM (Pulse Width Modulated) power supply for stable performance |
| Output Connections | Nickel-plated brass terminals for secure and corrosion-resistant connections |
| Connection Type | Screw-down connectors for quick and secure installation |
| LED Protection System | Illuminated indicators for overload and speaker short-circuit protection |

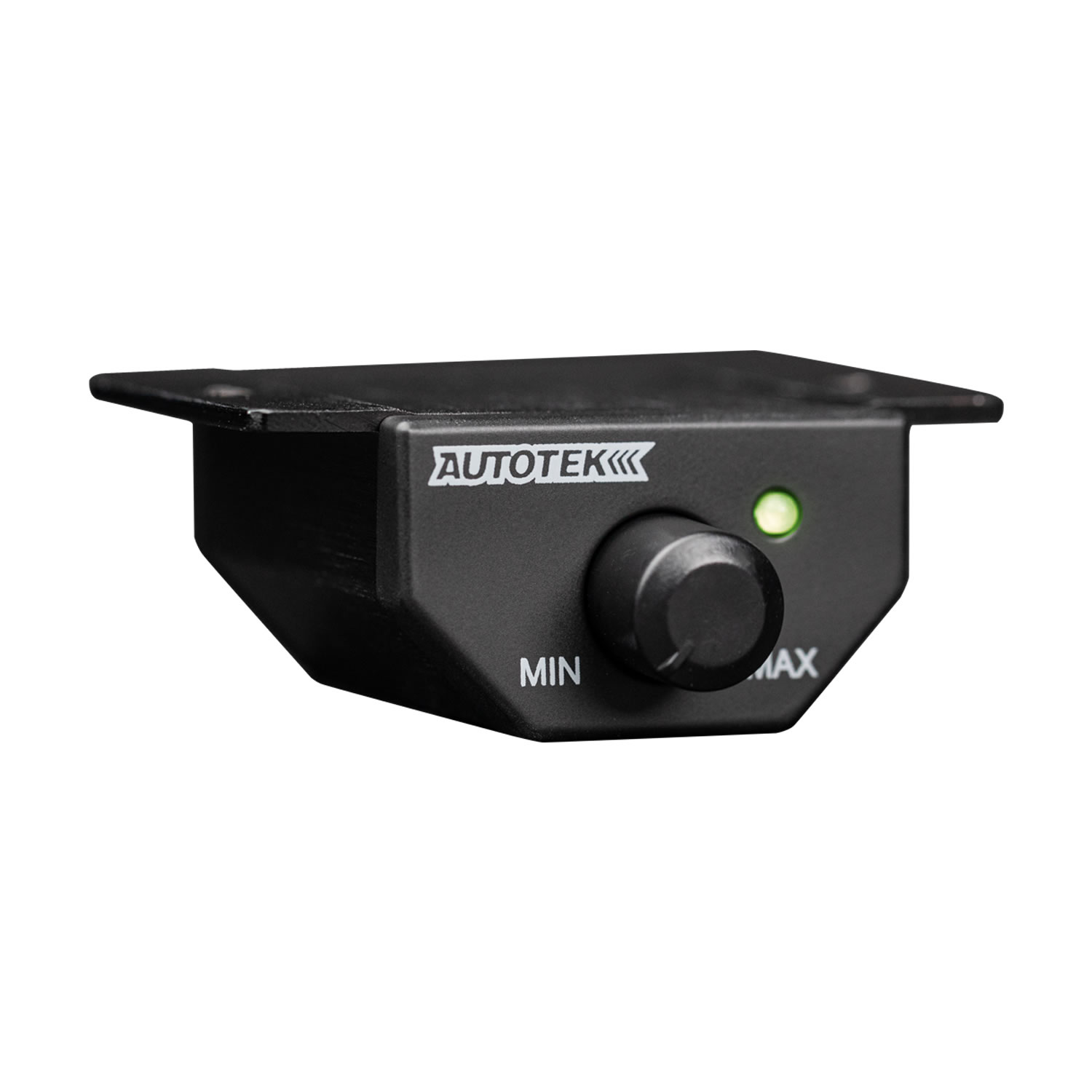

| Bass Remote Included | Wired remote control for adjusting bass levels from inside the vehicle |
Overview
Autotek SM-1200.1 STREET MACHINE amplifier series with QTD Technology delivers 1200 watts to subwoofers and features built-in electronic crossovers and includes a bass remote.
