Description

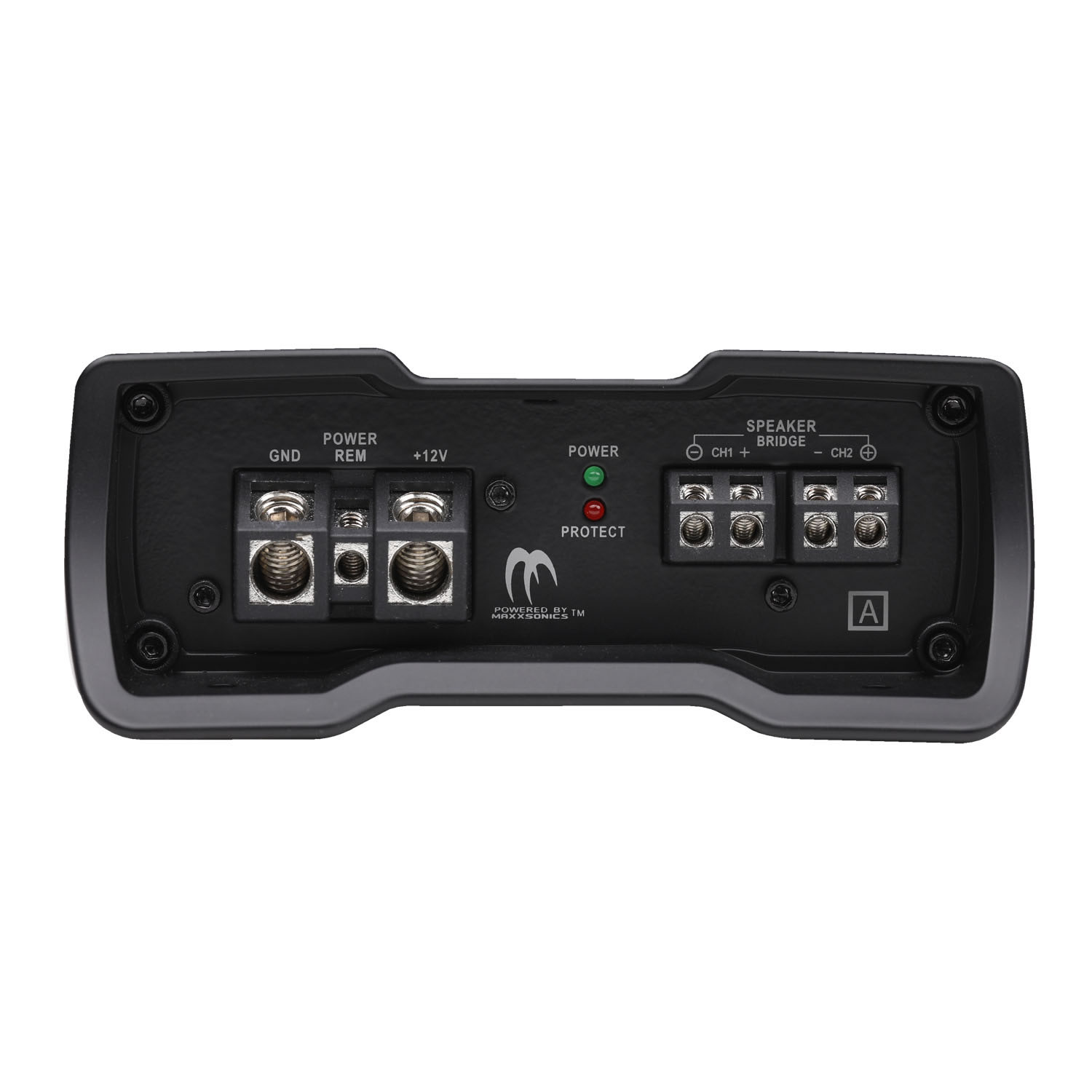

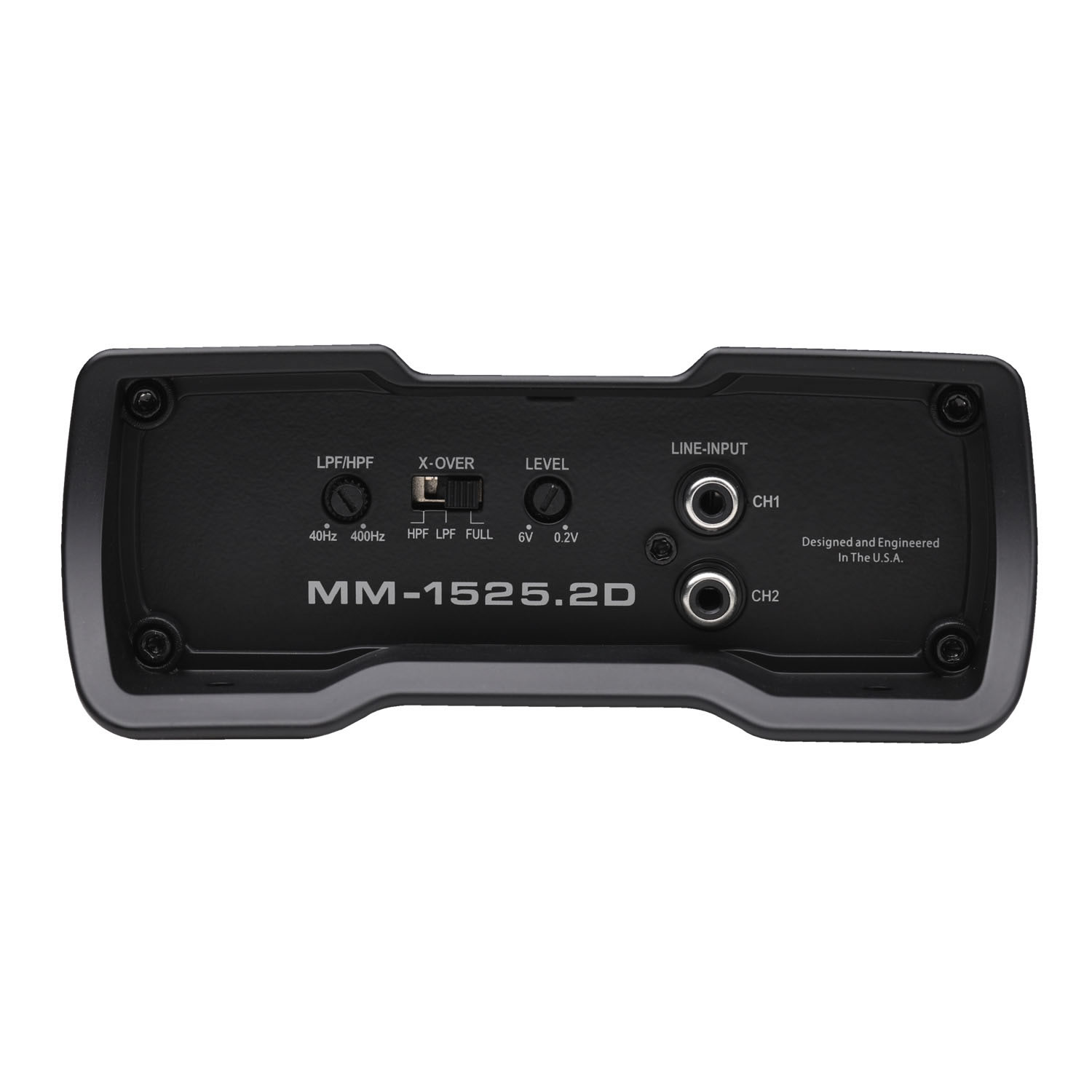

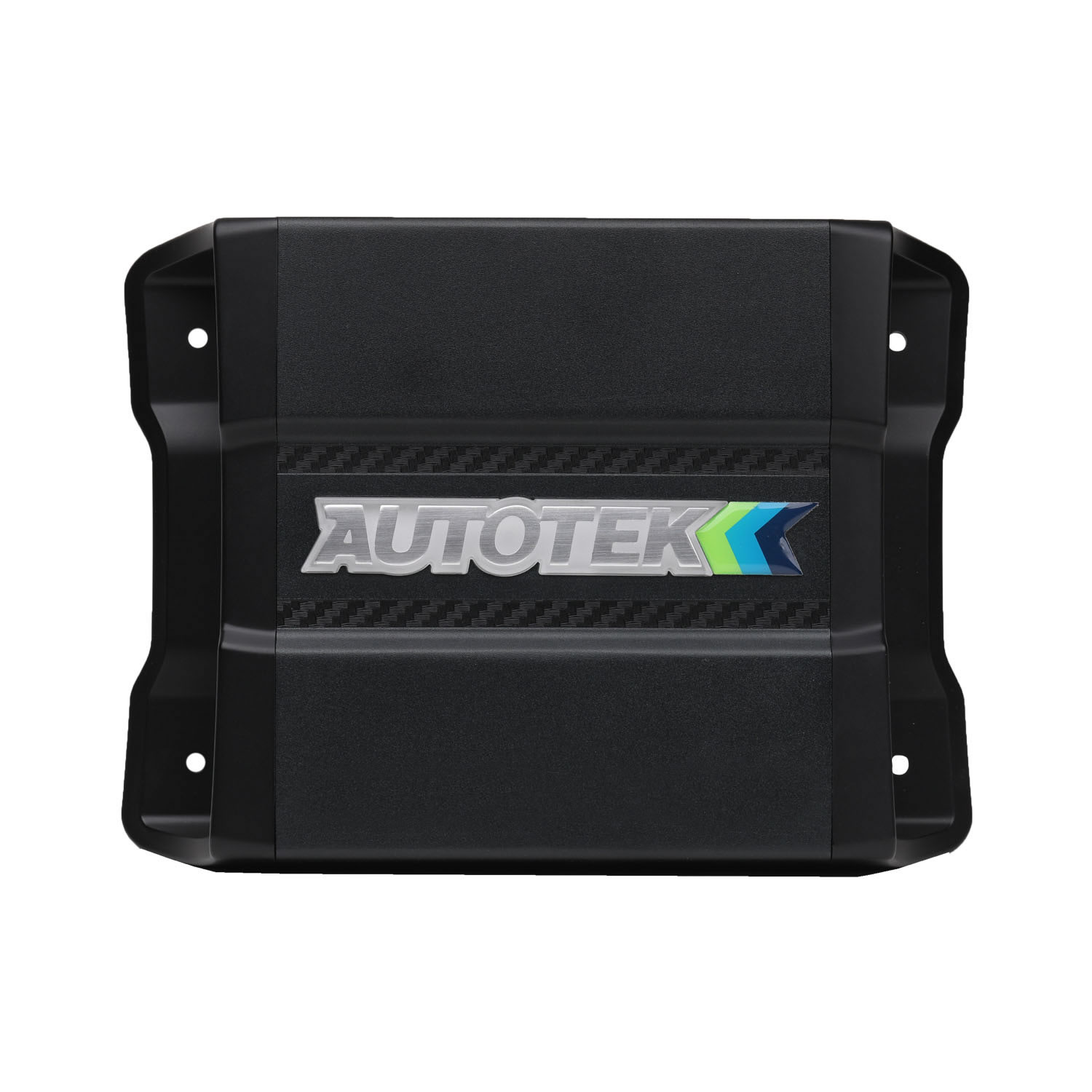

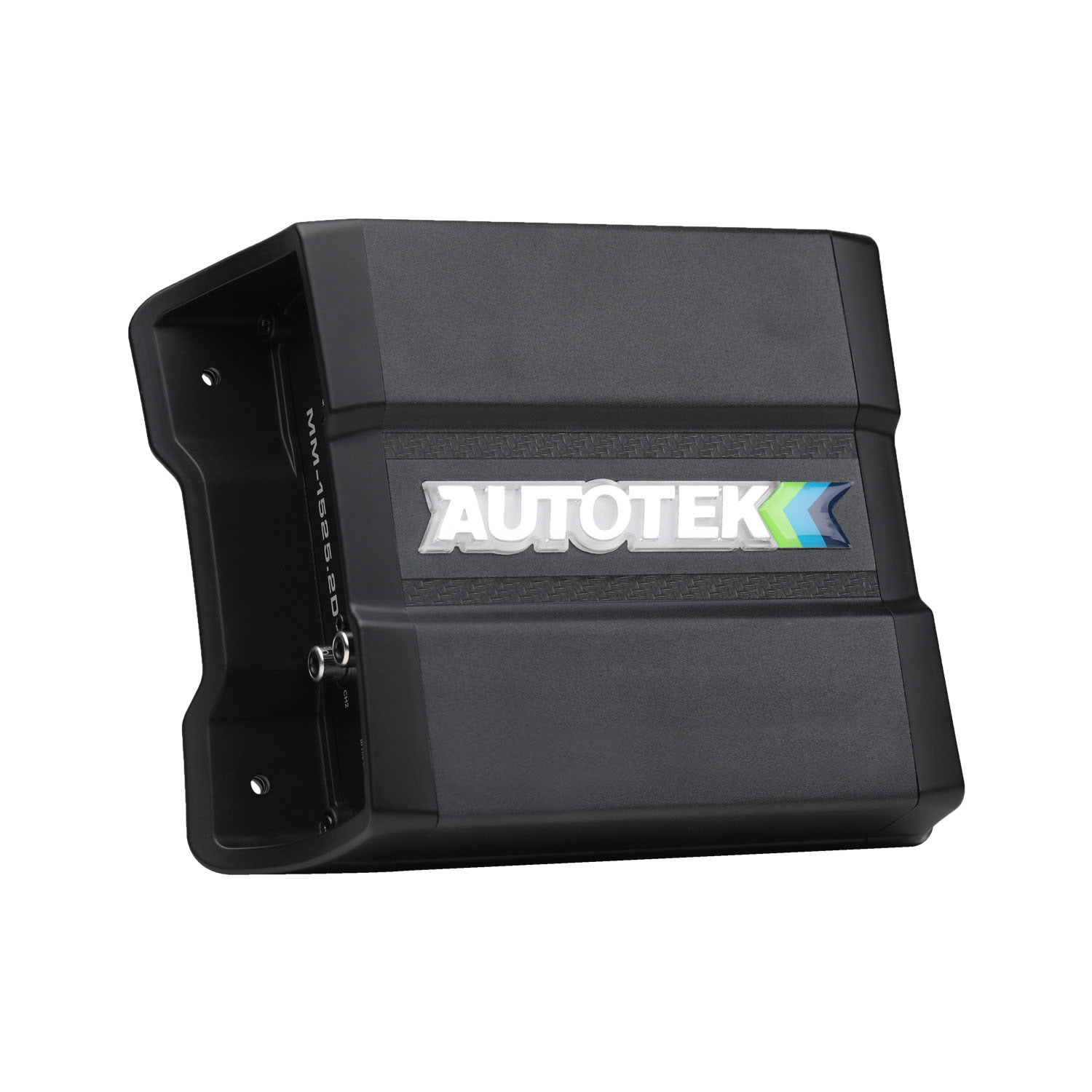

Autotek MM-1525.2D
Details & Specs
| Category | Specification |
|---|---|
| Type | Amplifier |
| Brand | Autotek |
| Series | Compact MEAN MACHINE |
| Category | Mobile |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Amp Class | Class D |
| Total Channels | 2 |
| Max Power | 1500 Watts |
| Power @ 2 Ohms | 2 × 750 Watts |
| Power @ 4 Ohms | 2 × 375 Watts |
| Mono Bridged @ 4 Ohms | 1 × 1500 Watts |
| Crossover | Variable Electronic 12dB/Octave |
| High Pass Crossover | 40Hz – 400Hz |
| Low Pass Crossover | 40Hz – 400Hz |
| Tone Control / EQ | Built-in Bass Control |
| Variable Voltage | 0.2 – 6V |
| Frequency Response | 10Hz – 22kHz |
| Total Harmonic Distortion (THD) | < 0.05% |
| Speaker Level Inputs | RCA |
| Pre-amp Outputs | RCA |
| Power Terminal | 4 AWG (12V/GND) |
| Speaker Terminal Wire Gauge | 12 AWG |
| Fusing | External 50A |
Features & Benefits
| Feature | Description |
|---|---|
| Low Noise Preamplifier Circuit | Ensures maximum low-voltage signal input with minimal distortion during amplification |
| RCA Inputs | High-quality RCA inputs and outputs for superior sound connection |
| Operation Mode | Two-channel, full-range, bridgeable (can operate in stereo or bridged mono mode) |
| Crossover Type | Onboard electronic crossover |
| Electronic Equalizer | Allows precise tuning of frequencies for speakers and subwoofers |
| Class / Topology | Efficient Class D design for high power output in a compact size |
| Output Device Technology | TCID (Twin Coil Isolation Design) and PRO-FI High-Speed MOSFETs for powerful output with low distortion |
| Heat Sink | Heavy-duty aluminum alloy heatsink with illuminated logo |
| Power Supply | High-energy PWM (Pulse Width Modulated) for efficient and stable power delivery |
| Output Connections | Nickel-plated brass terminals with hex screws for secure and corrosion-resistant connections |
| Connection Type | Angled Allen key connectors for easy and secure installation |
| Full-Range RCA Outputs | Allows signal pass-through to additional amplifiers, reducing wiring and noise |
| LED Protection System | Built-in overload and short-circuit protection with indicator lights |
Overview
Autotek MEAN MACHINE compact series of car audio amplifiers bring extreme power with PRO-FI™ High Speed MOSFETS and high sound quality with minimum distortion levels. The MM-1525.2D features 1500 watts of power in a bridgeable 2 channel Class D amplifier. The Class D technology provides extreme power in a smaller footprint. The amplifier can be run from the “output” RCA connections which minimize the need for additional cables running the length of the vehicle.
