Description
RockFord Fosgate 1130-72997-01
The 1130‑72997‑01 is a replacement power‑and‑speaker wiring harness kit designed for use with the PMX-HD9813 digital media receiver (for 1998‑2013 Harley-Davidson motorcycles). It is intended for installations where the original Harley‑Davidson harness has been cut, damaged, or when adding/replacing speakers (front or rear). This harness kit restores full electrical connectivity and speaker output to the PMX‑HD9813 unit.
About The Product

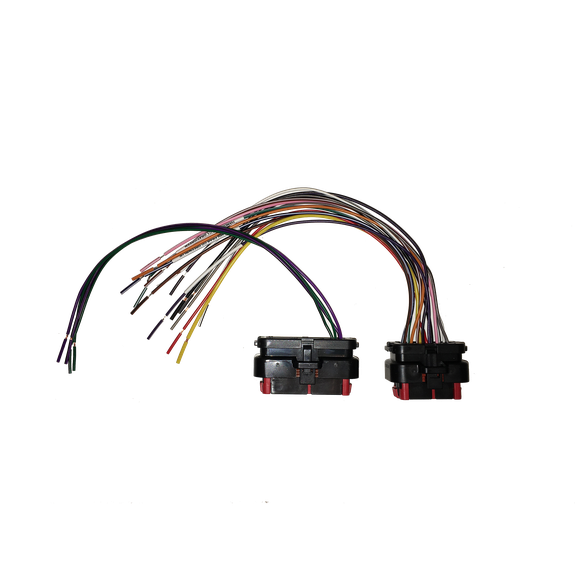

Replacement harnesses to operate the PMX-HD9813 source unit. To be used for dealer displays or for installations where the factory Harley-Davidson® harnesses have been cut off or damaged beyond repair.

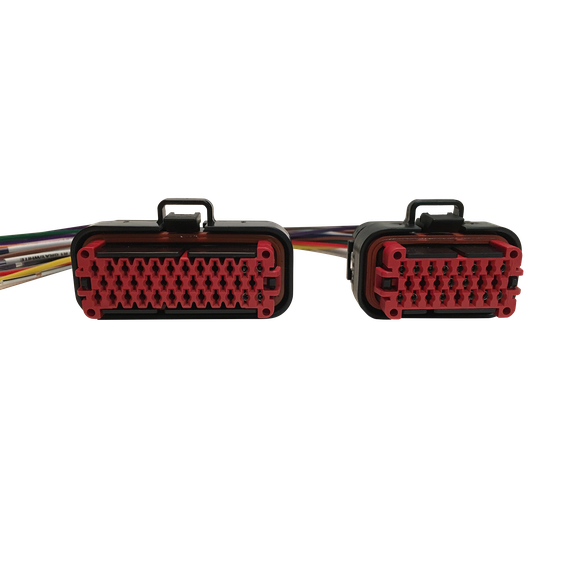

The SMALL connector harness contains power, ground, ACC, illumination, and front speaker outputs. The LARGE connector harness contains rear speaker outputs. Harnesses are sold as a pair. We are providing these replacement harnesses for instances such as:
– Dealers with product demo displays.
– Customers with aftermarket radios where the OEM plug(s) have been cut-off.
– Customers adding rear speakers to a motortcycle that did not have rear speakers.
he PMX-HD9813 source unit utilizes the factory wiring and therefore wiring harnesses are not supplied.
POWER
B+ (12v) Yellow
Switched (+12v) Red
Ground (-) Black
FRONT SPEAKERS
LEFT (+) White
LEFT (-) White/Black
RIGHT (+) Grey
RIGHT (-) Grey/Black
REAR SPEAKERS
LEFT (+) Green
LEFT (-) Green/Black
RIGHT (+) Purple
RIGHT (-) Purple/Black
