Rockford Fosgate 1040-60814-01

Name: Rockford Fosgate 1040-60814-01
SKU: 1040-60814-01
Availability: InStock

SKU: 1040-60814-01

$12.99

Categories: Car Stereo Accessories, Other Tags: 1040‑60814‑01, car audio amp wiring accessory, compact amp power connector, Power Plug Type‑3, Rockford Fosgate power plug

Description

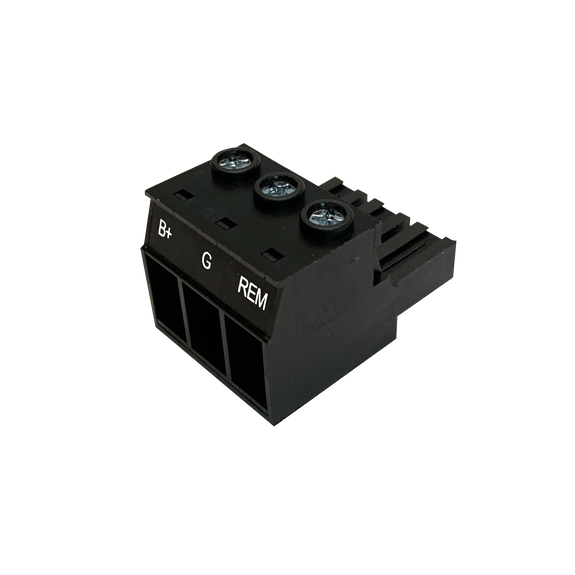

Power Plug Type-3 (Power Compact Amplifiers)

Features

Provides B+, GND, and REM power connections
Set screw requires 1/8" slotted screwdriver
Bare wire held in place by captive compression clamp

Description

Description

Rockford Fosgate 1040-60814-01

The 1040‑60814‑01 is a Power Plug (Type‑3) the main power‑input connector plug for select compact Rockford Fosgate “Power” series amplifiers.

Specifications

Specification	Value
Wire Termination	Compression Terminal
Max AWG Size	4 AWG
Terminal Type	Quick Disconnect

About The Product

Detachable power plug with connections for Battery (B+), Ground (G), and Remote Turn-On (REM). Secures bare wire using screw and captive compression clamp. For use with 2014 and newer compact Power T1000X5ad & TM1000X5ad amplifiers.

Reviews

There are no reviews yet.

Be the first to review “Rockford Fosgate 1040-60814-01”

Questions and Answers

Q1: What is the purpose of 1040‑60814‑01?

A1: It provides the essential power connections — Battery (B+), Ground (GND), and Remote turn‑on (REM) needed to power compatible Rockford Fosgate compact amplifiers.

Q2: Which amplifiers is it compatible with?

A2: It is compatible with 2014‑onward compact Power‑series amplifiers such as T1000X5ad and TM1000X5ad, and other similar compact amps.

Q3: What wire gauge can it accept?

A3: It supports up to 4 AWG for the power/ground wires.

Q4: How does wire termination work with this plug?

A4: The wires are secured via a captive compression clamp tightened by a set screw (requires a 1/8″ slotted screwdriver) no soldering needed.

Q5: Is the plug detachable?

A5: Yes it's a quick‑disconnect style plug, which helps in clean installation and easy removal if needed.
